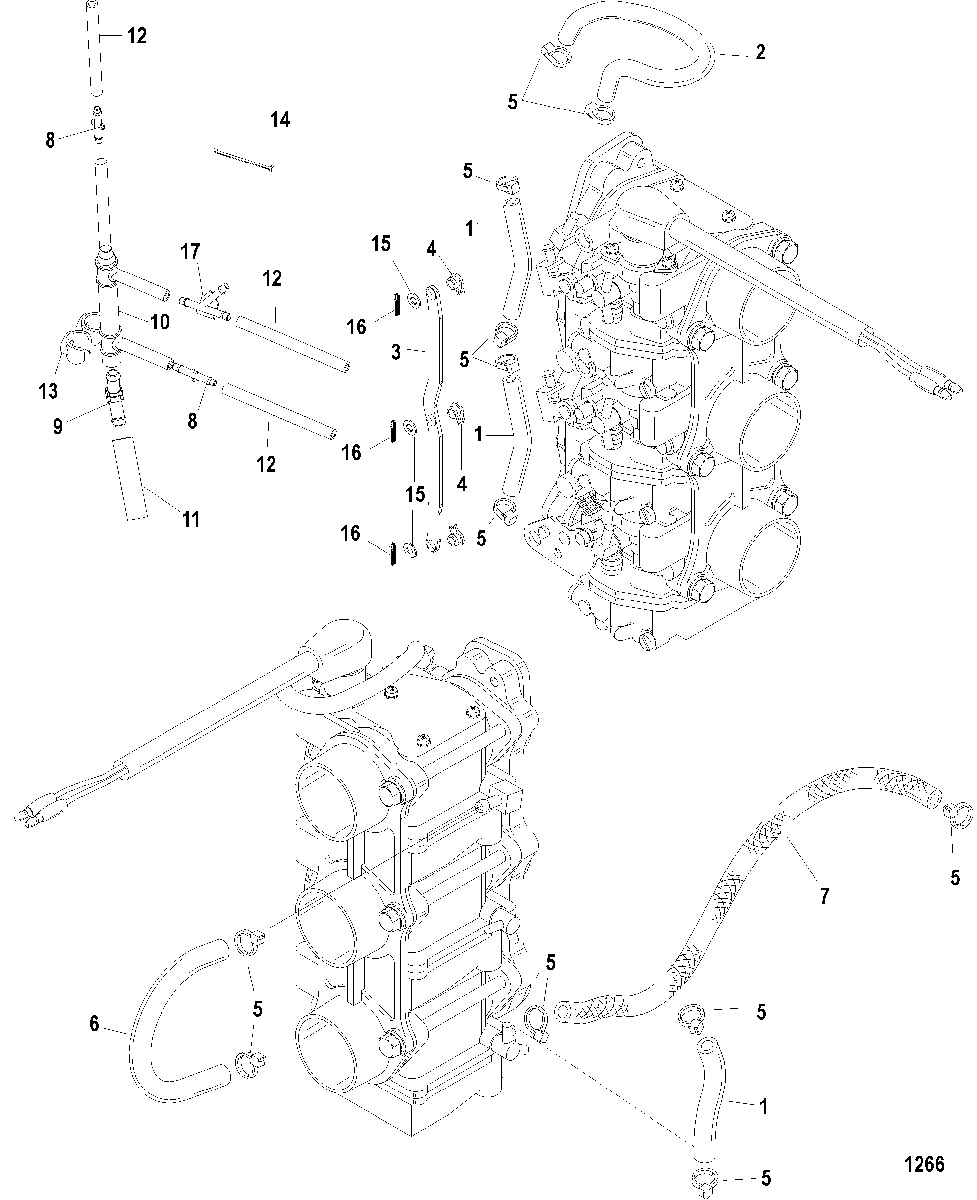

Fuel Lines для Mariner - 30 (4-STROKE) 0G760300 THRU 0T408999

  • №
    Артикул
    Название
  • 1
    32-856607 HOSE
    HOSE
  • 2
    32-856609 HOSE
    HOSE
  • 3
    856610 LINKAGE
    LINKAGE
  • 4
    23-803896 BUSHING
    BUSHING
  • 5
    54-8M0064024 TIE STRAP
    TIE STRAP
  • 6
    32-856613 HOSE
    HOSE
  • 7
    32-856611 HOSE and SLEEVE
    HOSE and SLEEVE
  • 8
    22-822771 CONNECTOR
    CONNECTOR
  • 9
    22-878404 FITTING, 45 Degree
    SN# 0T178500 & Up
    FITTING, 45 Degree
    SN# 0T178500 & Up
  • 10
    32-878423 HOSE
    SN# 0T178500 & Up
    HOSE
    SN# 0T178500 & Up
  • 11
    32-85682239 TUBING, (17.00 Inches Bulk) (Cut to 3-1/2 Inches)
    SN# 0T178500 & Up
    TUBING, (17.00 Inches Bulk) (Cut to 3-1/2 Inches)
    SN# 0T178500 & Up
  • 12
    32-82381310 HOSE (90MM)
    SN# 0T178500 & Up
    HOSE (90MM)
    SN# 0T178500 & Up
  • 13
    54-878425 CLIP
    SN# 0T178500 & Up
    CLIP
    SN# 0T178500 & Up
  • 14
    56762 TIE STRAP, (4.00 Inches)
    TIE STRAP, (4.00 Inches)
  • 15
    12-8542592 WASHER
    WASHER
  • 16
    18-880850 COTTER PIN
    COTTER PIN
  • 17
    22-878593 Y-CONNECTOR
    SN# 0T178500 & Up
    Y-CONNECTOR
    SN# 0T178500 & Up
