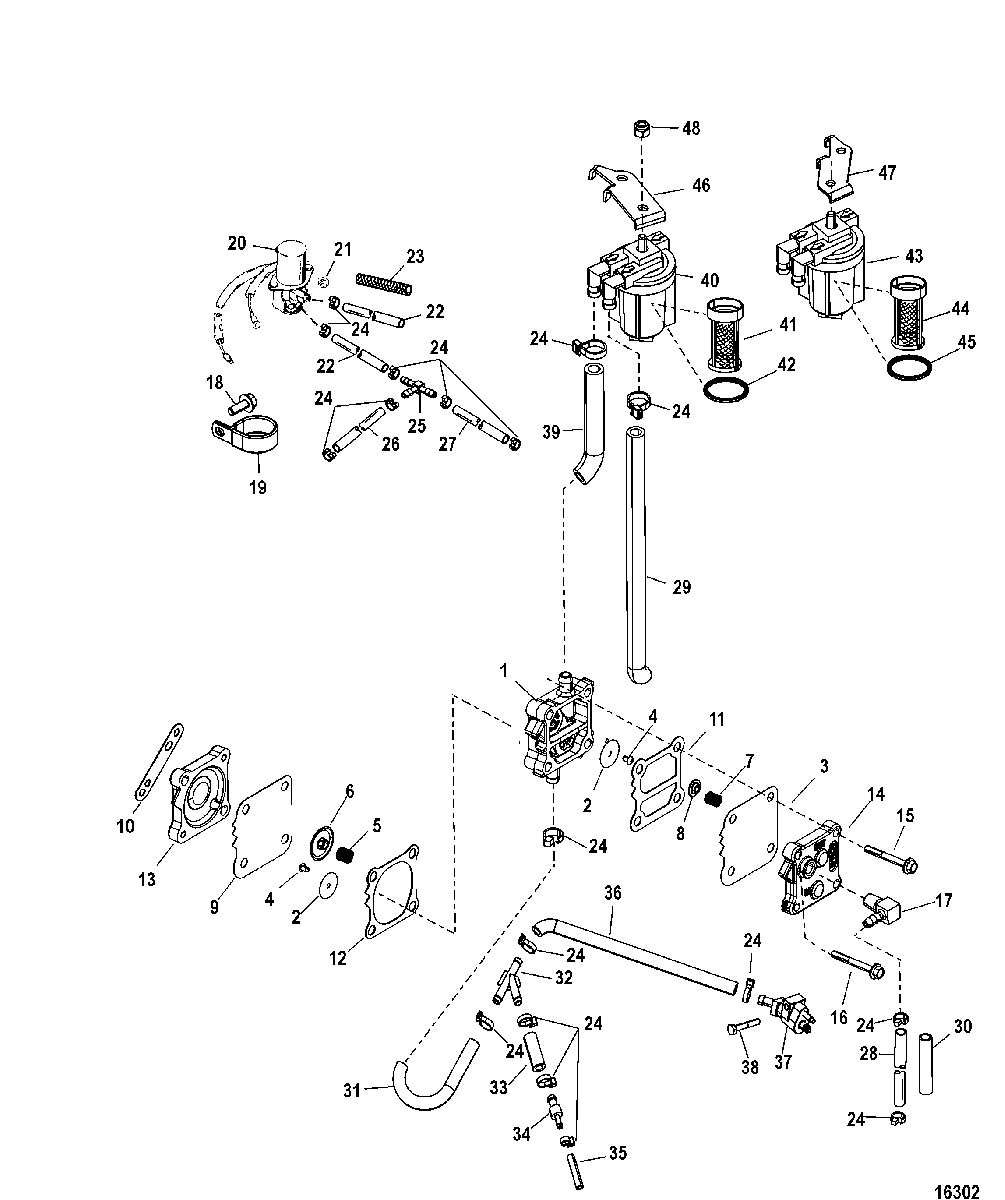

Fuel Pump(Electric) для Mariner - 30 (2 CYL.) 0P325500 & Up

  • №
    Артикул
    Название
  • -
    14360A78 PUMP KIT, Fuel
    PUMP KIT, Fuel
  • 1
    NSS NOT SOLD SEPARATE, Fuel Pump
    NOT SOLD SEPARATE, Fuel Pump
  • 2
    21-857005A1 DIAPHRAGM KIT
    DIAPHRAGM KIT
  • 3
    NSS NOT SOLD SEPARATE, Diaphragm
    NOT SOLD SEPARATE, Diaphragm
  • 4
    NSS NOT SOLD SEPARATE, Retainer
    NOT SOLD SEPARATE, Retainer
  • 5
    NSS NOT SOLD SEPARATE, Spring
    NOT SOLD SEPARATE, Spring
  • 6
    NSS NOT SOLD SEPARATE, Cap
    NOT SOLD SEPARATE, Cap
  • 7
    NSS NOT SOLD SEPARATE, Spring
    NOT SOLD SEPARATE, Spring
  • 8
    NSS NOT SOLD SEPARATE, Cap
    NOT SOLD SEPARATE, Cap
  • 9
    NSS NOT SOLD SEPARATE, Diaphragm
    NOT SOLD SEPARATE, Diaphragm
  • 10
    27-987691 GASKET
    GASKET
  • 11
    NSS NOT SOLD SEPARATE, Gasket-Boost
    NOT SOLD SEPARATE, Gasket-Boost
  • 12
    NSS NOT SOLD SEPARATE, Gasket-Pulse
    NOT SOLD SEPARATE, Gasket-Pulse
  • 13
    144303 BASE
    BASE
  • 14
    987752 PLATE
    PLATE
  • 15
    10-82104540 SCREW, (M5 x 40), Pump
    SCREW, (M5 x 40), Pump
  • 16
    10-82130050 SCREW, (M6 x 50), Pump to Crankcase
    SCREW, (M6 x 50), Pump to Crankcase
  • 17
    22-433351 CONNECTOR, 90 Degree - With Vibraseal
    CONNECTOR, 90 Degree - With Vibraseal
  • 18
    10-4006731 SCREW, (M6 x 16)
    SCREW, (M6 x 16)
  • 19
    54-633003 CLAMP
    CLAMP
  • 20
    89-819503A5 SOLENOID KIT, Enrichner Valve
    SOLENOID KIT, Enrichner Valve
  • 21
    25-F694504 GROMMET
    GROMMET
  • 22
    32-9912688 TUBING, (36.00 Inches Bulk) (Cut to 11.50 Inch Length)
    TUBING, (36.00 Inches Bulk) (Cut to 11.50 Inch Length)
  • 23
    23-82538115 SLEEVE, (.500 x 5.00)
    SLEEVE, (.500 x 5.00)
  • 24
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 24
    69355 TIE STRAP, (5.50 Inches)
    TIE STRAP, (5.50 Inches)
  • 25
    22-59169003 FITTING, Tee
    FITTING, Tee
  • 26
    32-892024122 TUBING, (240.00 Inches Bulk) (Cut to 4.00 Inch Length)
    TUBING, (240.00 Inches Bulk) (Cut to 4.00 Inch Length)
  • 27
    32-9912688 TUBING, (36.00 Inches Bulk) (Cut to 3.25 Inch Length)
    TUBING, (36.00 Inches Bulk) (Cut to 3.25 Inch Length)
  • 28
    32-9912878 HOSE, (.187) (26.00 Inches Bulk) (Cut to 3.25 Inch Length)
    HOSE, (.187) (26.00 Inches Bulk) (Cut to 3.25 Inch Length)
  • 29
    32-892040 HOSE, Molded
    HOSE, Molded
  • 30
    8507051 INSULATOR
    INSULATOR
  • 31
    32-892039 HOSE, Molded
    HOSE, Molded
  • 32
    22-818992 CONNECTOR
    CONNECTOR
  • 33
    32-8M0108349 TUBING, (.312) (70.00 Inches Bulk) (Cut to 1.50 Inch Length)
    TUBING, (.312) (70.00 Inches Bulk) (Cut to 1.50 Inch Length)
  • 34
    22-8189941 CHECK VALVE
    CHECK VALVE
  • 35
    32-82381335 TUBING, (15.00 Inches Bulk) (Cut to 1.50 Inch Length)
    TUBING, (15.00 Inches Bulk) (Cut to 1.50 Inch Length)
  • 36
    32-892040 HOSE, Molded
    HOSE, Molded
  • 37
    22-816856T01 CONNECTOR ASSEMBLY, Fuel
    CONNECTOR ASSEMBLY, Fuel
  • 38
    10-4000332 SCREW, (M6 x 35)
    SCREW, (M6 x 35)
  • 39
    32-892236 HOSE, Molded
    (Use with 35-889527T02 Fuel Filter)
    HOSE, Molded
    (Use with 35-889527T02 Fuel Filter)
  • 39
    32-892037 HOSE, Molded
    (Use with 35-891642T03 Fuel Filter)
    HOSE, Molded
    (Use with 35-891642T03 Fuel Filter)
  • 40
    35-889527T02 FILTER ASSEMBLY, Fuel
    SN# 1B153168 & Up
    FILTER ASSEMBLY, Fuel
    SN# 1B153168 & Up
  • 40
    35-889527T02 FILTER ASSEMBLY, Fuel
    SN# 0P366572 & Up
    FILTER ASSEMBLY, Fuel
    SN# 0P366572 & Up
  • 41
    35-896375Q01 FILTER KIT
    (Quicksilver Brand)
    FILTER KIT
    (Quicksilver Brand)
  • 41
    35-896375K01 FILTER KIT
    (Mercury Brand)
    FILTER KIT
    (Mercury Brand)
  • 42
    25-98277001 SEAL
    SEAL
  • 43
    35-8M0063726 FILTER ASSEMBLY, Fuel
    SN# 1B153167 & Below
    FILTER ASSEMBLY, Fuel
    SN# 1B153167 & Below
  • 43
    35-8M0063726 FILTER ASSEMBLY, Fuel
    SN# 0P366571 & Below
    FILTER ASSEMBLY, Fuel
    SN# 0P366571 & Below
  • 44
    35-87946Q04 FILTER KIT, Fuel
    (Quicksilver Brand)
    FILTER KIT, Fuel
    (Quicksilver Brand)
  • 44
    35-87946K04 FILTER KIT, Fuel
    (Mercury Brand)
    FILTER KIT, Fuel
    (Mercury Brand)
  • 45
    25-897536 SEAL
    SEAL
  • 46
    889625002 BRACKET
    (Use with 35-889527T02 Fuel Filter)
    BRACKET
    (Use with 35-889527T02 Fuel Filter)
  • 47
    822387 BRACKET
    (Use with 35-891642T03 Fuel Filter)
    BRACKET
    (Use with 35-891642T03 Fuel Filter)
  • 48
    11-401366 NUT, (M6) Stainless Steel
    NUT, (M6) Stainless Steel
  • -
    27-822420A94 GASKET SET, Engine Overhaul
    GASKET SET, Engine Overhaul
  • -
    808569T02 POWERHEAD ASSEMBLY
    30 HP
    POWERHEAD ASSEMBLY
    30 HP
  • -
    61-8M0063311 POWERHEAD ASSEMBLY
    40 HP
    POWERHEAD ASSEMBLY
    40 HP
