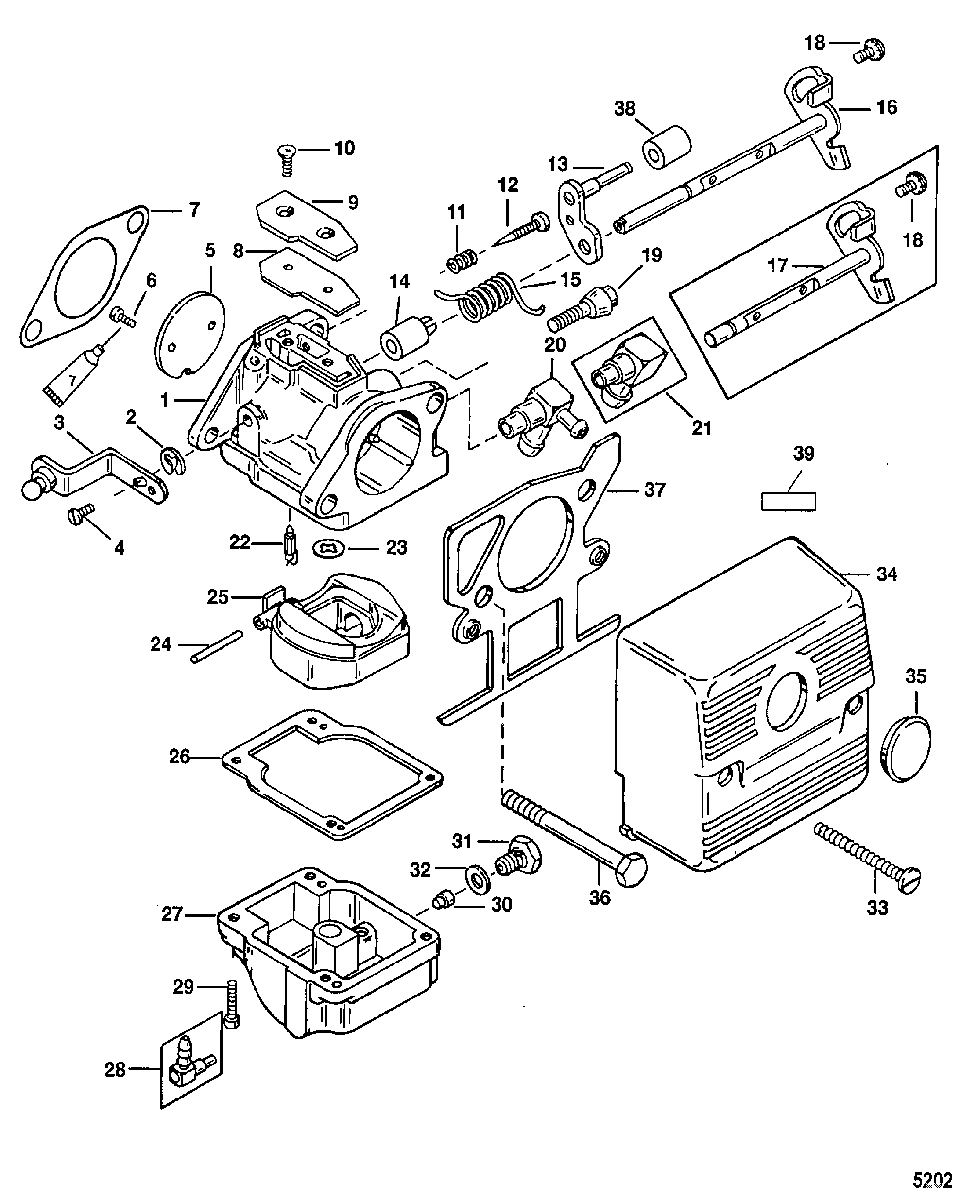

Carburetor для Mariner - 30 (2 CYL.) 0P017000 THRU 0P325499

  • №
    Артикул
    Название
  • 1
    3301-821383T17 CARBURETOR, (WME 66)
    (Manual - 40)
    CARBURETOR, (WME 66)
    (Manual - 40)
  • 1
    3301-821383T18 CARBURETOR, (WME 67)
    (Electric - 40)
    CARBURETOR, (WME 67)
    (Electric - 40)
  • 1
    3301-823799A44 CARBURETOR, (WME 63)
    (Manual - 30)
    CARBURETOR, (WME 63)
    (Manual - 30)
  • 1
    3301-823799T38 CARBURETOR, (WME 64)
    (Electric 30)
    CARBURETOR, (WME 64)
    (Electric 30)
  • 1
    3301-823799A43 CARBURETOR KIT
    (Electric 30)
    CARBURETOR KIT
    (Electric 30)
  • 1
    3301-823799T38 CARBURETOR, (WME 97)
    (Electric 30)
    CARBURETOR, (WME 97)
    (Electric 30)
  • 1
    3301-821383A19 CARBURETOR KIT
    (Manual 40)
    CARBURETOR KIT
    (Manual 40)
  • 1
    3301-821383T17 CARBURETOR, (WME 98)
    (Manual 40)
    CARBURETOR, (WME 98)
    (Manual 40)
  • 1
    3301-821383A20 CARBURETOR KIT
    (Electric 40)
    CARBURETOR KIT
    (Electric 40)
  • 1
    3301-821383T18 CARBURETOR, (WME 99)
    (Electric 40)
    CARBURETOR, (WME 99)
    (Electric 40)
  • 2
    NSS NOT SOLD SEPARATE, Retaining Ring
    NOT SOLD SEPARATE, Retaining Ring
  • 3
    1395-8113521 LEVER, Oil Pump
    (Electric)
    LEVER, Oil Pump
    (Electric)
  • 4
    1395-8086121 SCREW, Lever Retainer
    SCREW, Lever Retainer
  • 5
    1395-8236371 VALVE, Throttle
    VALVE, Throttle
  • 6
    NSS NOT SOLD SEPARATE, Screw-Throttle Valve
    NOT SOLD SEPARATE, Screw-Throttle Valve
  • 7
    27-8144461 GASKET, Flange
    GASKET, Flange
  • 8
    NSS NOT SOLD SEPARATE, Gasket-Cover Plate
    NOT SOLD SEPARATE, Gasket-Cover Plate
  • 9
    1395-811221 COVER PLATE
    COVER PLATE
  • 10
    1395-811220 SCREW, Cover Plate
    SCREW, Cover Plate
  • 11
    NSS NOT SOLD SEPARATE, Spring-Idle Needle
    NOT SOLD SEPARATE, Spring-Idle Needle
  • 12
    NSS NOT SOLD SEPARATE, Idle Needle
    NOT SOLD SEPARATE, Idle Needle
  • 13
    1395-808746 LEVER
    LEVER
  • 14
    1395-8087431 BUSHING, Throttle Shaft
    BUSHING, Throttle Shaft
  • 15
    NSS NOT SOLD SEPARATE, Spring-Throttle Return
    NOT SOLD SEPARATE, Spring-Throttle Return
  • 16
    1395-8236331 SHAFT, Throttle
    (Electric)
    SHAFT, Throttle
    (Electric)
  • 17
    1395-8236323 SHAFT, Throttle
    (Manual)
    SHAFT, Throttle
    (Manual)
  • 18
    1395-823634 SCREW
    SCREW
  • 19
    1395-8087392 SCREW, Idle Speed
    SCREW, Idle Speed
  • 20
    NSS NOT SOLD SEPARATE, Fitting
    (Electric)
    NOT SOLD SEPARATE, Fitting
    (Electric)
  • 21
    NSS NOT SOLD SEPARATE, Fitting
    (Manual)
    NOT SOLD SEPARATE, Fitting
    (Manual)
  • 22
    10-95951 VALVE, Inlet Needle
    VALVE, Inlet Needle
  • 23
    1395-808738 GASKET
    GASKET
  • 24
    NSS NOT SOLD SEPARATE, Float Shaft
    NOT SOLD SEPARATE, Float Shaft
  • 25
    1395-9594 FLOAT
    FLOAT
  • 26
    NSS NOT SOLD SEPARATE, Gasket-Fuel Bowl
    NOT SOLD SEPARATE, Gasket-Fuel Bowl
  • 27
    1395-811695 BOWL, Fuel
    (Manual)
    BOWL, Fuel
    (Manual)
  • 27
    1395-811693 BOWL, Fuel
    (Electric)
    BOWL, Fuel
    (Electric)
  • 28
    NSS NOT SOLD SEPARATE, Fitting (Part of 1395-811695)
    (Manual)
    NOT SOLD SEPARATE, Fitting (Part of 1395-811695)
    (Manual)
  • 29
    1395-808612 SCREW AND WASHER, (#8-32 x .750)
    SCREW AND WASHER, (#8-32 x .750)
  • 30
    1399-4215 JET, Main Fuel (.066)
    (.066 - 40 H.P.)
    JET, Main Fuel (.066)
    (.066 - 40 H.P.)
  • 30
    1399-5225 JET, Main (.054)
    (.054 - 30 H.P.)
    JET, Main (.054)
    (.054 - 30 H.P.)
  • 31
    1395-811694 PLUG KIT
    PLUG KIT
  • 32
    1395-802731 SEAL
    (Consists of 4 Seals)
    SEAL
    (Consists of 4 Seals)
  • 33
    10-814776 SCREW, Adjusting (M6 x 55)
    SCREW, Adjusting (M6 x 55)
  • 34
    823587T02 COVER, Carburetor
    COVER, Carburetor
  • 35
    19-815784 CAP
    CAP
  • 36
    10-4000363 SCREW, (M8 x 100)
    SCREW, (M8 x 100)
  • 37
    8235862 PLATE, Carburetor
    PLATE, Carburetor
  • 38
    67748 ROLLER
    ROLLER
  • 39
    NSS NOT SOLD SEPARATE, Decal-Caution-Airbox
    NOT SOLD SEPARATE, Decal-Caution-Airbox
  • -
    1395-8236354 REPAIR KIT, Carburetor
    REPAIR KIT, Carburetor
  • -
    1395-8112231 GASKET SET, Carburetor
    GASKET SET, Carburetor
  • -
    27-822420A94 GASKET SET
    GASKET SET
  • -
    808569T02 POWERHEAD ASSEMBLY
    30 HP
    POWERHEAD ASSEMBLY
    30 HP
  • -
    61-8M0063311 POWERHEAD ASSEMBLY
    40 HP
    POWERHEAD ASSEMBLY
    40 HP
