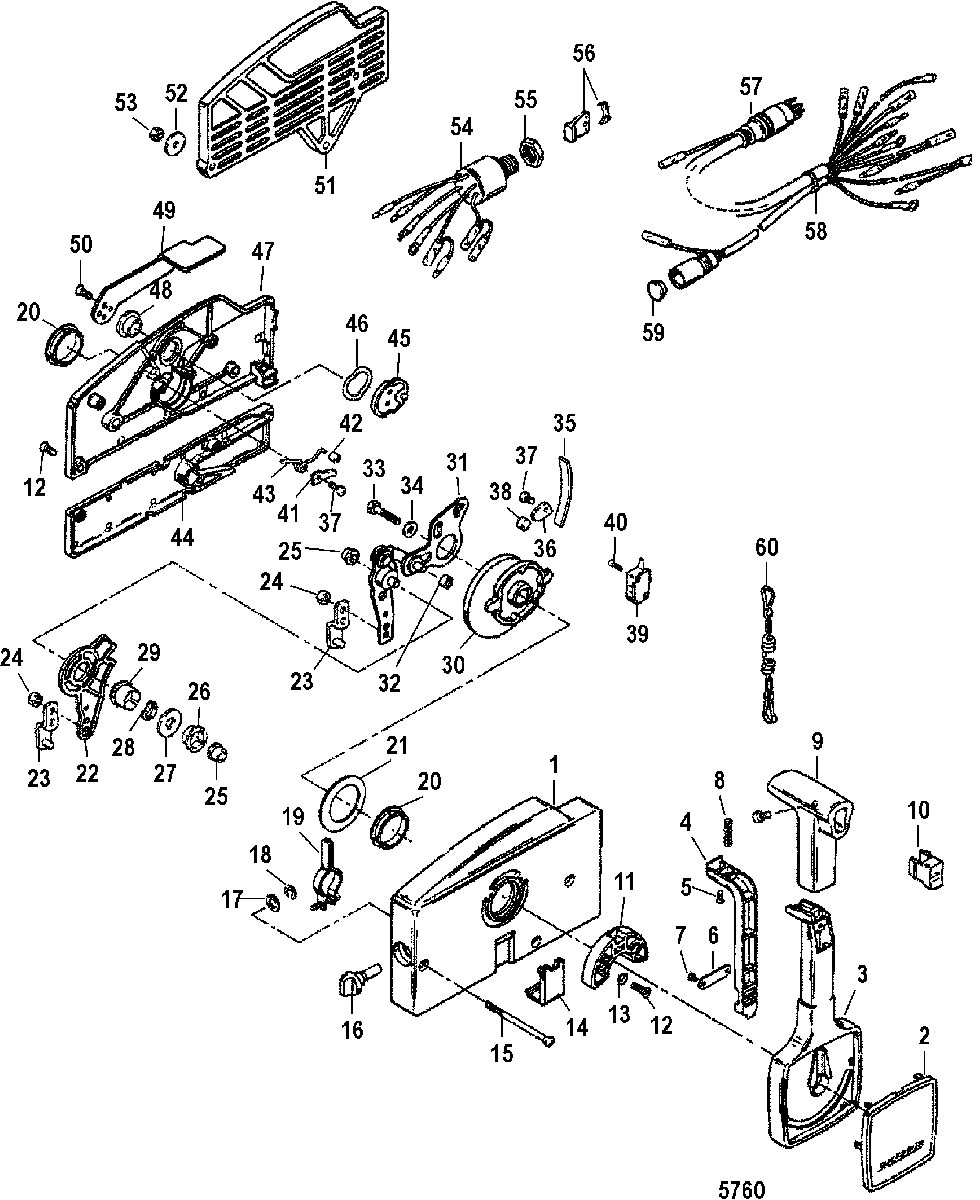

Remote Control(With Quicksilver Decal) для Mariner - 30 (2 CYL.) (International) 0N001875 THRU 0N055504
-
№АртикулНазвание
-
-881170A9 REMOTE CONTROL
(With Qucksilver Decal)REMOTE CONTROL
(With Qucksilver Decal) -
116910A1 HOUSING KIT, FrontHOUSING KIT, Front
-
216916A1 CAP ASSEMBLYCAP ASSEMBLY
-
316913T LEVERLEVER
-
416915 LOCK ARMLOCK ARM
-
510-40056105 SCREW, (M5 x 10)SCREW, (M5 x 10)
-
616921 BRACKET, Lock Bar SupportBRACKET, Lock Bar Support
-
710-4005685 SCREW, (M4 x 10)SCREW, (M4 x 10)
-
824-16924 SPRINGSPRING
-
916914 GRIPGRIP
-
1017016 PLUGPLUG
-
1116899T HOLDER, Neutral LockHOLDER, Neutral Lock
-
1210-40118107 SCREW, (M5 x 18)SCREW, (M5 x 18)
-
1313-16923 LOCKWASHER, ExternalLOCKWASHER, External
-
1416917 COVERCOVER
-
1510-40116110T SCREW, (M6 x 110)SCREW, (M6 x 110)
-
1616920 BRAKE ADJUSTERBRAKE ADJUSTER
-
1712-16896 WASHERWASHER
-
1853-13194 RING, RetainingRING, Retaining
-
1916895 ARM ASSEMBLY, BrakeARM ASSEMBLY, Brake
-
2023-16875 BEARING, (1.750 Inside Diameter)BEARING, (1.750 Inside Diameter)
-
2112-16874 WASHERWASHER
-
2216918A3 GEAR SHIFT ASSEMBLYGEAR SHIFT ASSEMBLY
-
2354-85899A1 CLIP ASSEMBLYCLIP ASSEMBLY
-
2411-401385 NUT, (M5)NUT, (M5)
-
2523-16871 BEARING (.36 Inches Inside Diameter)BEARING (.36 Inches Inside Diameter)
-
2623-16868 BEARING, (.750 Inside Diameter)BEARING, (.750 Inside Diameter)
-
2712-16870 WASHERWASHER
-
2813-16872 LOCKWASHERLOCKWASHER
-
2923-16869 BEARING (.87 Inches Inside Diameter)BEARING (.87 Inches Inside Diameter)
-
3016892T GEAR, DriveGEAR, Drive
-
31850723A2 PLATE/STUD ASSEMBLYPLATE/STUD ASSEMBLY
-
3216873 ROLLER, CamROLLER, Cam
-
3310-4007154 SCREW, (M8 x 30)SCREW, (M8 x 30)
-
3412-12038 WASHERWASHER
