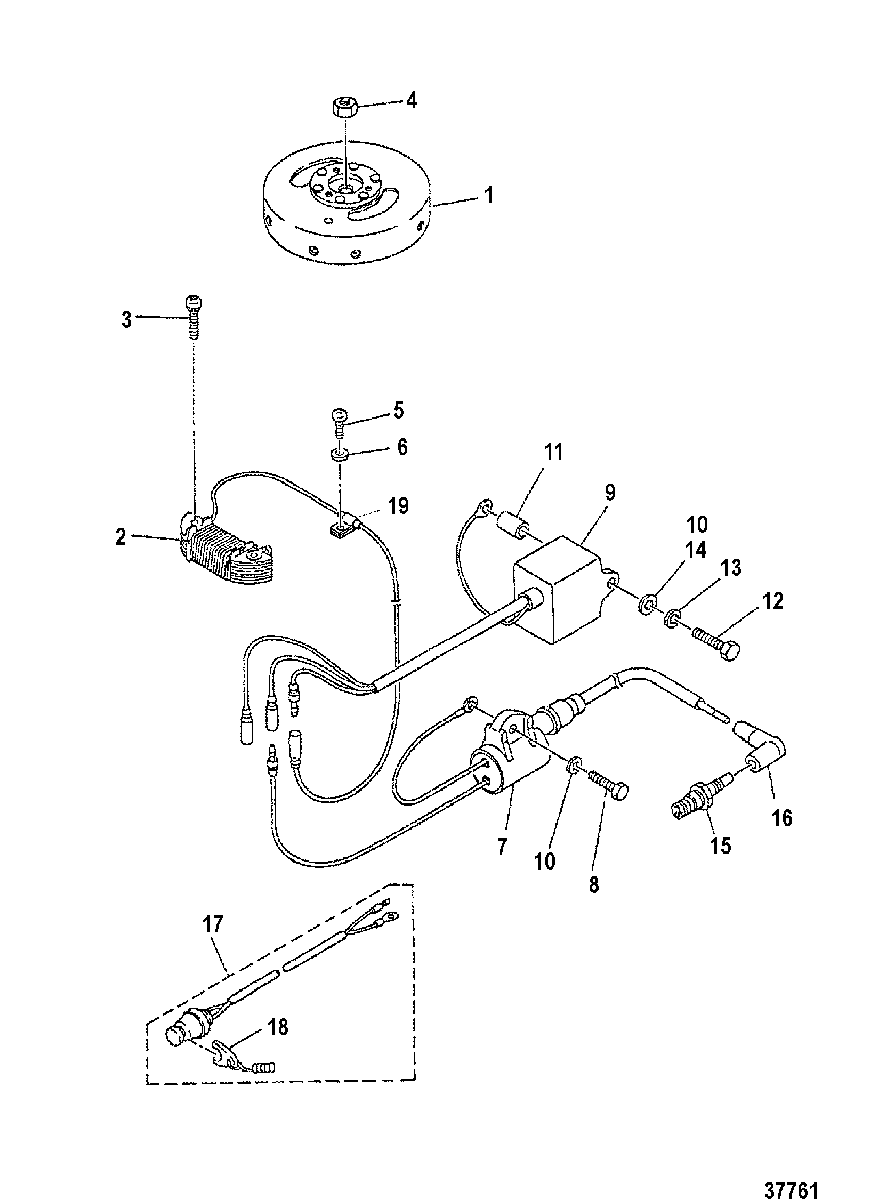

CD IGNITION для Mariner - 3 0A855097 THRU 0G710612
-
№АртикулНазвание
-
-262-822899A1 FLYWHEEL MAGNETO ASSEMBLYFLYWHEEL MAGNETO ASSEMBLY
-
1262-822899 FLYWHEELFLYWHEEL
-
2823030T1 COIL, ExciterCOIL, Exciter
-
310-16059 SCREWSCREW
-
411-95233 NUTNUT
-
510-823031 SCREWSCREW
-
613-823032 LOCKWASHER
(USE WHERE APPLICABLE)LOCKWASHER
(USE WHERE APPLICABLE) -
7823033 COIL, IgnitionCOIL, Ignition
-
810-16705 BOLTBOLT
-
9823034T CD UNITCD UNIT
-
1013-16818 LOCKWASHER
(SEE NOTE 1)LOCKWASHER
(SEE NOTE 1) -
1123-823035 SPACER
(SEE NOTE 1)SPACER
(SEE NOTE 1) -
1210-16832 BOLT
(SEE NOTE 1)BOLT
(SEE NOTE 1) -
1313-16818 LOCKWASHER
(SEE NOTE 1)LOCKWASHER
(SEE NOTE 1) -
1412-809931044 WASHER
(SEE NOTE 1)WASHER
(SEE NOTE 1) -
1012-953921 WASHER, Stainless SteelWASHER, Stainless Steel
-
1210-16832 BOLT, (M6 x 16)BOLT, (M6 x 16)
-
1533-8M0114743 SPARK PLUG
(NGK#BP6HS-10)SPARK PLUG
(NGK#BP6HS-10) -
1533-19796 SPARK PLUG
(NGK#BPR6HS-10)(W/RESISTANCE)SPARK PLUG
(NGK#BPR6HS-10)(W/RESISTANCE) -
1685-95282A1 CAP KITCAP KIT
-
1787-823037A04 SWITCH ASSEMBLY, Emergency StopSWITCH ASSEMBLY, Emergency Stop
-
18823054 LANYARDLANYARD
-
1954-160601 CLAMPCLAMP
