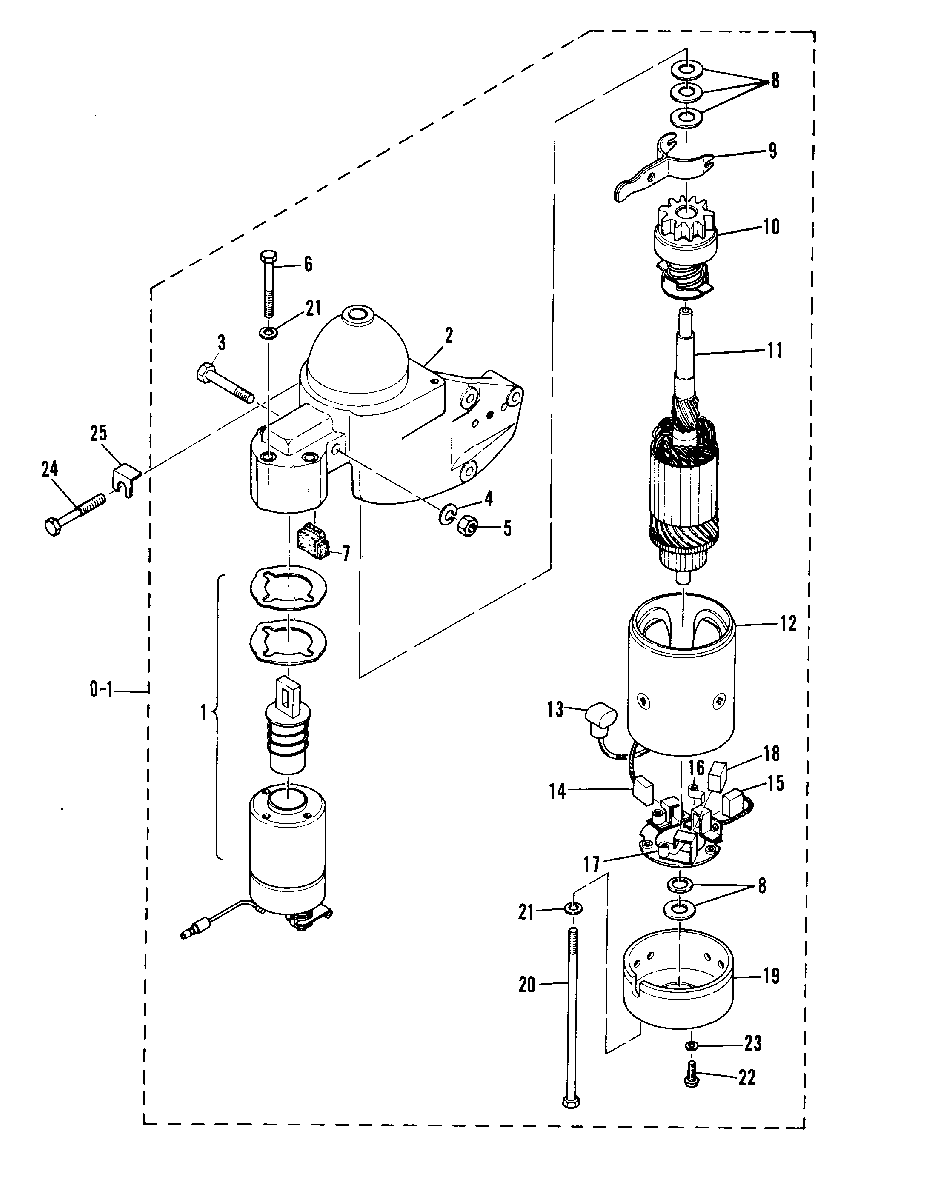

ELECTRIC STARTER MOTOR для Mariner - 28 664-04606 AND UP
-
№АртикулНазвание
-
0-150-80691M STARTER MOTOR ASS'YSTARTER MOTOR ASS'Y
-
180709M SOLENOID ASS'Y, STARTER MOTORSOLENOID ASS'Y, STARTER MOTOR
-
280703M COVER, DRIVE ENDCOVER, DRIVE END
-
310-80701M BOLTBOLT
-
413-82212M WASHER, LOCKWASHER, LOCK
-
511-82389M NUTNUT
-
610-80706M BOLTBOLT
-
725-80702M DAMPENER, SOLENOIDDAMPENER, SOLENOID
-
812-80692M WASHER KITWASHER KIT
-
980705M LEVER, SOLENOIDLEVER, SOLENOID
-
1043-80704M PINION, STARTERPINION, STARTER
-
1180707M ARMATURE ASS'YARMATURE ASS'Y
-
1280693M FRAME AND FIELD ASS'YFRAME AND FIELD ASS'Y
-
1380710M CAP, FIELD LEADCAP, FIELD LEAD
-
1480694M BRUSH, FIELD LEADBRUSH, FIELD LEAD
-
1580695M BRUSH, BRUSH PLATE LEADBRUSH, BRUSH PLATE LEAD
-
1624-80696M SPRING, BRUSHSPRING, BRUSH
-
1724-80697M SPRING, BRUSH PLATESPRING, BRUSH PLATE
-
1812-80700M :IECE, FRICTION:IECE, FRICTION
-
1980698M COVER, COMMUTATOR LEADCOVER, COMMUTATOR LEAD
-
2010-80699M THRU-BOLTTHRU-BOLT
-
2113-82186M WASHER, LOCKWASHER, LOCK
-
2210-82515M SCREWSCREW
-
2313-82206M WASHER, LOCKWASHER, LOCK
-
2410-827043M BOLTBOLT
-
2515-80712M SHIMSHIM
Все узлы модели:
- CARBURETOR
- CLAMP AND SWIVEL BRACKET
- COWLING
- CRANKCASE AND CYLINDER HEAD
- CRANKSHAFT AND PISTON
- DRIVESHAFT HOUSING
- ELECTRIC START COMPONENTS
- • ELECTRIC STARTER MOTOR
- FLYWHEEL MAGNETO
- FUEL LINES AND FILTER
- FUEL PUMP
- FUEL PUMP
- FUEL TANK-INTERNATIONAL AND USA (ORIGINAL EQUIP) 24 LITRE
- FUEL TANK-INTERNATIONAL ONLY (ORIGINAL EQUIP) 24 LITRE (6.3)
- FUEL TANK-REPLACEMENT OR ADDITIONAL 22.7 LITRE (6.0 GALLONS)
- GEAR SHIFT LINKAGE
- INTAKE MANIFOLD
- MOUNTING SYSTEM
- OPTIONAL PARTS
- RECOIL STARTER
- REMOTE CONTROL ATTACHING KIT
- REVERSE LOCK
- Shift Linkage, Jet-Remote Control
- STEERING HANDLE
- THROTTLE CONTROL
