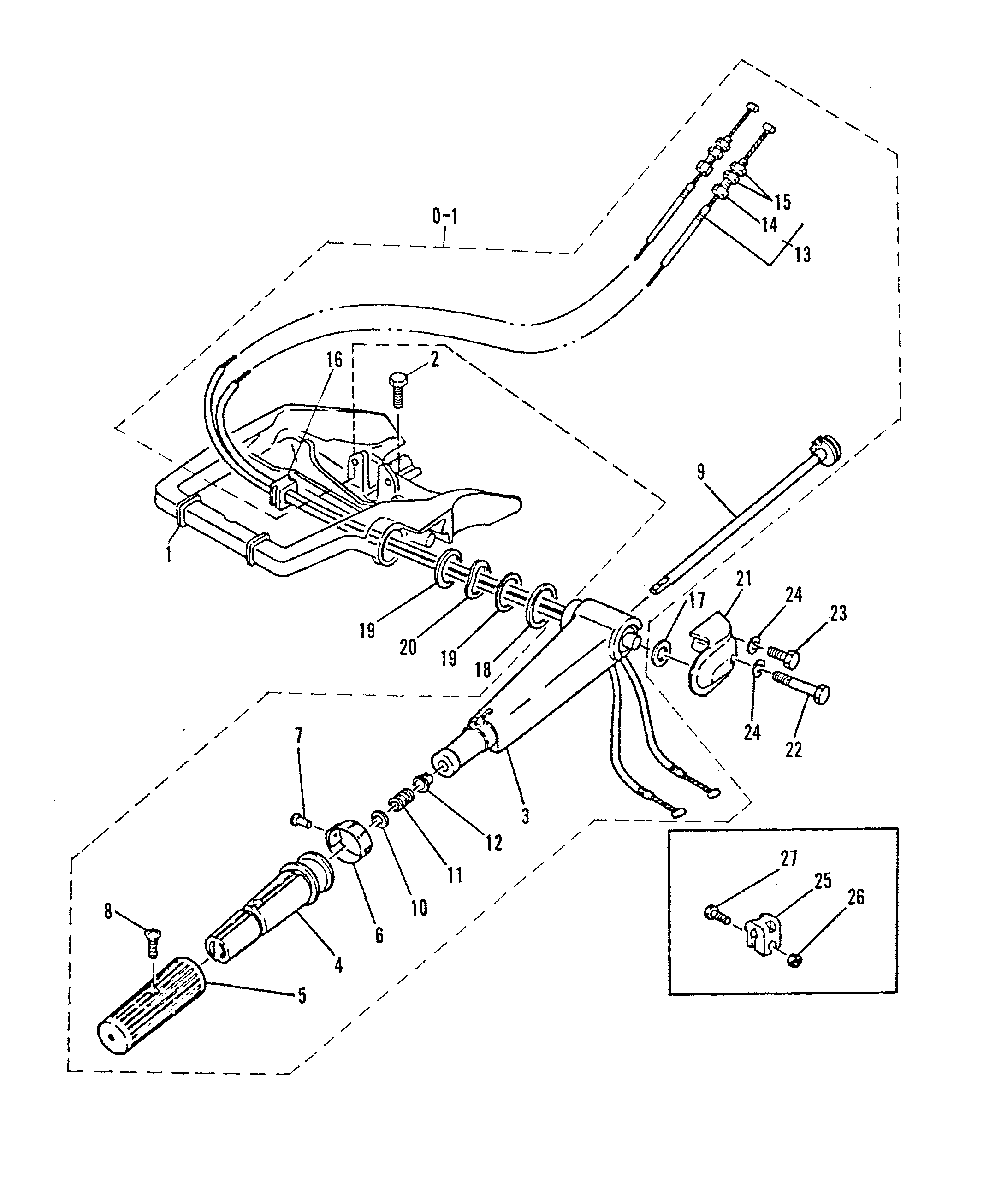

STEERING HANDLE для Mariner - 25C (THRU PROP. EXHAUST) 695-253862 AND UP

  • №
    Артикул
    Название
  • 1
    19113M BRACKET, STEERING
    SERIAL 00031675-09999999
    BRACKET, STEERING
    SERIAL 00031675-09999999
  • 1
    19113M BRACKET, STEERING
    SERIAL 00000000-00031674
    BRACKET, STEERING
    SERIAL 00000000-00031674
  • 2
    10-84830M BOLT
    BOLT
  • 0-1
    95673M STEERING HANDLE ASS'Y
    ORDERING STEERING HANDLE ASSEMBLY AS A NEW ACCESSORY (NEW ADD ON ASSEMBLY), PARTS WITH REFERENCE NUMBERS 17 THRU 24 (INCLUSIVE) ARE ALSO REQUIRED.
    STEERING HANDLE ASS'Y
    ORDERING STEERING HANDLE ASSEMBLY AS A NEW ACCESSORY (NEW ADD ON ASSEMBLY), PARTS WITH REFERENCE NUMBERS 17 THRU 24 (INCLUSIVE) ARE ALSO REQUIRED.
  • 3
    96664M HANDLE, STEERING
    HANDLE, STEERING
  • 4
    81585M HANDLE, THROTTLE
    HANDLE, THROTTLE
  • 5
    8M0080456 GRIP, THROTTLE HANDLE
    GRIP, THROTTLE HANDLE
  • 6
    42432M INDICATOR, THROTTLE
    INDICATOR, THROTTLE
  • 7
    17-81907M RIVET
    RIVET
  • 8
    10-811916M SCREW
    SERIAL 00031675-09999999
    SCREW
    SERIAL 00031675-09999999
  • 8
    10-811916M SCREW
    SERIAL 00000000-00031674
    SCREW
    SERIAL 00000000-00031674
  • 9
    84856M LEVER, THROTTLE
    LEVER, THROTTLE
  • 10
    12-82220M WASHER, THROTTLE SHAFT
    WASHER, THROTTLE SHAFT
  • 11
    24-82095M SPRING
    SPRING
  • 12
    23-81945M BUSHING, STEERING ARM
    BUSHING, STEERING ARM
  • 13
    41892M CABLE ASS'Y THROTTLE
    CABLE ASS'Y THROTTLE
  • 14
    10-815139M ADJUSTER, CABLE
    ADJUSTER, CABLE
  • 15
    11-81765M NUT
    NUT
  • 16
    25-82064M GROMMET
    GROMMET
  • 17
    23-82119M SPACER
    SPACER
  • 18
    23-81861M SPACER
    SPACER
  • 19
    12-84850M WASHER
    WASHER
  • 20
    13-84851M WASHER, WAVE
    WASHER, WAVE
  • 21
    84852M RETAINER
    RETAINER
  • 22
    10-84931M BOLT
    BOLT
  • 23
    10-84058M BOLT
    BOLT
  • 24
    12-82214M WASHER
    WASHER
  • 25
    82895M PIECE, FRICTION
    PIECE, FRICTION
  • 26
    11-83056M NUT
    NUT
  • 27
    10-84058M BOLT
    BOLT
