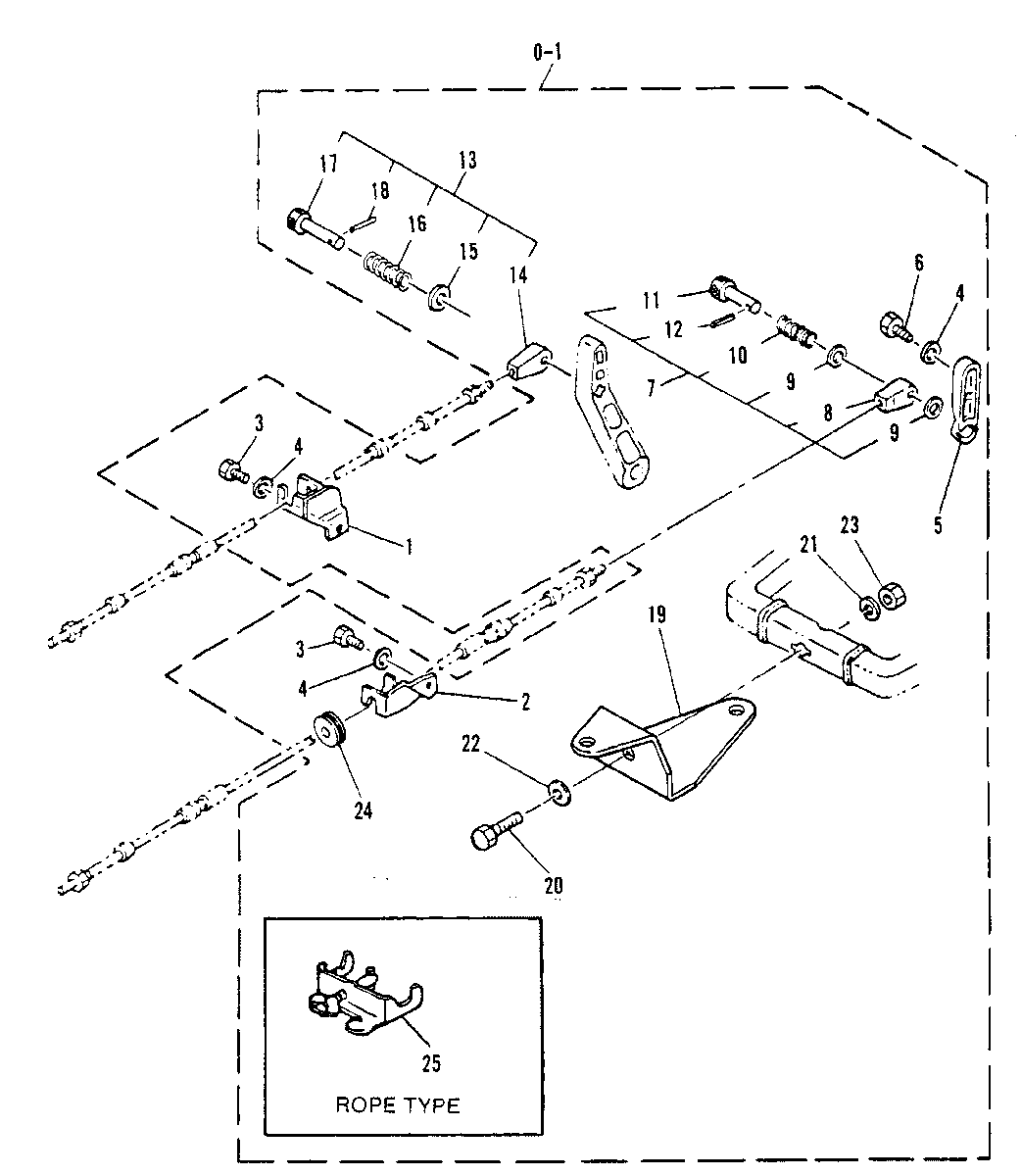

REMOTE CONTROL ATTACHING KIT для Mariner - 25C (THRU PROP. EXHAUST) 695-250101 THRU 253861

  • №
    Артикул
    Название
  • 0-1
    43991A1 ATTACHING KIT (BALL POST TYPE)
    (SERIAL 00006086-09999999)
    ATTACHING KIT (BALL POST TYPE)
    (SERIAL 00006086-09999999)
  • 0-1
    8M0116998 ATTACHING KIT
    (SERIAL 00000000-00006085)
    ATTACHING KIT
    (SERIAL 00000000-00006085)
  • 1
    84221M BRACKET, GEAR SHIFT
    BRACKET, GEAR SHIFT
  • 2
    83717M BRACKET, THROTTLE
    BRACKET, THROTTLE
  • 3
    10-826957M BOLT
    (SERIAL 00019911-09999999)
    BOLT
    (SERIAL 00019911-09999999)
  • 3
    10-826957M BOLT
    (SERIAL 00000000-00019910)
    BOLT
    (SERIAL 00000000-00019910)
  • 4
    12-82214M WASHER
    WASHER
  • 5
    84222M THROTTLE LEVER
    THROTTLE LEVER
  • 6
    10-91772M BOLT
    BOLT
  • 7
    83933M CABLE END ASS'Y, THROTTLE
    (SERIAL 00006086-09999999)
    CABLE END ASS'Y, THROTTLE
    (SERIAL 00006086-09999999)
  • 7
    83723M CABLE END ASS'Y, THROTTLE
    (SERIAL 00000000-00006085)
    CABLE END ASS'Y, THROTTLE
    (SERIAL 00000000-00006085)
  • 8
    83934M CABLE END
    (SERIAL 00006086-09999999)
    CABLE END
    (SERIAL 00006086-09999999)
  • 8
    83724M CABLE END
    (SERIAL 00000000-00006085)
    CABLE END
    (SERIAL 00000000-00006085)
  • 9
    12-82216M WASHER
    WASHER
  • 10
    24-83725M SPRING
    SPRING
  • 11
    17-814499M HOOK
    HOOK
  • 12
    17-82146M PIN, ROLL
    PIN, ROLL
  • 13
    83719M CABLE END ASS'Y, SHIFT
    CABLE END ASS'Y, SHIFT
  • 14
    83720M CABLE END
    CABLE END
  • 15
    12-82216M WASHER
    WASHER
  • 16
    24-83721M SPRING
    SPRING
  • 17
    17-814500M HOOK
    HOOK
  • 18
    17-82146M PIN, ROLL
    PIN, ROLL
  • 19
    91635M BRACKET, STEERING
    (SERIAL 00006086-09999999)
    BRACKET, STEERING
    (SERIAL 00006086-09999999)
  • 19
    11670T BRACKET, STEERING
    (SERIAL 00000000-00006085)
    BRACKET, STEERING
    (SERIAL 00000000-00006085)
  • 20
    10-91636M BOLT
    (SERIAL 00019911-09999999)
    BOLT
    (SERIAL 00019911-09999999)
  • 20
    10-91636M BOLT
    (SERIAL 00000000-00019910)
    BOLT
    (SERIAL 00000000-00019910)
  • 21
    26-82248M WASHER
    WASHER
  • 22
    12-82220M WASHER, LOCK
    WASHER, LOCK
  • 23
    11-81785M LOCKNUT
    (SERIAL 00009376-09999999)
    LOCKNUT
    (SERIAL 00009376-09999999)
  • 23
    11-82395M NUT
    (SERIAL 00000000-00009375)
    NUT
    (SERIAL 00000000-00009375)
  • 24
    25-97031M GROMMET
    GROMMET
  • 25
    83727M BRACKET, STEERING (ROPE TYPE)
    (SERIAL 00019911-09999999)
    BRACKET, STEERING (ROPE TYPE)
    (SERIAL 00019911-09999999)
