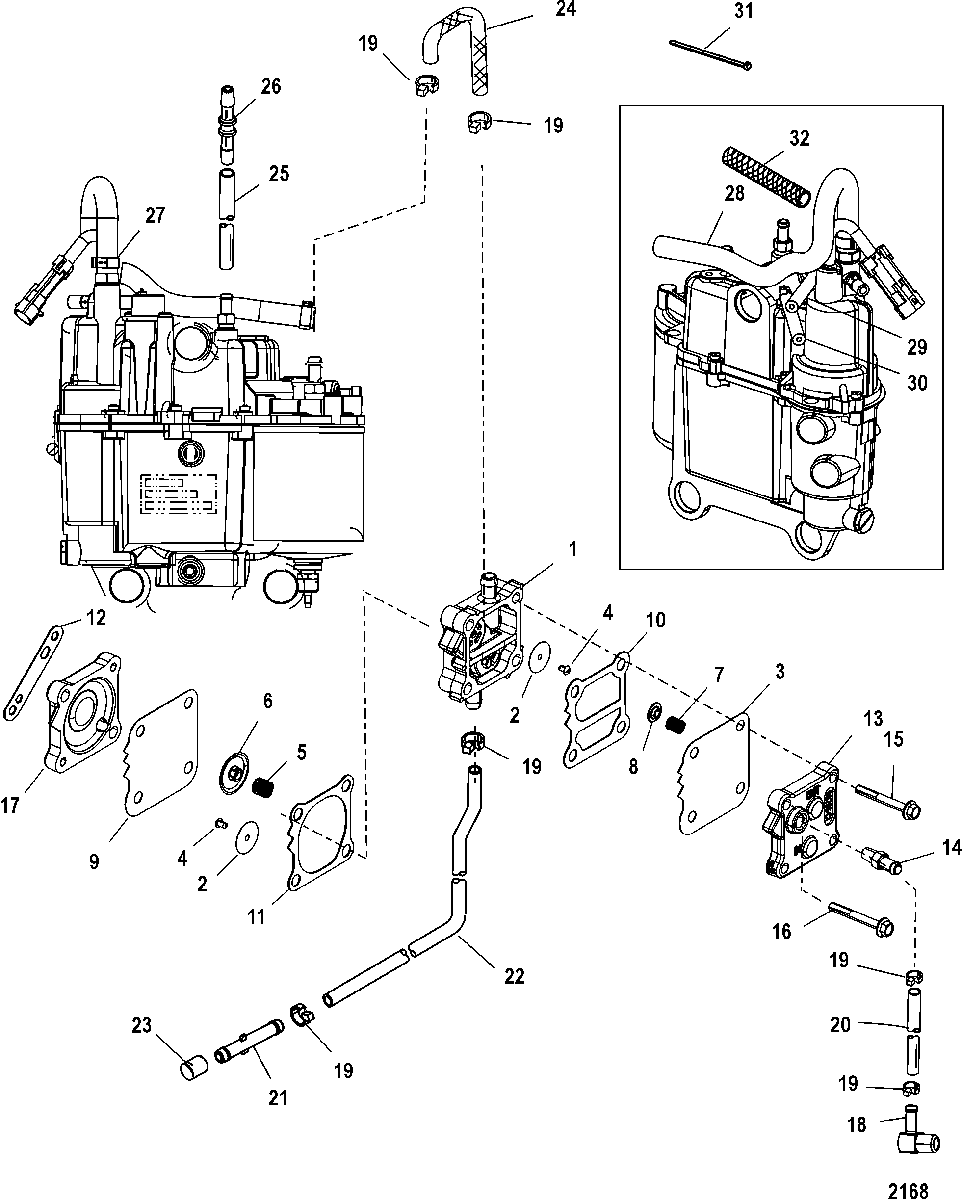

Fuel Pump для Mariner - 250 LONG (3.0L)(EFI) 0T861319 & Up

  • №
    Артикул
    Название
  • -
    14360A78 PUMP KIT, Fuel
    PUMP KIT, Fuel
  • 1
    NSS NOT SOLD SEPARATE, Fuel Pump
    NOT SOLD SEPARATE, Fuel Pump
  • -
    21-857005A1 DIAPHRAGM KIT
    DIAPHRAGM KIT
  • 2
    NSS NOT SOLD SEPARATE, Disc Check Valve
    NOT SOLD SEPARATE, Disc Check Valve
  • 3
    NSS NOT SOLD SEPARATE, Diaphragm
    NOT SOLD SEPARATE, Diaphragm
  • 4
    NSS NOT SOLD SEPARATE, Retainer
    NOT SOLD SEPARATE, Retainer
  • 5
    NSS NOT SOLD SEPARATE, Spring
    NOT SOLD SEPARATE, Spring
  • 6
    NSS NOT SOLD SEPARATE, Cap
    NOT SOLD SEPARATE, Cap
  • 7
    NSS NOT SOLD SEPARATE, Spring
    NOT SOLD SEPARATE, Spring
  • 8
    NSS NOT SOLD SEPARATE, Cap
    NOT SOLD SEPARATE, Cap
  • 9
    NSS NOT SOLD SEPARATE, Diaphragm
    NOT SOLD SEPARATE, Diaphragm
  • 10
    NSS NOT SOLD SEPARATE, Gasket-Boost
    NOT SOLD SEPARATE, Gasket-Boost
  • 11
    NSS NOT SOLD SEPARATE, Gasket-Pulse
    NOT SOLD SEPARATE, Gasket-Pulse
  • 12
    27-987691 GASKET
    GASKET
  • 13
    987752 PLATE
    PLATE
  • 14
    22-16604 FITTING, Straight (.125-27)
    FITTING, Straight (.125-27)
  • 15
    10-82104540 SCREW, (M5 x 40), Fuel Pump
    SCREW, (M5 x 40), Fuel Pump
  • 16
    10-82130050 SCREW, (M6 x 50), Pump to Crankcase
    SCREW, (M6 x 50), Pump to Crankcase
  • 17
    144303 BASE
    BASE
  • 18
    22-856842 ELBOW, To Crankcase
    ELBOW, To Crankcase
  • 19
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 20
    32-8M0064783 HOSE, Pulse Line
    HOSE, Pulse Line
  • 21
    22-822769 CONNECTOR
    CONNECTOR
  • 22
    32-8M0064778 HOSE
    HOSE
  • 23
    NSS NOT SOLD SEPARATE, Cap
    NOT SOLD SEPARATE, Cap
  • 24
    32-8M0064780 HOSE/SLEEVE
    HOSE/SLEEVE
  • 25
    32-8M0108355 HOSE, (57.00 Inches Bulk) (Cut to 16 Inches)
    HOSE, (57.00 Inches Bulk) (Cut to 16 Inches)
  • 26
    22-858955 CONNECTOR
    CONNECTOR
  • 27
    54-856880 CLAMP, Hose (15.3)
    CLAMP, Hose (15.3)
  • 28
    32-8839461 HOSE
    HOSE
  • 29
    32-8M0054213 TUBING, (34.00 Inches Bulk) (Cut to 15 Inches) To Elbow on Plenum
    TUBING, (34.00 Inches Bulk) (Cut to 15 Inches) To Elbow on Plenum
  • 30
    32-8M0054213 TUBING, (34.00 Inches Bulk) (Cut to 28 Inches) To Oil Pump
    TUBING, (34.00 Inches Bulk) (Cut to 28 Inches) To Oil Pump
  • 31
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 32
    32-883965 CONDUIT
    CONDUIT
  • -
    27-832934A00 GASKET SET, Powerhead
    GASKET SET, Powerhead
  • -
    883894A07 POWERHEAD ASSEMBLY
    POWERHEAD ASSEMBLY
