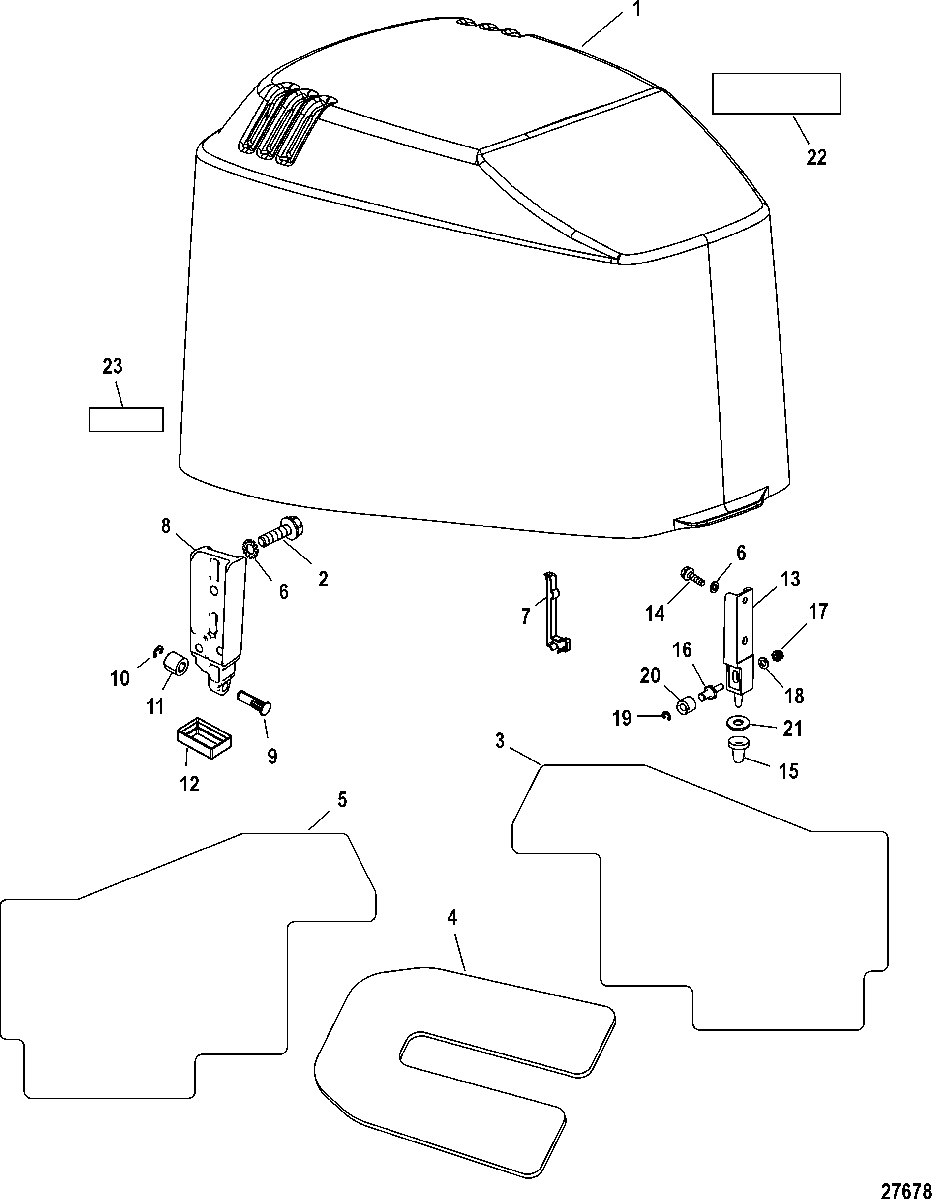

Top Cowl для Mariner - 250 (3.0L EFI) 1B504989 & Up

  • №
    Артикул
    Название
  • 1
    100-8M0143835 TOP COWL ASSEMBLY, Black
    TOP COWL ASSEMBLY, Black
  • 1
    4001-880012T36 TOP COWL ASSEMBLY, Silver
    TOP COWL ASSEMBLY, Silver
  • 2
    10-82130030 SCREW, (M6 x 30)
    SCREW, (M6 x 30)
  • 3
    880014A02 SOUND BLANKET KIT
    SOUND BLANKET KIT
  • 4
    NSS NOT SOLD SEPARATE, Sound Blanket-Top
    NOT SOLD SEPARATE, Sound Blanket-Top
  • 5
    NSS NOT SOLD SEPARATE, Sound Blanket-Port
    NOT SOLD SEPARATE, Sound Blanket-Port
  • 6
    13-93702 WASHER, (.250 External Star)
    WASHER, (.250 External Star)
  • 7
    826639T COVER
    COVER
  • 8
    8M0010389 BRACKET ASSEMBLY, Cowl
    BRACKET ASSEMBLY, Cowl
  • 9
    NSS NOT SOLD SEPARATE, Pin
    NOT SOLD SEPARATE, Pin
  • 10
    53-8237951 RING, Retaining
    RING, Retaining
  • 11
    815263 ROLLER
    ROLLER
  • 12
    25-850685T02 GROMMET
    GROMMET
  • 13
    8M0036792 BRACKET, Front
    BRACKET, Front
  • 14
    10-82130020 SCREW, (M6 x 20)
    SCREW, (M6 x 20)
  • 15
    815477 BUMPER, Latch
    BUMPER, Latch
  • 16
    8155381 PIN, Roll
    PIN, Roll
  • 17
    11-401366 NUT, (M6) Stainless Steel
    NUT, (M6) Stainless Steel
  • 18
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel
    WASHER, (.281 x .500 x .060) Stainless Steel
  • 19
    53-8237951 RING, Retaining
    RING, Retaining
  • 20
    815263 ROLLER
    ROLLER
  • 21
    12-87161 WASHER
    WASHER
  • 22
    NSS NOT SOLD SEPARATE, Decal-Break-In
    NOT SOLD SEPARATE, Decal-Break-In
  • 23
    NSS NOT SOLD SEPARATE, Decal-Counter Rotation
    NOT SOLD SEPARATE, Decal-Counter Rotation
  • -
    37-8M0114986 DECAL SET
    (Mercury 200)
    DECAL SET
    (Mercury 200)
  • -
    37-897516002 DECAL, (200)
    DECAL, (200)
  • -
    37-859264017 DECAL, (3.0L)
    DECAL, (3.0L)
  • -
    37-8M0114986 DECAL SET
    (Mercury 225)
    DECAL SET
    (Mercury 225)
  • -
    37-897517002 DECAL, (225)
    DECAL, (225)
  • -
    37-859264017 DECAL, (3.0L)
    DECAL, (3.0L)
  • -
    37-8M0069508 DECAL SET
    (Mercury 250)
    DECAL SET
    (Mercury 250)
  • -
    37-897517003 DECAL, (250)
    DECAL, (250)
  • -
    37-859264017 DECAL, (3.0L)
    DECAL, (3.0L)
  • -
    37-827438A03 DECAL SET
    (Mariner 225 Long)
    DECAL SET
    (Mariner 225 Long)
  • -
    37-883284A03 DECAL SET
    (Mariner 225 X-Long)
    DECAL SET
    (Mariner 225 X-Long)
  • -
    37-809168A03 DECAL SET
    (Mariner 250)
    DECAL SET
    (Mariner 250)
