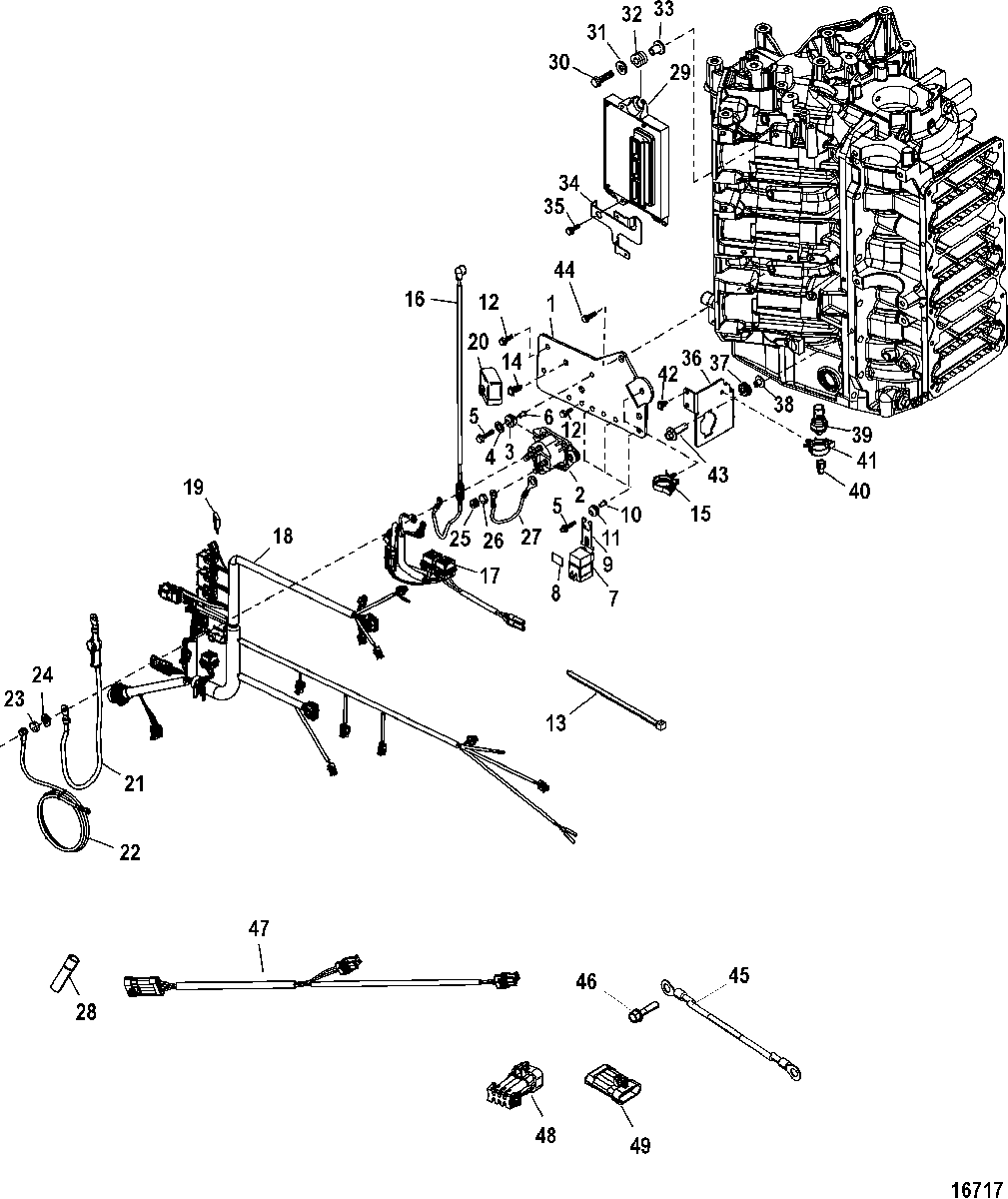

Solenoid Plate(Serial Number 1B227000 & Up) для Mariner - 250 (3.0L EFI) 0T801000 THRU 1B417701
-
№АртикулНазвание
-
-NSS NOT SOLD SEPARATE, Electrical Plate Assembly-CompleteNOT SOLD SEPARATE, Electrical Plate Assembly-Complete
-
1858366T2 PLATEPLATE
-
289-817109A2 SOLENOID ASSEMBLY, (#10-32 / .3125-18 Terminals)SOLENOID ASSEMBLY, (#10-32 / .3125-18 Terminals)
-
325-822179 GROMMETGROMMET
-
412-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
510-82129125 SCREW, (M6 x 25 MM)SCREW, (M6 x 25 MM)
-
623-818968 BUSHINGBUSHING
-
7882751A1 RELAY ASSEMBLYRELAY ASSEMBLY
-
8NSS NOT SOLD SEPARATE, Decal-Trim RelayNOT SOLD SEPARATE, Decal-Trim Relay
-
9828102 BRACKETBRACKET
-
1023-818968 BUSHINGBUSHING
-
1125-818967 GROMMETGROMMET
-
1210-82129110 SCREW, (M6 x 10)SCREW, (M6 x 10)
-
1354-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
1454-828991T CLIPCLIP
-
1554-858755 CLIP, (1.00)CLIP, (1.00)
-
1684-878231A6 HARNESS ASSEMBLY, Fuse - 100 AmpereHARNESS ASSEMBLY, Fuse - 100 Ampere
-
1784-819514T21 HARNESS ASSEMBLY, TrimHARNESS ASSEMBLY, Trim
-
1884-892973T01 HARNESS ASSEMBLY, EngineHARNESS ASSEMBLY, Engine
-
1988-832969T20 FUSE, Mini - Yellow - 20 Ampere
(20 AMP)FUSE, Mini - Yellow - 20 Ampere
(20 AMP) -
1988-832969T05 FUSE, Mini - Tan - 5 Ampere
(5 AMP)FUSE, Mini - Tan - 5 Ampere
(5 AMP) -
20858754 COVER, FuseCOVER, Fuse
-
-879346A41 HARNESS ASSEMBLY (TPS)HARNESS ASSEMBLY (TPS)
-
-879346A52 HARNESS ASSEMBLY, Encoder, Crank Position SensorHARNESS ASSEMBLY, Encoder, Crank Position Sensor
-
-84-881262A2 HARNESS ASSEMBLY, Alternator, AlternatorHARNESS ASSEMBLY, Alternator, Alternator
-
2184-882829A1 CABLE ASSEMBLY, StarterCABLE ASSEMBLY, Starter
-
2284-88439A46 CABLE ASSEMBLY, Battery - PositiveCABLE ASSEMBLY, Battery - Positive
-
2311-68292 NUT, (.312-18)NUT, (.312-18)
-
2413-53166 LOCKWASHER, (.312)LOCKWASHER, (.312)
-
2511-813938 CAP NUT, (#10-32)CAP NUT, (#10-32)
-
2611-45076 NUT, (#10-32) BrassNUT, (#10-32) Brass
-
2784-88807A16 CABLE ASSEMBLY, (4.00 Inches) BlackCABLE ASSEMBLY, (4.00 Inches) Black
-
2813540 CAP, FemaleCAP, Female
-
2813541 PLUG, MalePLUG, Male
-
2989790644T PCM, Propulsion Control Module
(200)PCM, Propulsion Control Module
(200) -
2989790645T PCM, Propulsion Control Module
(225)PCM, Propulsion Control Module
(225) -
2989790647T PCM, Propulsion Control Module
(3.0L Work)PCM, Propulsion Control Module
(3.0L Work) -
2989790646T PCM, Propulsion Control Module
(250)PCM, Propulsion Control Module
(250) -
3010-82130025 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
3112-65567 WASHER, (.265 x .750 x .048) Stainless SteelWASHER, (.265 x .750 x .048) Stainless Steel
-
3225-834985 GROMMETGROMMET
-
3323-856954 BUSHINGBUSHING
-
3454-891520001 CLIPCLIP
-
3510-82129114 SCREW, (M6 x 14)SCREW, (M6 x 14)
-
36892295F01 BRACKETBRACKET
-
3725-834985 GROMMETGROMMET
-
3823-822003 BUSHINGBUSHING
-
39881879T11 SENSOR, Pressure (0 - 100 PSI)SENSOR, Pressure (0 - 100 PSI)
-
4022-892403 FITTINGFITTING
-
4154-883066 CLIP, (.865)CLIP, (.865)
-
4254-879962 CLIPCLIP
-
4310-82130025 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
4410-82130012 SCREW, (M6 x 12)SCREW, (M6 x 12)
-
4584-88439A26 CABLE ASSEMBLY, Battery - NegativeCABLE ASSEMBLY, Battery - Negative
-
4610-81893420 SCREW, (M8 x 20)SCREW, (M8 x 20)
-
4784-882815A1 HARNESS ASSEMBLY (200/3.0L Work)HARNESS ASSEMBLY (200/3.0L Work)
-
48877613A02 CONNECTOR ASSEMBLY, Weather Cap 6 PinCONNECTOR ASSEMBLY, Weather Cap 6 Pin
-
49830796A04 CONNECTOR ASSEMBLY, Weather Cap - MaleCONNECTOR ASSEMBLY, Weather Cap - Male
