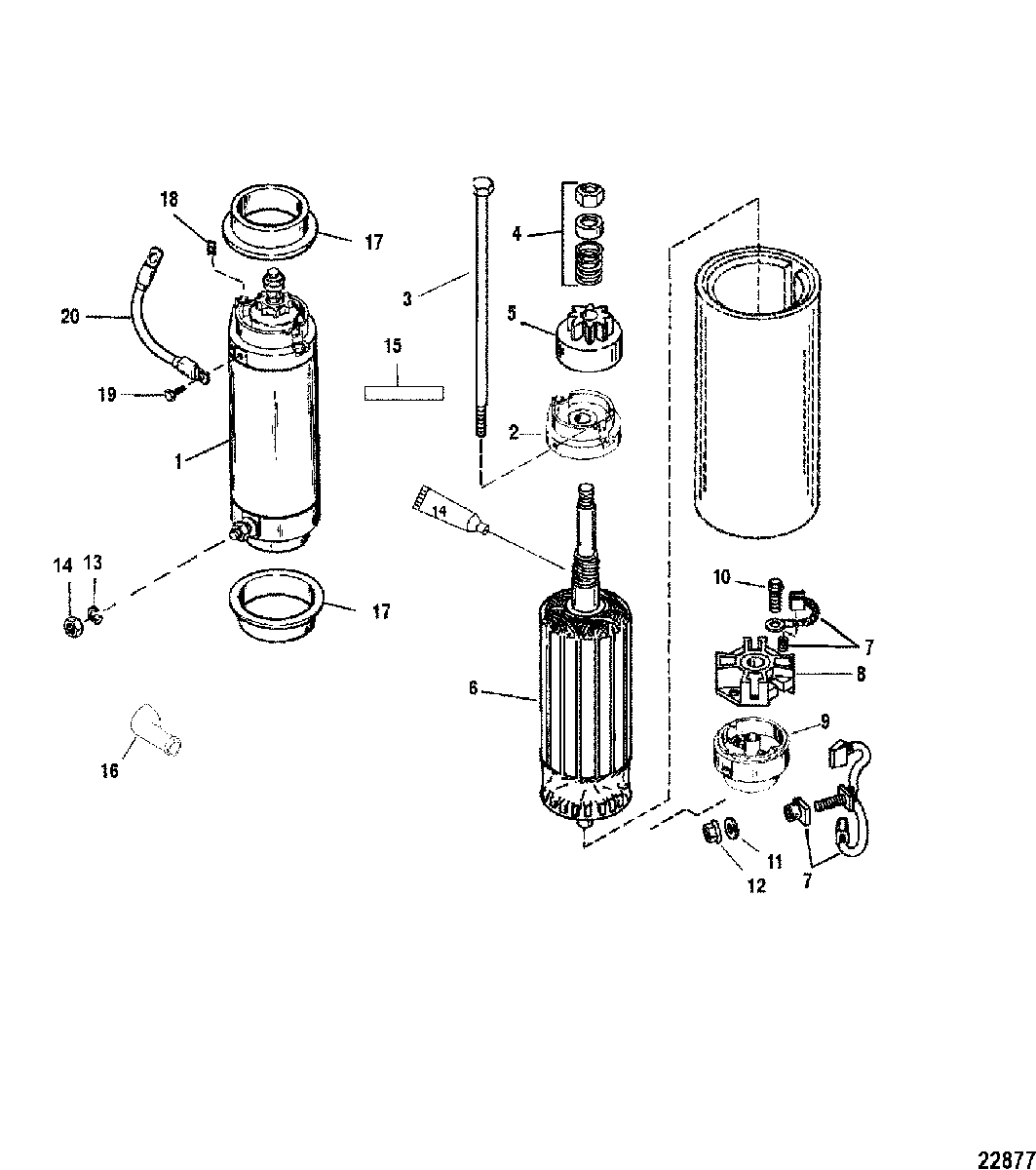

STARTER MOTOR(225-S/N-0T467441/250-S/N-0T467334 &BELOW) для Mariner - 250 (3.0L EFI) 0T409000 THRU 0T800999

  • №
    Артикул
    Название
  • 1
    50-898265013 STARTER MOTOR ASSEMBLY
    STARTER MOTOR ASSEMBLY
  • 2
    75660 PLATE
    PLATE
  • 3
    10-749681 THRU BOLT
    THRU BOLT
  • 4
    8236401 DRIVE KIT
    DRIVE KIT
  • 5
    898265015 PINION
    PINION
  • 6
    8236381 ARMATURE
    ARMATURE
  • 7
    898265016 BRUSH/SPRING KIT
    BRUSH/SPRING KIT
  • 8
    898265014 HOLDER
    HOLDER
  • 9
    15386001 END CAP
    END CAP
  • 10
    F15158 SCREW
    SCREW
  • 11
    13-26992 LOCKWASHER, (.250) Stainless Steel
    LOCKWASHER, (.250) Stainless Steel
  • 12
    11-64015 NUT, (.250-20)
    NUT, (.250-20)
  • 13
    13-26992 LOCKWASHER, (.250) Stainless Steel
    LOCKWASHER, (.250) Stainless Steel
  • 14
    11-20890 NUT, (.250-20)
    NUT, (.250-20)
  • 15
    37-8272822 DECAL, Warning, High Voltage
    DECAL, Warning, High Voltage
  • 16
    85-8500673 BOOT, Insulator - Yellow
    BOOT, Insulator - Yellow
  • 17
    23-8M0034918 COLLAR
    COLLAR
  • 18
    8M0043376 STOP, Rubber
    STOP, Rubber
  • 19
    10-69035 SCREW AND LOCKWASHER, (.250-20 x .625) Stainless Steel
    SCREW AND LOCKWASHER, (.250-20 x .625) Stainless Steel
  • 20
    84-93388A1 CABLE ASSEMBLY, (6.00 Inches) Black
    CABLE ASSEMBLY, (6.00 Inches) Black
