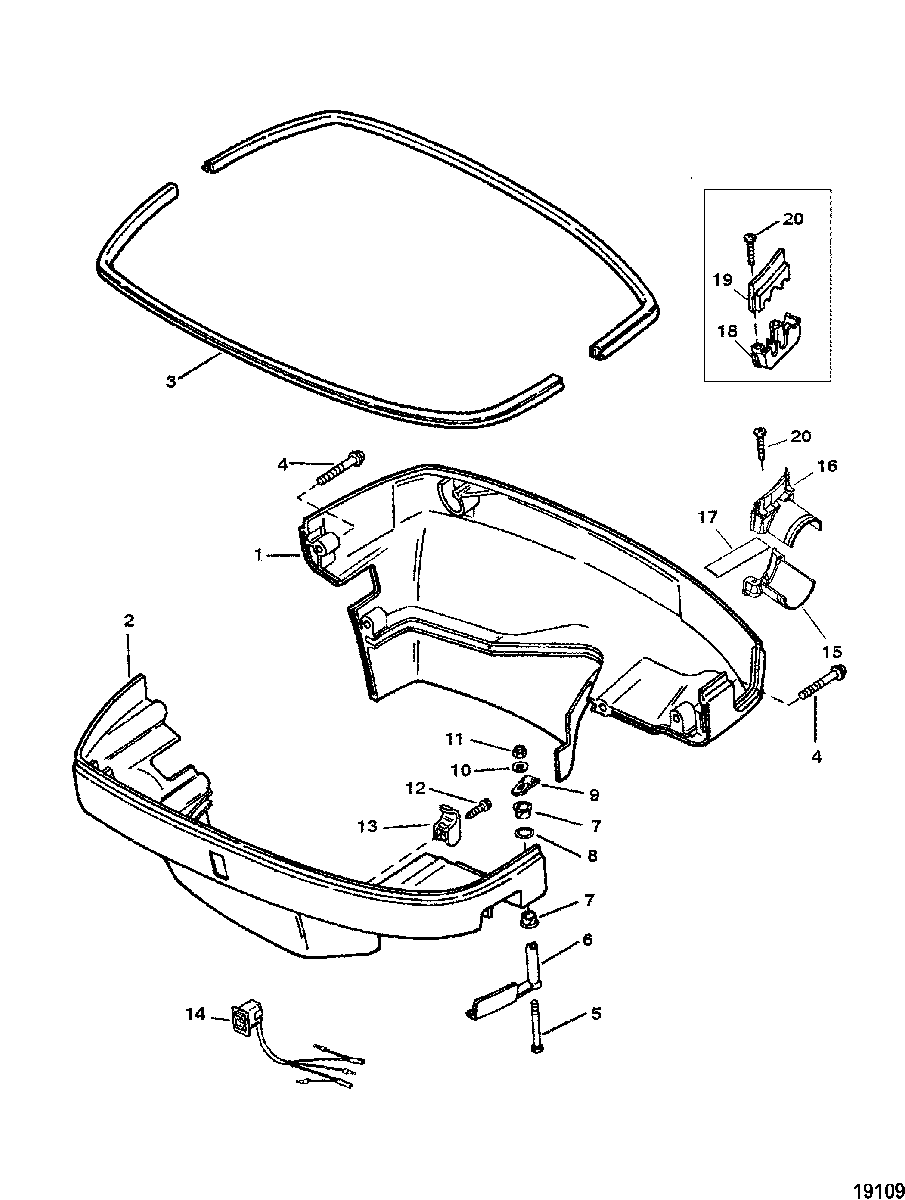

Bottom Cowl для Mariner - 250 (3.0L EFI) 0G760300 THRU 0T408999

  • №
    Артикул
    Название
  • 1
    4009-818448A1 BOTTOM COWL
    (PORT)
    BOTTOM COWL
    (PORT)
  • 2
    4009-818447A1 BOTTOM COWL
    (STBD.)
    BOTTOM COWL
    (STBD.)
  • 3
    8M0109217 SEAL, Cowl (41.00 Inches)
    SEAL, Cowl (41.00 Inches)
  • 4
    10-82130040 SCREW, (M6 x 40)
    SCREW, (M6 x 40)
  • 5
    10-824868 SCREW, (M6 x 75)
    SCREW, (M6 x 75)
  • 6
    889740A02 FRONT HANDLE, Black
    FRONT HANDLE, Black
  • 7
    23-335891 BUSHING
    BUSHING
  • 8
    25-48462 O-RING, (.614 x .070)
    O-RING, (.614 x .070)
  • 9
    8219423 PAWL
    PAWL
  • 10
    12-69057 WASHER, (.281 x .734 x .063)
    WASHER, (.281 x .734 x .063)
  • 11
    11-401366 NUT, (M6) Stainless Steel
    NUT, (M6) Stainless Steel
  • 12
    10-8214281 SCREW, (#10-16 x .625)
    SCREW, (#10-16 x .625)
  • 13
    54-822873 CLIP
    CLIP
  • 14
    87-8M0042301 SWITCH ASSEMBLY
    SWITCH ASSEMBLY
  • 15
    859435T INSERT (LOWER)
    SN# 0G960500 & Up
    INSERT (LOWER)
    SN# 0G960500 & Up
  • 16
    859434T INSERT (UPPER)
    SN# 0G960500 & Up
    INSERT (UPPER)
    SN# 0G960500 & Up
  • 17
    859343 FOAM
    SN# 0G960500 & Up
    FOAM
    SN# 0G960500 & Up
  • 18
    54-822024 CLAMP (LOWER)
    SN# 0G960499 & Below
    CLAMP (LOWER)
    SN# 0G960499 & Below
  • 19
    54-822023 CLAMP (UPPER)
    SN# 0G960499 & Below
    CLAMP (UPPER)
    SN# 0G960499 & Below
  • 20
    10-92799 SCREW, (#10-16 x 1.12)
    SCREW, (#10-16 x 1.12)
