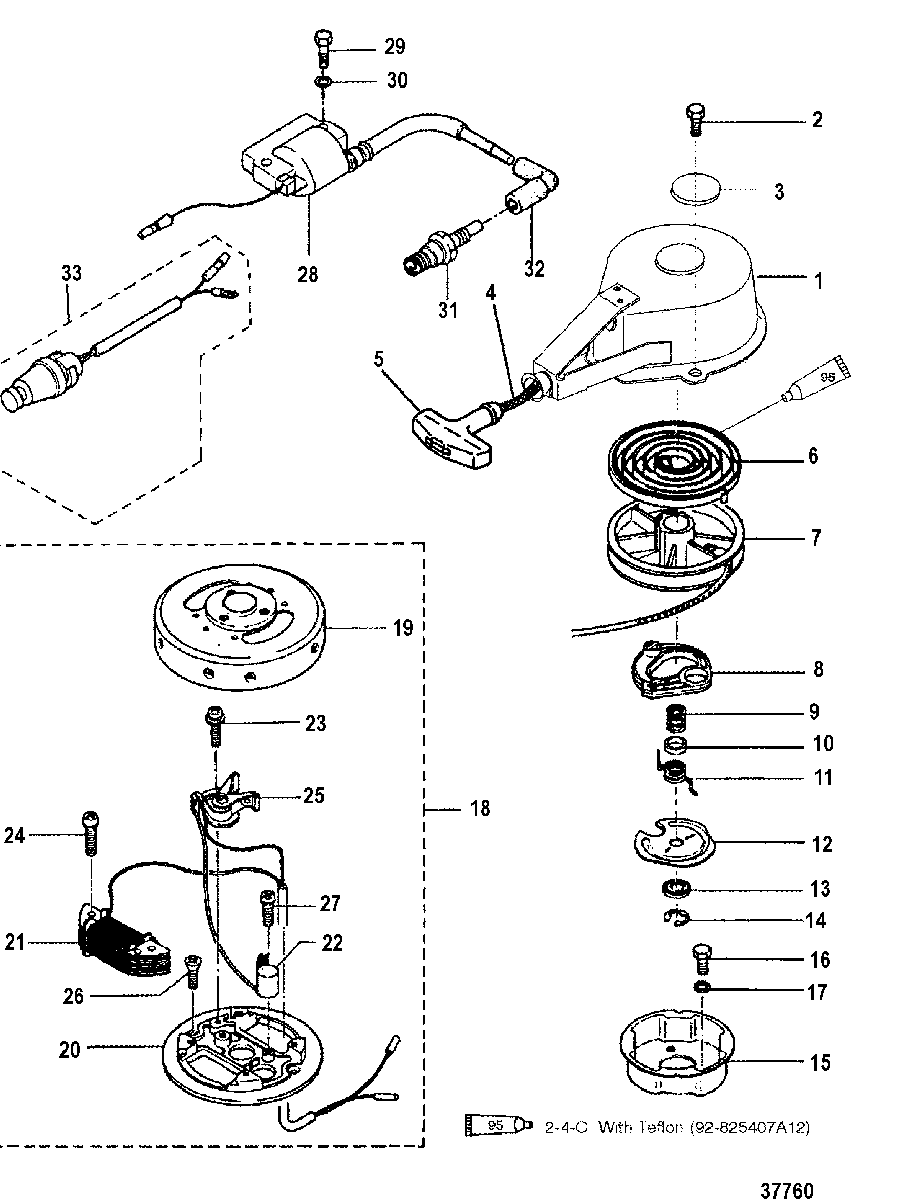

RECOIL AND IGNITION COMPONENTS(BREAKER POINT IGNITION) для Mariner - 2.5 0A855097 THRU 0G710612

  • №
    Артикул
    Название
  • 1
    815067 HOUSING, Starter
    (BLACK)
    HOUSING, Starter
    (BLACK)
  • 1
    95244 HOUSING, Starter
    (MARINER GRAY)
    HOUSING, Starter
    (MARINER GRAY)
  • 2
    10-16828 BOLT
    BOLT
  • 3
    95251 PLUG
    PLUG
  • 4
    50-12066Q10 ROPE
    ROPE
  • 5
    95249 HANDLE, Starter
    HANDLE, Starter
  • 6
    24-95284 SPRING
    SPRING
  • 7
    95245 SHEAVE, Starter
    SHEAVE, Starter
  • 8
    95246 RATCHET
    RATCHET
  • 9
    24-95315 SPRING
    SPRING
  • 10
    95247 COVER
    COVER
  • 11
    24-95316 SPRING
    SPRING
  • 12
    95248 FRICTION PLATE
    FRICTION PLATE
  • 13
    12-95317 THRUST WASHER
    THRUST WASHER
  • 14
    53-95318 E RING
    E RING
  • 15
    95250 PULLEY
    PULLEY
  • 16
    10-16828 BOLT
    BOLT
  • 17
    13-16818 LOCKWASHER
    LOCKWASHER
  • 18
    262-811595 FLYWHEEL MAGNETO ASSEMBLY
    CASTING # FOT0137
    FLYWHEEL MAGNETO ASSEMBLY
    CASTING # FOT0137
  • 19
    262-9184 FLYWHEEL
    CASTING # FOT0137
    FLYWHEEL
    CASTING # FOT0137
  • 20
    95239 BASE
    CASTING # FOT0137
    BASE
    CASTING # FOT0137
  • 21
    95241T COIL, Exciter
    CASTING # FOT0137
    COIL, Exciter
    CASTING # FOT0137
  • 22
    811598 CONDENSER
    CASTING # FOT0137
    CONDENSER
    CASTING # FOT0137
  • 18
    262-811595 FLYWHEEL MAGNETO
    CASTING # FOT30071
    FLYWHEEL MAGNETO
    CASTING # FOT30071
  • 19
    262-811596 FLYWHEEL
    CASTING # FOT30071
    FLYWHEEL
    CASTING # FOT30071
  • 20
    811597 BASE
    CASTING # FOT30071
    BASE
    CASTING # FOT30071
  • 21
    811599T COIL, Exciter
    CASTING # FOT30071
    COIL, Exciter
    CASTING # FOT30071
  • 22
    811598 CONDENSER
    CASTING # FOT30071
    CONDENSER
    CASTING # FOT30071
  • 23
    10-95311 SCREW
    CASTING # FOT30071
    SCREW
    CASTING # FOT30071
  • 24
    10-95313 SCREW
    CASTING # FOT30071
    SCREW
    CASTING # FOT30071
  • 25
    95237 BREAKER
    CASTING # FOT30071
    BREAKER
    CASTING # FOT30071
  • 26
    10-95310 SCREW
    CASTING # FOT30071
    SCREW
    CASTING # FOT30071
  • 27
    10-16821 SCREW
    CASTING # FOT30071
    SCREW
    CASTING # FOT30071
  • 28
    95242T COIL, Ignition
    COIL, Ignition
  • 29
    10-95314 SCREW
    SCREW
  • 30
    13-16818 LOCKWASHER
    LOCKWASHER
  • 31
    33-19796 SPARK PLUG
    (NGK# BPR-6HS-10)
    SPARK PLUG
    (NGK# BPR-6HS-10)
  • 32
    85-95282A1 CAP KIT
    CAP KIT
  • 33
    87-823037A04 SWITCH ASSEMBLY, Emergency Stop
    SWITCH ASSEMBLY, Emergency Stop
