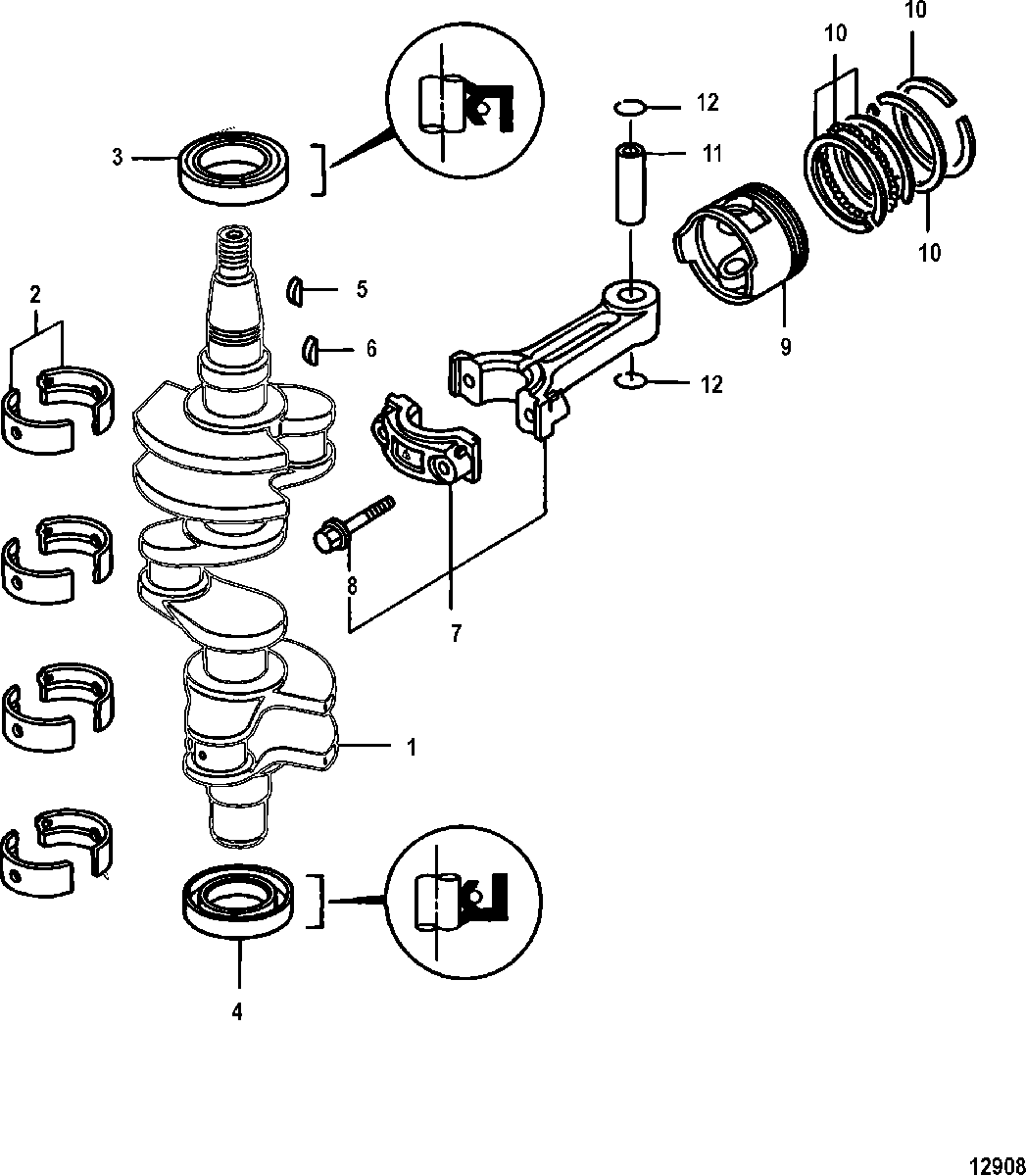

Crankshaft, Pistons and Connecting Rods для Mariner - 25 EFI (3 CYL.)(4-STROKE) 0R106999 & Up
-
№АртикулНазвание
-
1401-889246T32 CRANKSHAFT ASSEMBLY
SN# 0R130205 & BelowCRANKSHAFT ASSEMBLY
SN# 0R130205 & Below -
1401-889246T32 CRANKSHAFT ASSEMBLY
SN# 0R130206 & UpCRANKSHAFT ASSEMBLY
SN# 0R130206 & Up -
223-898101T08 BEARING, Thrust - RedBEARING, Thrust - Red
-
223-898101T07 BEARING, Thrust - BlueBEARING, Thrust - Blue
-
326-855681002 SEAL, Oil, UpperSEAL, Oil, Upper
-
426-898101123 SEAL, Oil, LowerSEAL, Oil, Lower
-
528-160531 KEYKEY
-
628-825666001 KEY, Timing PulleyKEY, Timing Pulley
-
7600-8M0124940 CONNECTING ROD ASSEMBLYCONNECTING ROD ASSEMBLY
-
810-8035092 BOLTBOLT
-
9713-898103A08 PISTON ASSEMBLYPISTON ASSEMBLY
-
1039-898103T35 RING SET, Piston
Services one pistonRING SET, Piston
Services one piston -
1141-898103113 PIN, PistonPIN, Piston
-
1253-160573 E RINGE RING
-
-889246T30 SHORT BLOCK
30 Horsepower SN# 0R122288 & BelowSHORT BLOCK
30 Horsepower SN# 0R122288 & Below -
-889246T30 SHORT BLOCK
30 Horsepower SN# 0R122289 & UpSHORT BLOCK
30 Horsepower SN# 0R122289 & Up -
-898103T34 SHORT BLOCK
25 HorsepowerSHORT BLOCK
25 Horsepower -
-27-8M0079064 GASKET SET, PowerheadGASKET SET, Powerhead
