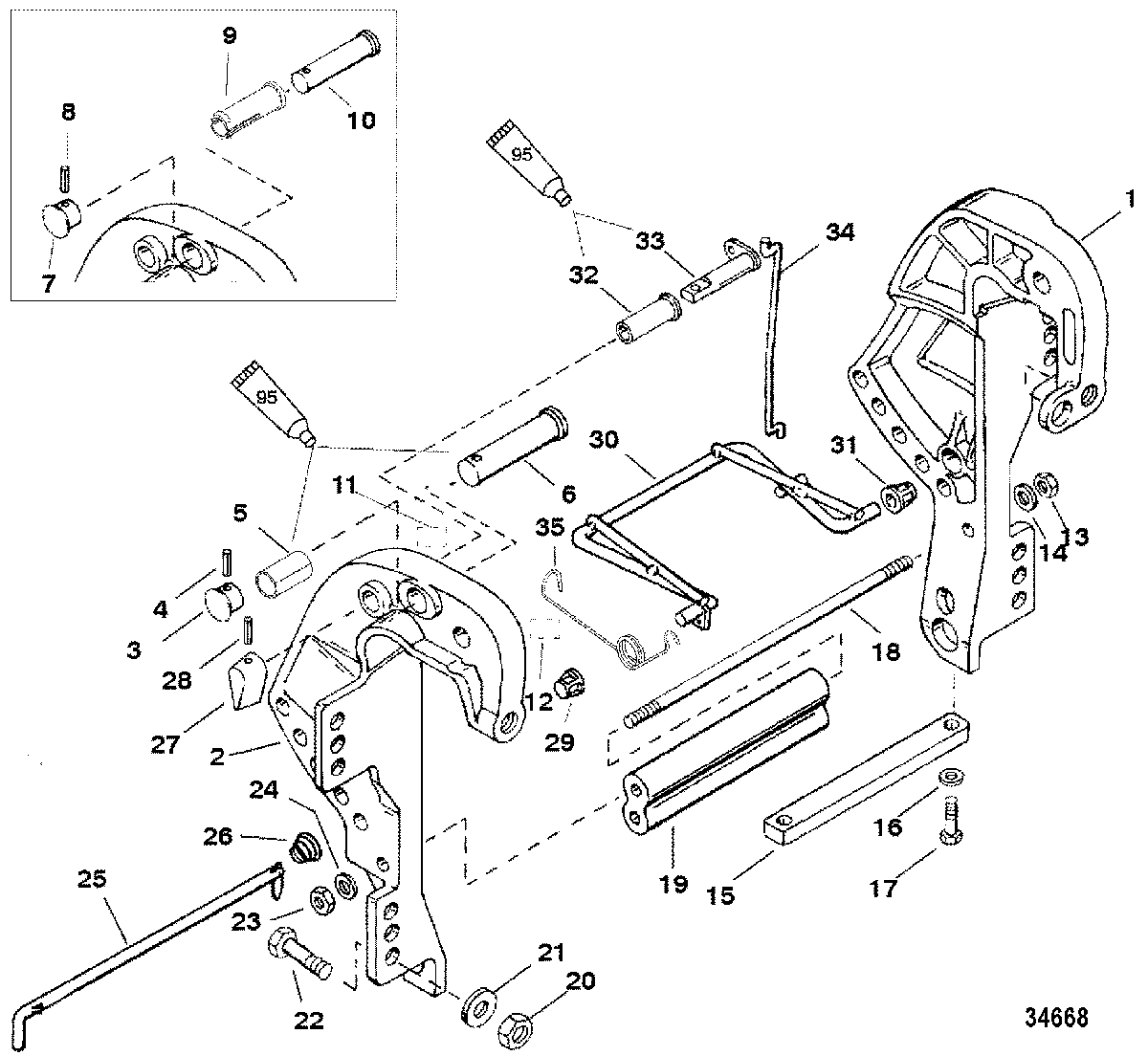

Clamp Bracket, Remote Control для Mariner - 25 (4-STROKE) 0G760300 THRU 0T408999

  • №
    Артикул
    Название
  • 1
    3411-821773T1 CLAMP BRACKET
    Port-Black
    CLAMP BRACKET
    Port-Black
  • 1
    3411-821773A2 CLAMP BRACKET
    Port-Gray
    CLAMP BRACKET
    Port-Gray
  • 1
    3411-821773A3 CLAMP BRACKET
    Port-Black-Grand Canyon
    CLAMP BRACKET
    Port-Black-Grand Canyon
  • 2
    3412-821774T8 CLAMP BRACKET
    Starboard-Black-Use with .56 O.D. Reference #10
    CLAMP BRACKET
    Starboard-Black-Use with .56 O.D. Reference #10
  • 2
    3412-821774T8 CLAMP BRACKET
    Starboard-Gray-Use with .56 O.D. Reference #10
    CLAMP BRACKET
    Starboard-Gray-Use with .56 O.D. Reference #10
  • 2
    3412-821774T6 CLAMP BRACKET
    Starboard-Black-Grand Canyon-Use with .56 O.D. Reference #10
    CLAMP BRACKET
    Starboard-Black-Grand Canyon-Use with .56 O.D. Reference #10
  • 2
    3412-821774T8 CLAMP BRACKET
    Starboard-Black-Use with .75 O.D. Reference #6
    CLAMP BRACKET
    Starboard-Black-Use with .75 O.D. Reference #6
  • 2
    3412-821774T8 CLAMP BRACKET
    Starboard-Gray-Use with .75 O.D. Reference #6
    CLAMP BRACKET
    Starboard-Gray-Use with .75 O.D. Reference #6
  • 2
    3412-821774T6 CLAMP BRACKET
    Starboard-Black-Grand Canyon-Use with .75 O.D. Reference #6
    CLAMP BRACKET
    Starboard-Black-Grand Canyon-Use with .75 O.D. Reference #6
  • 3
    8224011 CAP
    (O.D. of Reference #6 is .75 and Reference #5 is not Flanged
    CAP
    (O.D. of Reference #6 is .75 and Reference #5 is not Flanged
  • 4
    17-25810 PIN
    (O.D. of Reference #6 is .75 and Reference #5 is not Flanged
    PIN
    (O.D. of Reference #6 is .75 and Reference #5 is not Flanged
  • 5
    23-86637 BEARING
    (O.D. of Reference #6 is .75 and Reference #5 is not Flanged
    BEARING
    (O.D. of Reference #6 is .75 and Reference #5 is not Flanged
  • 6
    17-8224002 PIN
    (O.D. of Reference #6 is .75 and Reference #5 is not Flanged
    PIN
    (O.D. of Reference #6 is .75 and Reference #5 is not Flanged
  • 7
    822401 CAP
    (O.D. of Reference #10 is .56 and Reference #9 is Flanged
    CAP
    (O.D. of Reference #10 is .56 and Reference #9 is Flanged
  • 8
    17-25319 PIN, (.125 x 0.75 Inches)
    (O.D. of Reference #10 is .56 and Reference #9 is Flanged
    PIN, (.125 x 0.75 Inches)
    (O.D. of Reference #10 is .56 and Reference #9 is Flanged
  • 9
    23-823589 BUSHING
    (O.D. of Reference #10 is .56 and Reference #9 is Flanged
    BUSHING
    (O.D. of Reference #10 is .56 and Reference #9 is Flanged
  • 10
    17-8224001 PIN
    (O.D. of Reference #10 is .56 and Reference #9 is Flanged
    PIN
    (O.D. of Reference #10 is .56 and Reference #9 is Flanged
  • 11
    NSS NOT SOLD SEPARATE, Decal-Shallow Water
    NOT SOLD SEPARATE, Decal-Shallow Water
  • 12
    37-830253 DECAL, Tilt Lock
    DECAL, Tilt Lock
  • 13
    11-40140 NUT, (M10)
    NUT, (M10)
  • 14
    12-4002319 WASHER
    WASHER
  • 15
    97-8252711 ANODE
    Non Grand Canyon
    ANODE
    Non Grand Canyon
  • 16
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel
    Non Grand Canyon
    WASHER, (.281 x .500 x .060) Stainless Steel
    Non Grand Canyon
  • 17
    10-4000330 SCREW, (M6 x 25)
    Non Grand Canyon
    SCREW, (M6 x 25)
    Non Grand Canyon
  • 18
    16-8M0034459 STUD, (M10 x 277)
    STUD, (M10 x 277)
  • 19
    23-824952 SPACER
    SPACER
  • 20
    11-82671117 NUT, (.500-20)
    NUT, (.500-20)
  • 21
    12-28421 WASHER, (1.5 x 3.05 x 0.13) Stainless Steel
    WASHER, (1.5 x 3.05 x 0.13) Stainless Steel
  • 22
    10-814259 SCREW, (.500-20 x 4.00)
    SCREW, (.500-20 x 4.00)
  • 20
    11-82671117 NUT, (.500-20)
    Top-Grand Canyon
    NUT, (.500-20)
    Top-Grand Canyon
  • 20
    11-4013710 NUT, (M10)
    Bottom-Grand Canyon
    NUT, (M10)
    Bottom-Grand Canyon
  • 21
    12-28421 WASHER, (1.5 x 3.05 x 0.13) Stainless Steel
    Top-Grand Canyon
    WASHER, (1.5 x 3.05 x 0.13) Stainless Steel
    Top-Grand Canyon
  • 21
    12-4002319 WASHER
    Bottom-Grand Canyon
    WASHER
    Bottom-Grand Canyon
  • 22
    10-814259 SCREW, (.500-20 x 4.00)
    Top-Grand Canyon
    SCREW, (.500-20 x 4.00)
    Top-Grand Canyon
  • 22
    10-826110 SCREW
    Bottom-Grand Canyon
    SCREW
    Bottom-Grand Canyon
  • 23
    11-40140 NUT, (M10)
    Non Grand Canyon
    NUT, (M10)
    Non Grand Canyon
  • 24
    12-4002319 WASHER
    WASHER
  • 25
    17-8M0026103 PIN ASSEMBLY, Tilt Lock
    PIN ASSEMBLY, Tilt Lock
  • 26
    24-821461 SPRING
    SPRING
  • 27
    822409 LEVER
    LEVER
  • 28
    17-25319 PIN, (.125 x 0.75 Inches)
    PIN, (.125 x 0.75 Inches)
  • 29
    23-824858 BUSHING, Plastic
    BUSHING, Plastic
  • 30
    878580 ROD, Shallow Water Drive
    ROD, Shallow Water Drive
  • 31
    23-824858 BUSHING, Plastic
    BUSHING, Plastic
  • 32
    23-823812 BUSHING
    BUSHING
  • 33
    822411 ARM
    ARM
  • 34
    878563 LINK ROD
    LINK ROD
  • 35
    24-832085A1 SPRING
    SPRING
