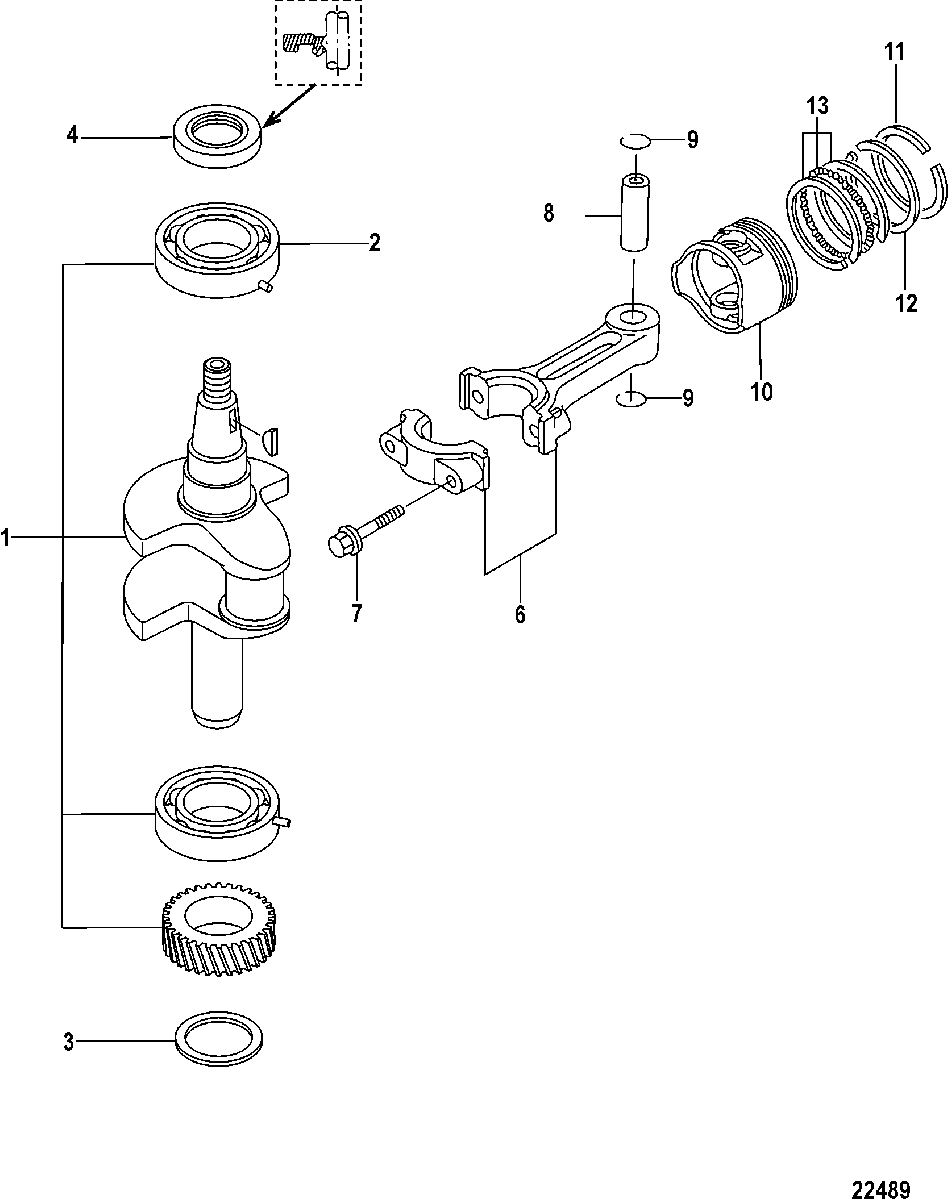

Crankshaft, Piston and Connecting Rod для Mariner - 2.5 (4-STROKE) Carb 0R131842 & Up

  • №
    Артикул
    Название
  • 1
    401-898103T45 CRANKSHAFT ASSEMBLY
    CRANKSHAFT ASSEMBLY
  • 2
    30-16049 BEARING, Ball
    BEARING, Ball
  • 3
    898101283 THRUST PLATE
    THRUST PLATE
  • 4
    26-898101285 SEAL, Oil
    SEAL, Oil
  • 5
    28-95229 KEY
    KEY
  • 6
    600-8M0124934 CONNECTING ROD ASSEMBLY
    CONNECTING ROD ASSEMBLY
  • 7
    10-898101284 BOLT
    BOLT
  • 8
    41-825713002 PIN, Piston
    SN# 0R184082 & Below
    PIN, Piston
    SN# 0R184082 & Below
  • 8
    41-825713002 PIN, Piston
    SN# 0R184083 & Up
    PIN, Piston
    SN# 0R184083 & Up
  • 9
    53-16057 CLIP
    CLIP
  • 10
    713-898103A46 PISTON ASSEMBLY
    PISTON ASSEMBLY
  • 11
    39-803678T05 RING SET, Piston
    RING SET, Piston
  • 12
    NSS NOT SOLD SEPARATE, Piston Ring - Second
    NOT SOLD SEPARATE, Piston Ring - Second
  • 13
    NSS NOT SOLD SEPARATE, Oil Ring-Piston
    NOT SOLD SEPARATE, Oil Ring-Piston
  • -
    898103T72 SHORT BLOCK
    SN# 0R318095 & Below
    SHORT BLOCK
    SN# 0R318095 & Below
  • -
    8M0145827 SHORT BLOCK
    SN# 0R318096 & Up
    SHORT BLOCK
    SN# 0R318096 & Up
  • -
    8M0145827 SHORT BLOCK
    EPA Models Only SN# 0R448033 & Up
    SHORT BLOCK
    EPA Models Only SN# 0R448033 & Up
