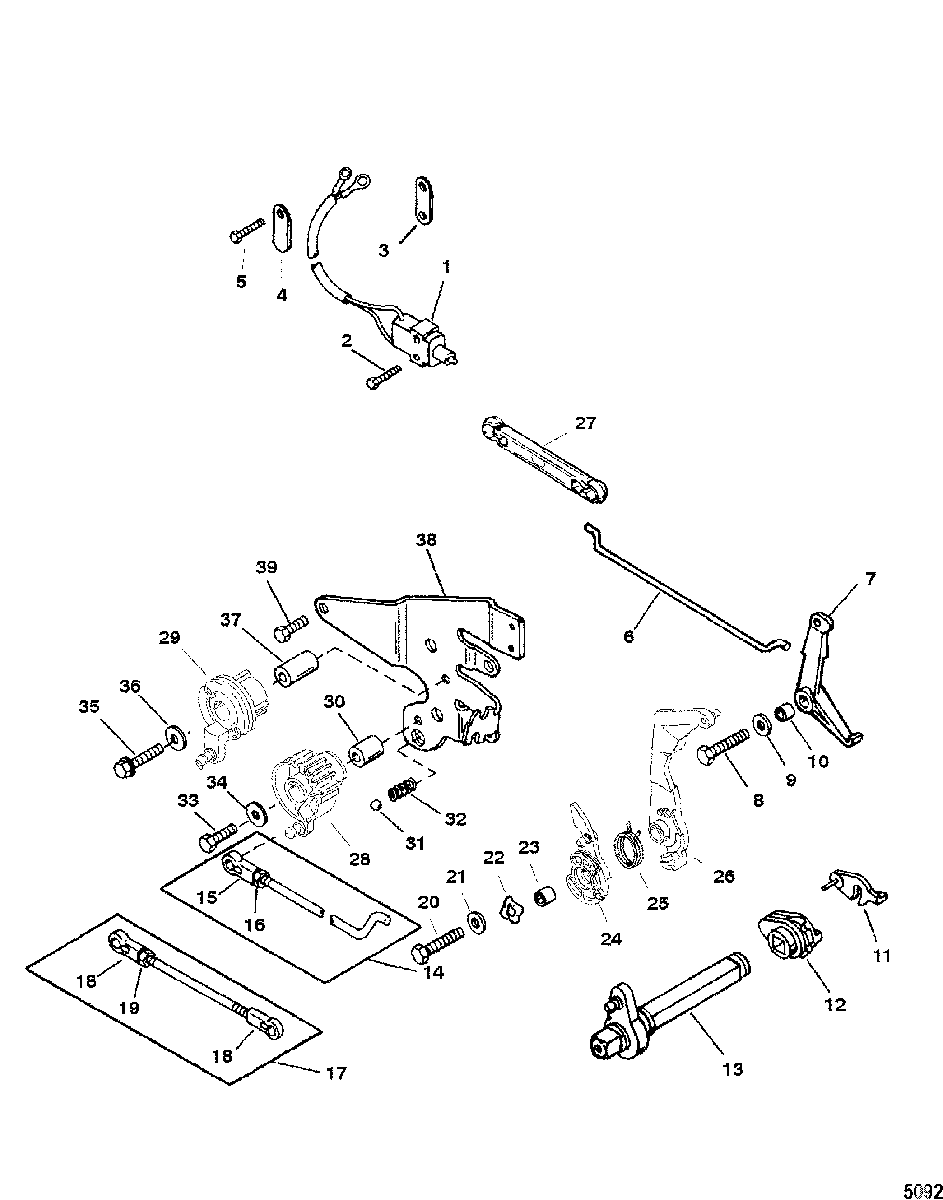

Throttle and Shift Linkage(Tiller Handle Shift) для Mariner - 25, 25 MARATHON, SUPER 15 (2 CYL.) 0P017000 THRU 0P325499
-
№АртикулНазвание
-
187-813960A4 SWITCH ASSEMBLY
(Local Electric)SWITCH ASSEMBLY
(Local Electric) -
210-88075020 SCREW, (M3.5 x 20) Stainless Steel
(Local Electric)SCREW, (M3.5 x 20) Stainless Steel
(Local Electric) -
3824923 PLATE
(Local Electric)PLATE
(Local Electric) -
454-12627 STRAP
(Local Electric)STRAP
(Local Electric) -
510-40011107 SCREW, (M5 x 16) Stainless Steel
(Local Electric)SCREW, (M5 x 16) Stainless Steel
(Local Electric) -
642161 LINK INTERLOCKLINK INTERLOCK
-
78236103 LEVER, Interlock ControlLEVER, Interlock Control
-
810-4000330 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
912-69056 WASHER, (.255 x .620 x .030) Stainless SteelWASHER, (.255 x .620 x .030) Stainless Steel
-
1023-823806 BUSHINGBUSHING
-
11823862 LEVER, BackplateLEVER, Backplate
-
128238632 LEVER, Horizontal Shift Shaft, PortLEVER, Horizontal Shift Shaft, Port
-
138236011 SHIFT SHAFT, HorizontalSHIFT SHAFT, Horizontal
-
14881228A2 SHIFT LINK ASSEMBLYSHIFT LINK ASSEMBLY
-
15817428 SOCKETSOCKET
-
1611-45076 NUT, (#10-32) BrassNUT, (#10-32) Brass
-
17881227A1 LINK ASSEMBLY, ThrottleLINK ASSEMBLY, Throttle
-
18817428 SOCKETSOCKET
-
1911-45076 NUT, (#10-32) BrassNUT, (#10-32) Brass
-
2010-4000330 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
2112-65567 WASHER, (.265 x .750 x .048) Stainless SteelWASHER, (.265 x .750 x .048) Stainless Steel
-
2213-99611 WAVE WASHERWAVE WASHER
-
2323-823806 BUSHINGBUSHING
-
248319781 CAM, ThrottleCAM, Throttle
-
2524-42164 SPRINGSPRING
-
26888191 SPARK ARMSPARK ARM
-
278327471 TIMING LINKTIMING LINK
-
288238083 SECONDARY GEARSECONDARY GEAR
-
298238092 PRIMARY GEARPRIMARY GEAR
-
3023-823806 BUSHINGBUSHING
-
3130-93008 BALLBALL
-
3224-930061 SPRINGSPRING
-
3310-4000329 SCREW, (M6 x 20)SCREW, (M6 x 20)
-
3412-69056 WASHER, (.255 x .620 x .030) Stainless SteelWASHER, (.255 x .620 x .030) Stainless Steel
-
3510-4000331 SCREW, (M6 x 30)SCREW, (M6 x 30)
-
3612-69056 WASHER, (.255 x .620 x .030) Stainless SteelWASHER, (.255 x .620 x .030) Stainless Steel
-
3723-823807 BUSHINGBUSHING
-
388238102 CONTROL PLATFORMCONTROL PLATFORM
-
3910-4006731 SCREW, (M6 x 16)SCREW, (M6 x 16)
