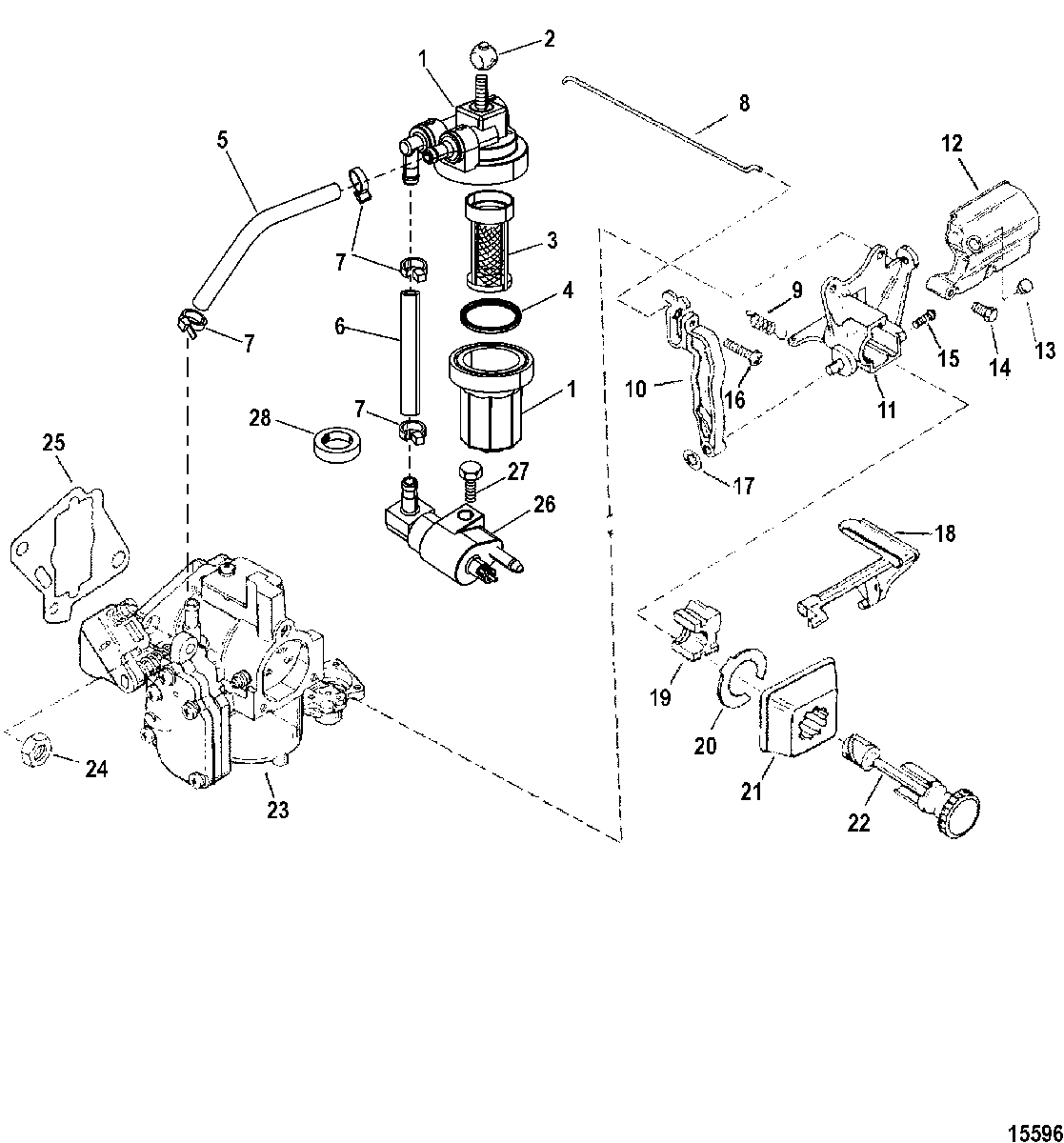

Fuel System Components(USA-1B153168/BEL-0P365662 and up) для Mariner - 25 (2 CYL.) 0P325500 & Up

  • №
    Артикул
    Название
  • 1
    35-889527A07 FILTER KIT
    SN# 0P365662 & Up
    FILTER KIT
    SN# 0P365662 & Up
  • 1
    35-889527A07 FILTER KIT
    SN# 1B153168 & Up
    FILTER KIT
    SN# 1B153168 & Up
  • 2
    858731 BALL, Fuel Filter
    BALL, Fuel Filter
  • 3
    35-896375K01 FILTER KIT
    (Mercury Brand)
    FILTER KIT
    (Mercury Brand)
  • 3
    35-896375Q01 FILTER KIT
    (Quicksilver Brand)
    FILTER KIT
    (Quicksilver Brand)
  • 4
    25-98277001 SEAL
    SEAL
  • 5
    32-8M0108355 HOSE, (57.00 Inches Bulk) (Cut to 6.00 Inch Length)
    HOSE, (57.00 Inches Bulk) (Cut to 6.00 Inch Length)
  • 6
    32-8M0108355 HOSE, (57.00 Inches Bulk) (Cut to 5.50 Inch Length)
    HOSE, (57.00 Inches Bulk) (Cut to 5.50 Inch Length)
  • 7
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 8
    127332 WIRE, Fast Idle
    WIRE, Fast Idle
  • 9
    24-11277 SPRING, Tension
    SPRING, Tension
  • 10
    128053 LEVER, Fast Idle
    LEVER, Fast Idle
  • 11
    12803 BRACKET, Primer
    BRACKET, Primer
  • 12
    174421 COVER, Carburetor
    COVER, Carburetor
  • 13
    19-47579 PLUG
    PLUG
  • 14
    10-40011110 SCREW, (M5 x 30) Stainless Steel
    SCREW, (M5 x 30) Stainless Steel
  • 15
    10-79965 SCREW, (#8-32 x .500) Stainless Steel
    SCREW, (#8-32 x .500) Stainless Steel
  • 16
    10-12110 SCREW, (#6-32 x .750)
    SCREW, (#6-32 x .750)
  • 17
    11-821979 NUT
    NUT
  • 18
    112731 LEVER, Primer
    LEVER, Primer
  • 19
    11280 CAM BLOCK
    CAM BLOCK
  • 20
    53-11278 CLIP, Retaining
    CLIP, Retaining
  • 21
    172291 BEZEL, Choke
    BEZEL, Choke
  • 22
    128022 PRIMER KNOB
    PRIMER KNOB
  • 23
    1392-823907T12 CARBURETOR, (WMC-85A)
    (20 Hp)
    CARBURETOR, (WMC-85A)
    (20 Hp)
  • 23
    1390-817405T23 CARBURETOR, (WMC-87A)
    (25 Hp/Jet 20)
    CARBURETOR, (WMC-87A)
    (25 Hp/Jet 20)
  • 24
    11-400213 NUT, (M8) Stainless Steel
    NUT, (M8) Stainless Steel
  • 25
    27-192061 GASKET, Carburetor
    GASKET, Carburetor
  • 26
    22-15781A9 CONNECTOR KIT, Fuel
    CONNECTOR KIT, Fuel
  • 27
    10-4000330 SCREW, (M6 x 25)
    SCREW, (M6 x 25)
  • 28
    25-18202 GROMMET
    GROMMET
  • -
    27-41499A88 GASKET SET
    GASKET SET
  • -
    804946T02 POWERHEAD ASSEMBLY
    POWERHEAD ASSEMBLY
