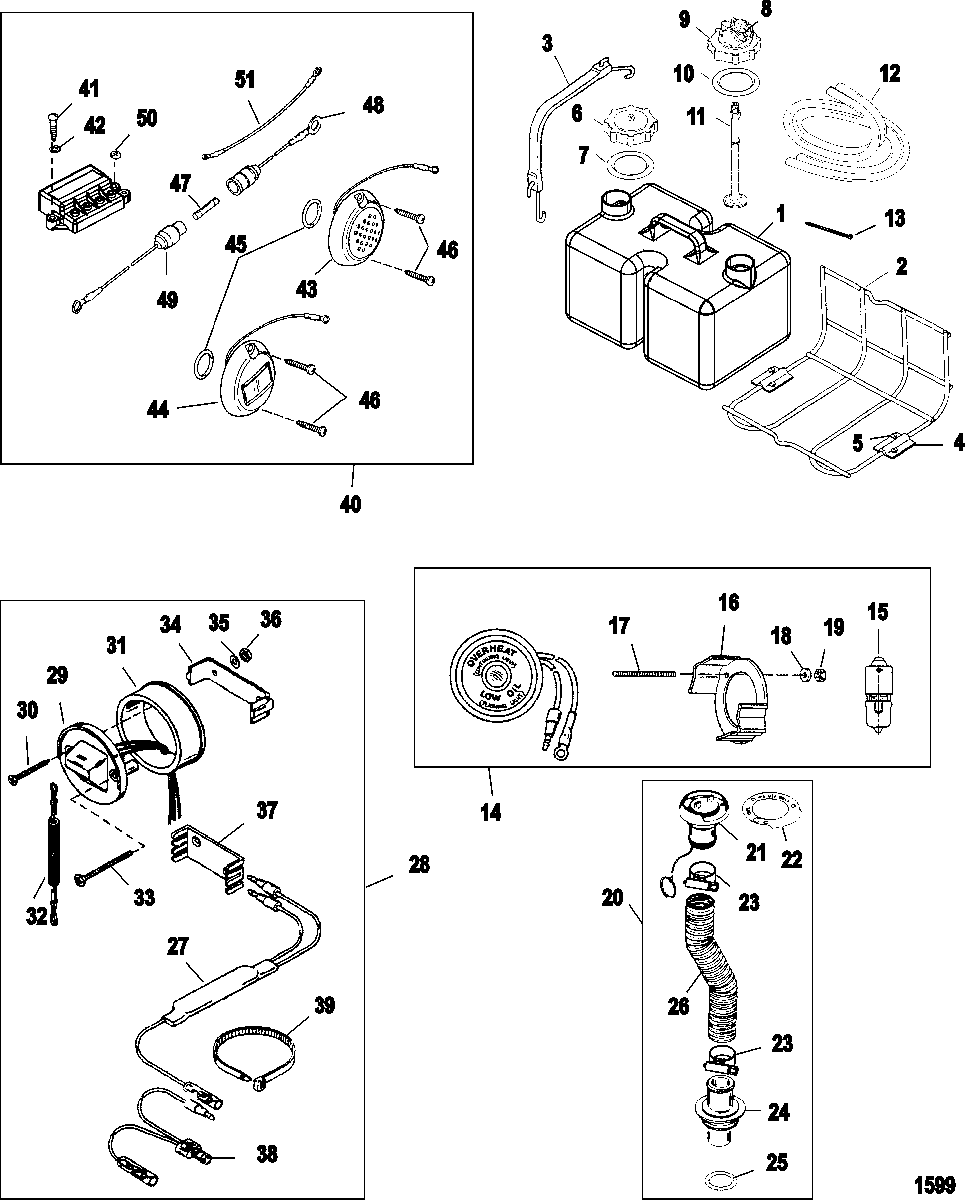

Accessories для Mariner - 225 (DFI) 3.0L 1B417702 THRU 1B504988

  • №
    Артикул
    Название
  • -
    87-8M0117133 SWITCH KIT, Start/Stop - Triple (Triple Engine)
    SWITCH KIT, Start/Stop - Triple (Triple Engine)
  • -
    22-852400 FLUSH COUPLING
    FLUSH COUPLING
  • -
    44357Q2 FLUSHING ATTACHMENT
    FLUSHING ATTACHMENT
  • -
    881150Q1 FLUSH KIT, Dual Water Pick Up
    FLUSH KIT, Dual Water Pick Up
  • -
    32-825191A03 HOSE KIT, Rigging
    HOSE KIT, Rigging
  • -
    79-8M0063203 TACH/SPEED SINGE ENGINE HELM KIT, SC1000 Gray Face
    TACH/SPEED SINGE ENGINE HELM KIT, SC1000 Gray Face
  • -
    79-889223K32 TACH/SPEED SINGLE ENGINE HELM KIT, SC1000 White Face
    TACH/SPEED SINGLE ENGINE HELM KIT, SC1000 White Face
  • -
    79-8M6001270 TACHOMETER KIT, 0-7000 RPM Gray Face
    TACHOMETER KIT, 0-7000 RPM Gray Face
  • -
    79-889222K22 TACHOMETER KIT, 0-7000 RPM White Face
    TACHOMETER KIT, 0-7000 RPM White Face
  • -
    41729A3 HOSE EXTENSION KIT
    HOSE EXTENSION KIT
  • -
    84-877561A2 HARNESS ASSEMBLY, Adaptor
    HARNESS ASSEMBLY, Adaptor
  • -
    859187A1 SENDER ASSEMBLY, Trim
    SENDER ASSEMBLY, Trim
  • -
    87-887979A2 SWITCH KIT, Tilt Limit
    SWITCH KIT, Tilt Limit
  • 1
    1257-8742A22 TANK ASSEMBLY, Remote Oil
    (Non-Ditital)
    TANK ASSEMBLY, Remote Oil
    (Non-Ditital)
  • 1
    1257-8742A21 TANK ASSEMBLY, Remote Oil
    (Digital)
    TANK ASSEMBLY, Remote Oil
    (Digital)
  • 2
    12335A1 BRACKET KIT
    BRACKET KIT
  • 3
    12323A1 CORD/HOOK KIT
    CORD/HOOK KIT
  • 4
    12320 BRACKET
    BRACKET
  • 5
    10-79968 SCREW, (#12-11 x .750)
    SCREW, (#12-11 x .750)
  • 6
    36-43298A2 CAP ASSEMBLY
    CAP ASSEMBLY
  • 7
    25-11332 O-RING, (2.225 x .210)
    O-RING, (2.225 x .210)
  • 8
    816190A4 OIL PICK UP ASSEMBLY, Without Sender
    (Non-Digital)
    OIL PICK UP ASSEMBLY, Without Sender
    (Non-Digital)
  • 8
    816190A5 OIL PICK UP ASSEMBLY, With Sender
    (Ditital)
    OIL PICK UP ASSEMBLY, With Sender
    (Ditital)
  • 9
    36-43298A2 CAP ASSEMBLY
    CAP ASSEMBLY
  • 10
    25-11332 O-RING, (2.225 x .210)
    O-RING, (2.225 x .210)
  • 11
    32-99802 TUBE
    TUBE
  • 12
    32-99439 HOSE, (114.00 Inches)
    HOSE, (114.00 Inches)
  • 13
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 14
    17334A2 VISUAL WARNING SYSTEM
    VISUAL WARNING SYSTEM
  • 15
    88-17429 LAMP
    LAMP
  • 16
    76424 BRACKET
    BRACKET
  • 17
    16-55422 STUD, (#10-32 x 2.00)
    STUD, (#10-32 x 2.00)
  • 18
    12-24676 WASHER, (.200 x .440 x .032)
    WASHER, (.200 x .440 x .032)
  • 19
    11-68219 NUT, (#10-32) Stainless Steel
    NUT, (#10-32) Stainless Steel
  • 20
    15969A3 DECK FILL KIT, Oil
    DECK FILL KIT, Oil
  • 21
    15969A13 DECK FILL KIT, Oil
    DECK FILL KIT, Oil
  • 22
    15966 PLATE
    PLATE
  • 23
    54-815504228 CLAMP, Worm Gear
    CLAMP, Worm Gear
  • 24
    15967 ADAPTOR, Oil Filler
    ADAPTOR, Oil Filler
  • 25
    25-11332 O-RING, (2.225 x .210)
    O-RING, (2.225 x .210)
  • 26
    32-850719 HOSE, (100.00 Feet Bulk)
    HOSE, (100.00 Feet Bulk)
  • 27
    84-898289A72 DIODE ASSEMBLY
    (Not Included with Kit Reference #28)
    DIODE ASSEMBLY
    (Not Included with Kit Reference #28)
  • 28
    87-19674Q2 SWITCH/LANYARD KIT
    SWITCH/LANYARD KIT
  • 29
    87-19674A1 SWITCH ASSEMBLY, Lanyard
    SWITCH ASSEMBLY, Lanyard
  • 30
    10-18303 SCREW, (.190-16 x 1.750) Stainless Steel
    SCREW, (.190-16 x 1.750) Stainless Steel
  • 31
    813679 ADAPTER
    ADAPTER
  • 32
    8M0092850 LANYARD ASSEMBLY
    LANYARD ASSEMBLY
  • 33
    10-32866 SCREW, (#10-32 x 2.00) Stainless Steel
    SCREW, (#10-32 x 2.00) Stainless Steel
  • 34
    18321 CLAMP, Mounting
    CLAMP, Mounting
  • 35
    12-24676 WASHER, (.200 x .440 x .032)
    WASHER, (.200 x .440 x .032)
  • 36
    11-68219 NUT, (#10-32) Stainless Steel
    NUT, (#10-32) Stainless Steel
  • 37
    79146 RETAINER
    RETAINER
  • 38
    84-11149A2 CABLE ASSEMBLY, (6.00 Inches)
    CABLE ASSEMBLY, (6.00 Inches)
  • 39
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 40
    88334A2 MERCATHODE KIT
    MERCATHODE KIT
  • 41
    10-22793 SCREW, (#9-14 x .875)
    SCREW, (#9-14 x .875)
  • 42
    12-30164 WASHER, (.192 x .375 x .0312) Stainless Steel
    WASHER, (.192 x .375 x .0312) Stainless Steel
  • 43
    72958A5 ELECTRODE ASSEMBLY
    ELECTRODE ASSEMBLY
  • 44
    97-72957A5 ANODE ASSEMBLY
    ANODE ASSEMBLY
  • 45
    25-21836 O-RING, (.796 x .139)
    O-RING, (.796 x .139)
  • 46
    10-87698 SCREW, (#10-16 x 1.250) Stainless Steel
    SCREW, (#10-16 x 1.250) Stainless Steel
  • 47
    88-79091 FUSE, 20 Ampere
    FUSE, 20 Ampere
  • 48
    84-95084A10 CABLE ASSEMBLY, (5.00 Inches) Red
    CABLE ASSEMBLY, (5.00 Inches) Red
  • 49
    84-95084A13 CABLE ASSEMBLY, (64.00 Inches)
    CABLE ASSEMBLY, (64.00 Inches)
  • 50
    11-45076 NUT, (#10-32) Brass
    NUT, (#10-32) Brass
  • 51
    84-79138A8 CABLE ASSEMBLY, (72.00 Inches) Black
    CABLE ASSEMBLY, (72.00 Inches) Black
