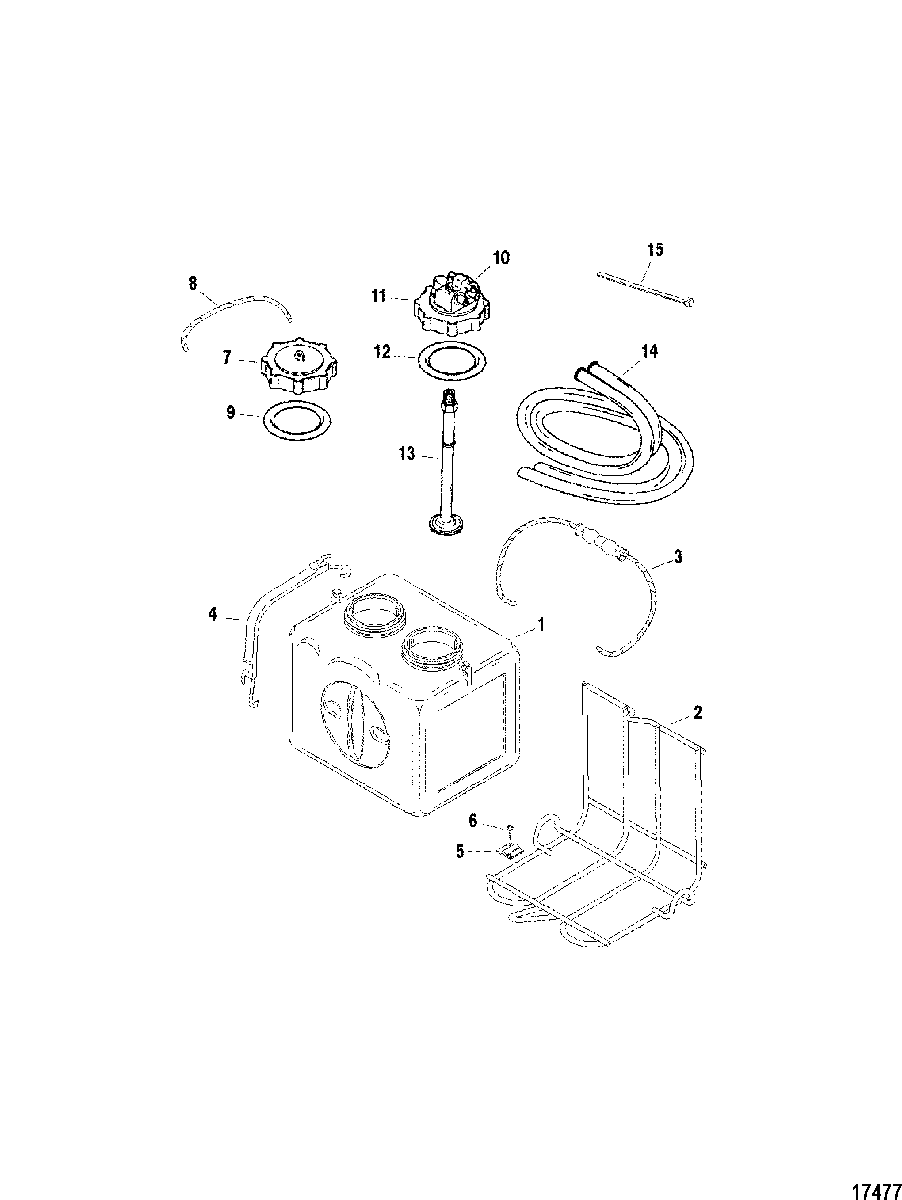

Reservoir Kit-Remote Oil(15943A1) для Mariner - 225 (3.0L EFI) 1B504989 & Up

  • №
    Артикул
    Название
  • -
    15943A1 RESERVOIR KIT, Oil
    RESERVOIR KIT, Oil
  • 1
    15943A1 TANK ASSEMBLY, Oil (1.8 Gallon Tank)
    TANK ASSEMBLY, Oil (1.8 Gallon Tank)
  • 2
    NSS NOT SOLD SEPARATE, BRACKET, Tank Mount
    (Also sold with Bracket Kit Below)
    NOT SOLD SEPARATE, BRACKET, Tank Mount
    (Also sold with Bracket Kit Below)
  • 3
    NSS NOT SOLD SEPARATE, HANDLE/ROPE
    NOT SOLD SEPARATE, HANDLE/ROPE
  • -
    824954A1 BRACKET KIT, Oil Reservoir Hold Down
    (Includes ref. 2)
    BRACKET KIT, Oil Reservoir Hold Down
    (Includes ref. 2)
  • 4
    12323A1 CORD/HOOK KIT
    CORD/HOOK KIT
  • 5
    12320 BRACKET, Hold Down
    BRACKET, Hold Down
  • 6
    10-79968 SCREW, (#12-11 x .750)
    SCREW, (#12-11 x .750)
  • 7
    36-43298A2 CAP ASSEMBLY, Oil Reservoir
    CAP ASSEMBLY, Oil Reservoir
  • 8
    NSS NOT SOLD SEPARATE, CORD
    NOT SOLD SEPARATE, CORD
  • 9
    25-11332 O-RING, (2.225 x .210), Cap
    O-RING, (2.225 x .210), Cap
  • 10
    816190A4 HOUSING ASSEMBLY, Adapter
    HOUSING ASSEMBLY, Adapter
  • 11
    36-43298A2 CAP ASSEMBLY, Housing Adaptor
    CAP ASSEMBLY, Housing Adaptor
  • 12
    25-11332 O-RING, (2.225 x .210)
    O-RING, (2.225 x .210)
  • 13
    32-99802 TUBE, Oil Pick Up
    TUBE, Oil Pick Up
  • 14
    32-99439 HOSE, (114.00 Inches)
    HOSE, (114.00 Inches)
  • 15
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
