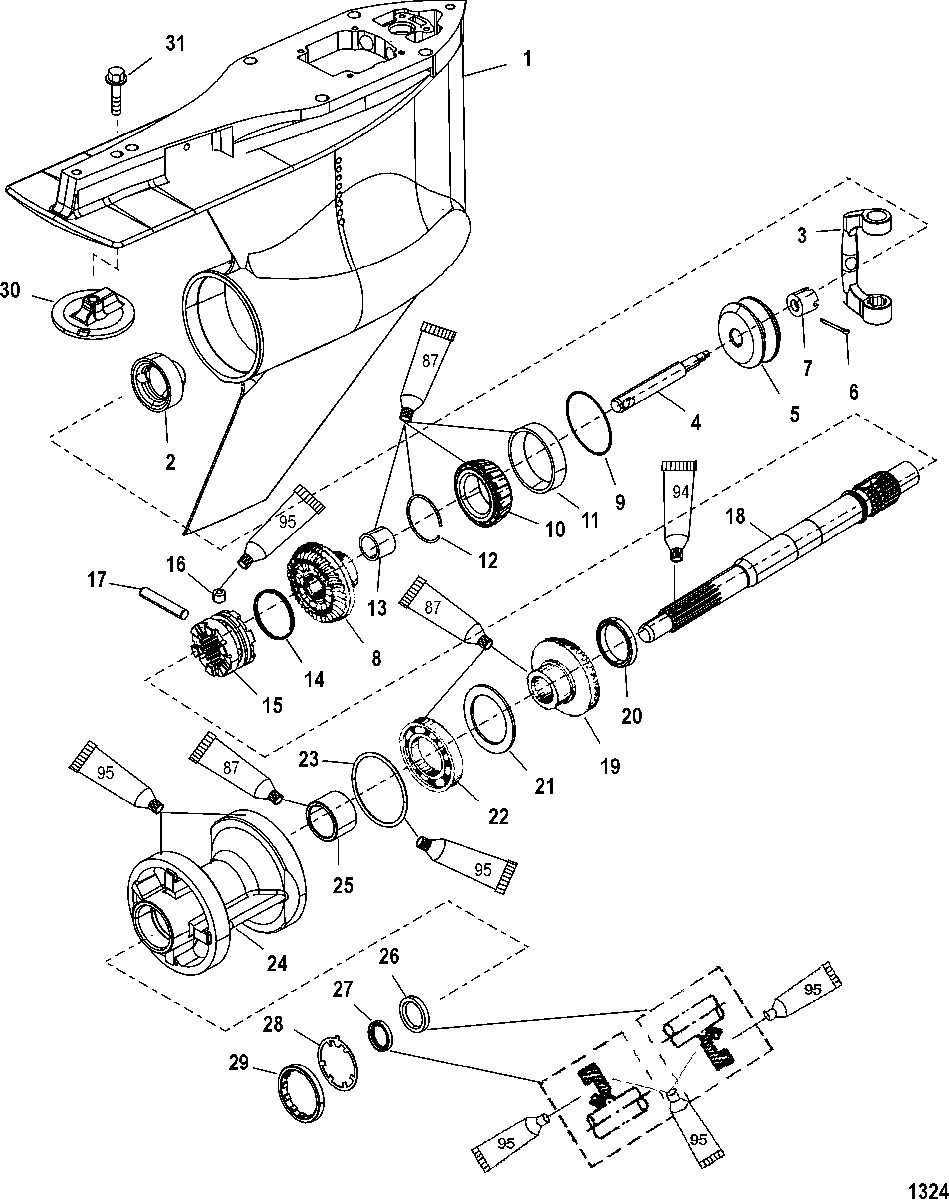

Gear Housing, Propeller Shaft - Standard Rotation для Mariner - 225 (3.0L EFI) 1B417702 THRU 1B504988

  • №
    Артикул
    Название
  • -
    1623-859399T13 GEAR HOUSING ASSEMBLY, Complete (4.75 Inch/120.65 mm Torpedo Diameter)
    (Long)
    GEAR HOUSING ASSEMBLY, Complete (4.75 Inch/120.65 mm Torpedo Diameter)
    (Long)
  • -
    1623-859399T14 GEAR HOUSING ASSEMBLY, Complete (4.75 Inch/120.65 mm Torpedo Diameter)
    (X-Long)
    GEAR HOUSING ASSEMBLY, Complete (4.75 Inch/120.65 mm Torpedo Diameter)
    (X-Long)
  • -
    1623-859399T15 GEAR HOUSING ASSEMBLY, Complete (4.75 Inch/120.65 mm Torpedo Diameter)
    (XX-Long)
    GEAR HOUSING ASSEMBLY, Complete (4.75 Inch/120.65 mm Torpedo Diameter)
    (XX-Long)
  • 1
    1623-859399T18 GEAR HOUSING ASSEMBLY, Basic
    GEAR HOUSING ASSEMBLY, Basic
  • 2
    22-859403 PLUG
    PLUG
  • 3
    823903 SHIFT CRANK
    SHIFT CRANK
  • 4
    19755T7 SPOOL ASSEMBLY
    SPOOL ASSEMBLY
  • 5
    NSS NOT SOLD SEPARATE, Shift Spool
    NOT SOLD SEPARATE, Shift Spool
  • 6
    18-469501 COTTER PIN
    COTTER PIN
  • 7
    NSS NOT SOLD SEPARATE, Sleeve
    NOT SOLD SEPARATE, Sleeve
  • 8
    43-859321A3 GEAR SET, Forward/Pinion (12/21)
    GEAR SET, Forward/Pinion (12/21)
  • 9
    15-8M0063266 SHIM SET
    SHIM SET
  • 10
    31-30894A1 BEARING SET, Cup And Cone
    BEARING SET, Cup And Cone
  • 11
    NSS NOT SOLD SEPARATE, Cup
    NOT SOLD SEPARATE, Cup
  • 12
    53-856823 RING, Retaining
    RING, Retaining
  • 13
    31-30895T BEARING, Needle
    BEARING, Needle
  • 14
    24-30893 SPRING
    SPRING
  • 15
    52-859340T CLUTCH
    CLUTCH
  • 16
    17-828356 PIN, Detent
    PIN, Detent
  • 17
    17-8M0100263 PIN, Cross
    PIN, Cross
  • 18
    44-8M0140440 PROPELLER SHAFT
    PROPELLER SHAFT
  • 19
    43-859322A1 GEAR, Reverse (12/21)
    GEAR, Reverse (12/21)
  • 20
    23-824108 SPACER
    SPACER
  • 21
    681001 RING, Thrust
    RING, Thrust
  • 22
    30-88957T BEARING, Ball
    BEARING, Ball
  • 23
    25-896524 O-RING, (3.850 x .210)
    O-RING, (3.850 x .210)
  • 24
    818763T11 CARRIER ASSEMBLY, Bearing
    CARRIER ASSEMBLY, Bearing
  • 25
    31-30956T BEARING, Needle
    BEARING, Needle
  • 26
    26-14077 SEAL, Oil (Inside)
    SEAL, Oil (Inside)
  • 27
    26-76868 SEAL (Outside)
    SEAL (Outside)
  • 28
    14-18323 TAB WASHER
    TAB WASHER
  • 29
    8M2000347 RETAINER
    RETAINER
  • 30
    97-76214Q5 ANODE KIT
    ANODE KIT
  • 31
    10-806327 SCREW, (.437-14 x 1.750)
    SCREW, (.437-14 x 1.750)
  • -
    26-816575A4 SEAL KIT, Gear Housing
    SEAL KIT, Gear Housing
