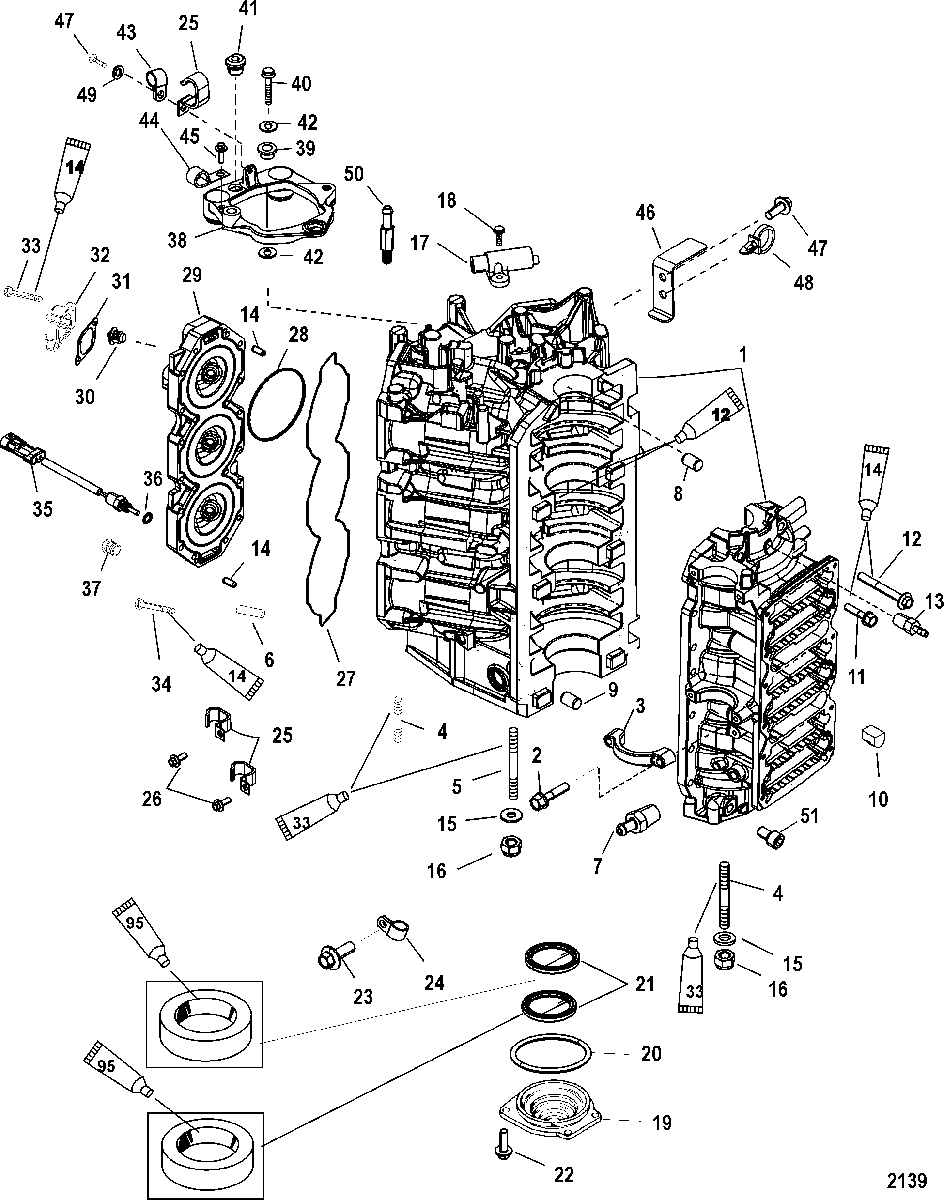

Cylinder Block and End Cap для Mariner - 225 (3.0L-DFI)(DTS) 0T599000 THRU 1B417701

  • №
    Артикул
    Название
  • 1
    885-899162A06 CYLINDER BLOCK ASSEMBLY
    SN# 0T800999 & Below
    CYLINDER BLOCK ASSEMBLY
    SN# 0T800999 & Below
  • 1
    885-899162A06 CYLINDER BLOCK
    SN# 0T801000 & Up
    CYLINDER BLOCK
    SN# 0T801000 & Up
  • 2
    10-81893440 SCREW, (M8 x 40)
    SCREW, (M8 x 40)
  • 3
    8M0111325 BRACKET
    BRACKET
  • 4
    16-903509 STUD, (M10 x 1.5 x 64)
    STUD, (M10 x 1.5 x 64)
  • 5
    16-8154431 STUD, (M10 x 1.5 x 155)
    STUD, (M10 x 1.5 x 155)
  • 6
    8248577 DEFLECTOR
    DEFLECTOR
  • 7
    21-8781051 CHECK VALVE
    CHECK VALVE
  • 8
    17-8M0036405 PIN
    PIN
  • 9
    17-43044 PIN, Dowel - Without Hole (.375 x .625)
    PIN, Dowel - Without Hole (.375 x .625)
  • 10
    19-850309001 PLUG
    SN# 0T979999 & Below
    PLUG
    SN# 0T979999 & Below
  • 10
    19-850309001 PLUG, Stop
    SN# 0T980000 & Up
    PLUG, Stop
    SN# 0T980000 & Up
  • 11
    10-81893435 SCREW, (M8 x 35)
    SCREW, (M8 x 35)
  • 12
    10-82446180 SCREW, (M10 x 80)
    SCREW, (M10 x 80)
  • 13
    22-8245021 CONNECTOR
    CONNECTOR
  • 14
    17-63779 PIN, Dowel (.250 x .625)
    SN# 0T801000 & Up
    PIN, Dowel (.250 x .625)
    SN# 0T801000 & Up
  • 15
    12-856774 WASHER, (.406 x .750 x .105) Stainless Steel
    WASHER, (.406 x .750 x .105) Stainless Steel
  • 16
    11-4013610 NUT, (M10) Stainless Steel
    NUT, (M10) Stainless Steel
  • 17
    8M0082988 SENSOR
    SENSOR
  • 18
    10-40011107 SCREW, (M5 x 16) Stainless Steel
    SCREW, (M5 x 16) Stainless Steel
  • 19
    1171-9787A4 END CAP ASSEMBLY
    END CAP ASSEMBLY
  • 20
    25-62700 O-RING, (3.237 x .103)
    O-RING, (3.237 x .103)
  • 21
    26-8308981 SEAL
    SEAL
  • 22
    10-82130020 SCREW, (M6 x 20)
    SCREW, (M6 x 20)
  • 23
    10-82130012 SCREW, (M6 x 12)
    SCREW, (M6 x 12)
  • 24
    54-858902 CLAMP
    CLAMP
  • 25
    54-65292 J CLIP
    J CLIP
  • 26
    10-82130012 SCREW, (M6 x 12)
    SCREW, (M6 x 12)
  • 27
    818574 SEAL
    SEAL
  • 28
    884391 SEAL
    SEAL
  • 29
    900-858485T07 CYLINDER HEAD
    (Starboard) SN# 0T800999 & Below
    CYLINDER HEAD
    (Starboard) SN# 0T800999 & Below
  • 29
    900-858485T07 CYLINDER HEAD, Starboard
    (Starboard) SN# 0T801000 & Up
    CYLINDER HEAD, Starboard
    (Starboard) SN# 0T801000 & Up
  • 29
    900-858483T07 CYLINDER HEAD
    (Port) SN# 0T800999 & Below
    CYLINDER HEAD
    (Port) SN# 0T800999 & Below
  • 29
    900-858483T07 CYLINDER HEAD, Port
    (Port) SN# 0T801000 & Up
    CYLINDER HEAD, Port
    (Port) SN# 0T801000 & Up
  • 30
    8M0057307 THERMOSTAT, 54A°C (130A°F) (130 Degrees)
    SN# 0T979999 & Below
    THERMOSTAT, 54A°C (130A°F) (130 Degrees)
    SN# 0T979999 & Below
  • 30
    8M0057307 THERMOSTAT, 54 Degree C/130 Degree F
    SN# 0T980000 & Up
    THERMOSTAT, 54 Degree C/130 Degree F
    SN# 0T980000 & Up
  • 31
    27-8503181 GASKET
    GASKET
  • 32
    887601002 COVER, Thermostat
    (Port)
    COVER, Thermostat
    (Port)
  • 32
    887602002 COVER, Thermostat
    (Starboard)
    COVER, Thermostat
    (Starboard)
  • 33
    10-82130025 SCREW, (M6 x 25)
    SCREW, (M6 x 25)
  • 34
    10-8M0045380 SCREW, (M8 x 50)
    SCREW, (M8 x 50)
  • 35
    889575 SENSOR ASSEMBLY
    SN# 0T800999 & Below
    SENSOR ASSEMBLY
    SN# 0T800999 & Below
  • 35
    885342002 SENSOR ASSEMBLY
    SN# 0T801000 & Up
    SENSOR ASSEMBLY
    SN# 0T801000 & Up
  • 36
    25-627021 O-RING, (.301 x .070)
    SN# 0T800999 & Below
    O-RING, (.301 x .070)
    SN# 0T800999 & Below
  • 36
    25-896699 O-RING, (.351 x .072)
    SN# 0T801000 & Up
    O-RING, (.351 x .072)
    SN# 0T801000 & Up
  • 37
    22-328022 PLUG, Pipe (.125-27) Brass
    PLUG, Pipe (.125-27) Brass
  • 38
    857186T02 PLATE ASSEMBLY
    PLATE ASSEMBLY
  • 39
    23-855729 MOUNT
    MOUNT
  • 40
    10-82130145 SCREW, (M10 x 45)
    SCREW, (M10 x 45)
  • 41
    25-19565002 GROMMET
    SN# 0T979999 & Below
    GROMMET
    SN# 0T979999 & Below
  • 41
    25-19565002 GROMMET
    SN# 0T980000 & Up
    GROMMET
    SN# 0T980000 & Up
  • 42
    12-855725 WASHER
    WASHER
  • 43
    54-858424 CLAMP
    CLAMP
  • 44
    54-858951 J CLIP
    J CLIP
  • 45
    10-82130012 SCREW, (M6 x 12)
    SCREW, (M6 x 12)
  • 46
    888435 BRACKET
    BRACKET
  • 47
    10-82130016 SCREW, (M6 x 16)
    SCREW, (M6 x 16)
  • 48
    54-858932 CLIP
    CLIP
  • 49
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel
    WASHER, (.281 x .500 x .060) Stainless Steel
  • 50
    17-8405101 PIN
    PIN
  • 51
    10-82494810 SCREW, (M6 x 10)
    SCREW, (M6 x 10)
  • -
    27-832934A00 GASKET SET, Powerhead
    GASKET SET, Powerhead
  • -
    877869A07 POWERHEAD ASSEMBLY
    SN# 0T800999 & Below
    POWERHEAD ASSEMBLY
    SN# 0T800999 & Below
  • -
    877869A07 POWERHEAD ASSEMBLY
    SN# 0T801000 & Up
    POWERHEAD ASSEMBLY
    SN# 0T801000 & Up
