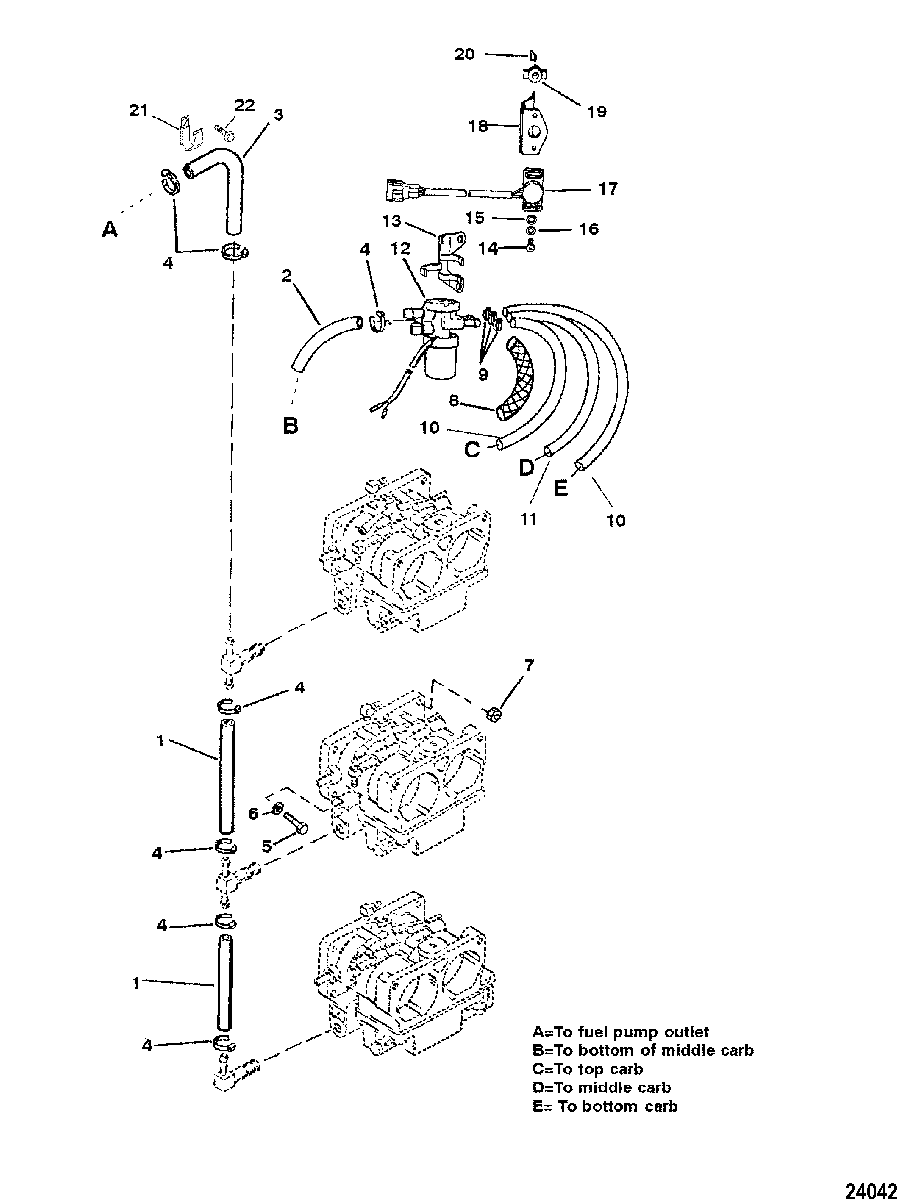

FUEL LINES(NON OIL INJECTION) для Mariner - 225 (3.0L CARB) 0G760300 THRU 0T408999

  • №
    Артикул
    Название
  • 1
    32-8M0108355 HOSE, (57.00 Inches Bulk) (5 IN.)
    HOSE, (57.00 Inches Bulk) (5 IN.)
  • 2
    32-8M0108355 HOSE, (57.00 Inches Bulk) (4-1/2 IN.)
    HOSE, (57.00 Inches Bulk) (4-1/2 IN.)
  • 3
    32-8M0108355 HOSE, (57.00 Inches Bulk) (16 IN.)
    HOSE, (57.00 Inches Bulk) (16 IN.)
  • 4
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 5
    10-4008820 SCREW, (M6 x 20)
    SCREW, (M6 x 20)
  • 6
    13-400256 LOCKWASHER, (M6)
    LOCKWASHER, (M6)
  • 7
    11-401386 NUT, (M6)
    NUT, (M6)
  • 8
    23-82459612 OVERSLEEVE
    OVERSLEEVE
  • 9
    56762 TIE STRAP, (4.00 Inches)
    TIE STRAP, (4.00 Inches)
  • 10
    32-9912878 HOSE, (.187) (26.00 Inches Bulk) (8-3/4 IN.)
    HOSE, (.187) (26.00 Inches Bulk) (8-3/4 IN.)
  • 11
    32-9912878 HOSE, (.187) (26.00 Inches Bulk) (6 IN.)
    HOSE, (.187) (26.00 Inches Bulk) (6 IN.)
  • 12
    822528T SOLENOID VALVE
    SOLENOID VALVE
  • 13
    8224931 BRACKET
    BRACKET
  • 14
    10-4005685 SCREW, (M4 x 10)
    SCREW, (M4 x 10)
  • 15
    12-30164 WASHER, (.192 x .375 x .0312) Stainless Steel
    WASHER, (.192 x .375 x .0312) Stainless Steel
  • 16
    13-26995 LOCKWASHER, (#8) Stainless Steel
    LOCKWASHER, (#8) Stainless Steel
  • 17
    821664 SENSOR, Throttle Position (TPI)
    SENSOR, Throttle Position (TPI)
  • 18
    8212021 BRACKET, Sensor
    BRACKET, Sensor
  • 19
    821153 COUPLING
    COUPLING
  • 20
    28-89694 KEY
    KEY
  • 21
    54-859172 CLAMP
    CLAMP
  • 22
    10-82130012 SCREW, (M6 x 12)
    SCREW, (M6 x 12)
