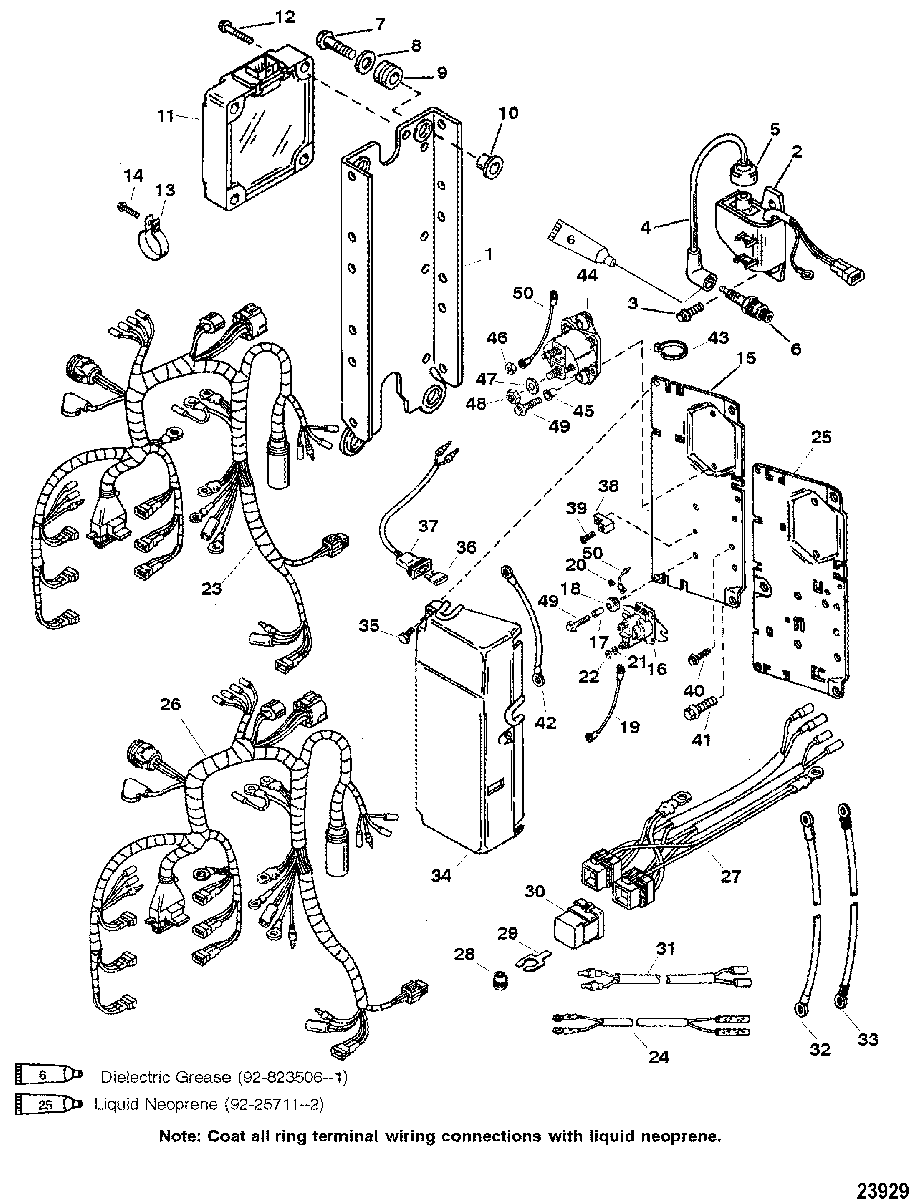

ELECTRICAL(S/N:0G129222-0G303045 NON SEAPRO/MARATHON) для Mariner - 225 (3.0L CARB) 0D280813 THRU 0G760299
-
№АртикулНазвание
-
1825296 PLATE, Electrical MountingPLATE, Electrical Mounting
-
2827509A12 CDM ASSEMBLYCDM ASSEMBLY
-
310-82129114 SCREW, (M6 x 14)SCREW, (M6 x 14)
-
484-821945A56 CABLE ASSEMBLY, Hi TensionCABLE ASSEMBLY, Hi Tension
-
585-63709A1 BOOT/TERMINAL KITBOOT/TERMINAL KIT
-
633-816837Q SPARK PLUG (BPZ8H-N-10)SPARK PLUG (BPZ8H-N-10)
-
710-81893435 SCREW, (M8 x 35)SCREW, (M8 x 35)
-
812-56720 WASHER, (.330 x .750 x .060) Stainless SteelWASHER, (.330 x .750 x .060) Stainless Steel
-
925-825380001 GROMMETGROMMET
-
1023-19064 BUSHINGBUSHING
-
11825753T02 ECU, Engine Control UnitECU, Engine Control Unit
-
1210-82129145 SCREW, (M6 x 45)SCREW, (M6 x 45)
-
1354-826188 CLAMPCLAMP
-
1410-82104520 SCREW, (M5 x 20)SCREW, (M5 x 20)
-
158212281 PLATE, Solenoid Mounting
DESIGN I W/ TRIM SOLENOIDSPLATE, Solenoid Mounting
DESIGN I W/ TRIM SOLENOIDS -
1689-818997T1 SOLENOID ASSEMBLY
DESIGN I W/ TRIM SOLENOIDSSOLENOID ASSEMBLY
DESIGN I W/ TRIM SOLENOIDS -
1723-818968 BUSHING
DESIGN I W/ TRIM SOLENOIDSBUSHING
DESIGN I W/ TRIM SOLENOIDS -
1825-818967 GROMMET
DESIGN I W/ TRIM SOLENOIDSGROMMET
DESIGN I W/ TRIM SOLENOIDS -
1984-87379A46 CABLE ASSEMBLY, (5.750 Inches) (RED)
DESIGN I W/ TRIM SOLENOIDSCABLE ASSEMBLY, (5.750 Inches) (RED)
DESIGN I W/ TRIM SOLENOIDS -
2011-26419 NUT, (#8-32) Brass
DESIGN I W/ TRIM SOLENOIDSNUT, (#8-32) Brass
DESIGN I W/ TRIM SOLENOIDS -
2113-26992 LOCKWASHER, (.250) Stainless Steel
DESIGN I W/ TRIM SOLENOIDSLOCKWASHER, (.250) Stainless Steel
DESIGN I W/ TRIM SOLENOIDS -
2211-94330 NUT, (.250-20) Brass
DESIGN I W/ TRIM SOLENOIDSNUT, (.250-20) Brass
DESIGN I W/ TRIM SOLENOIDS -
2384-825433A7 HARNESS ASSEMBLY, IGNITION
DESIGN I W/ TRIM SOLENOIDSHARNESS ASSEMBLY, IGNITION
DESIGN I W/ TRIM SOLENOIDS -
2484-17201A9 HARNESS ASSEMBLY, TRIM
DESIGN I W/ TRIM SOLENOIDSHARNESS ASSEMBLY, TRIM
DESIGN I W/ TRIM SOLENOIDS -
258212282 PLATE, Solenoid Mounting
DESIGN IIPLATE, Solenoid Mounting
DESIGN II -
2684-825433A7 HARNESS ASSEMBLY, IGNITION
DESIGN IIHARNESS ASSEMBLY, IGNITION
DESIGN II -
2784-826802A2 HARNESS ASSEMBLY, Trim
DESIGN IIHARNESS ASSEMBLY, Trim
DESIGN II -
2825-818967 GROMMET
DESIGN IIGROMMET
DESIGN II -
29828102 BRACKET
DESIGN IIBRACKET
DESIGN II -
30882751A1 RELAY
DESIGN IIRELAY
DESIGN II -
3184-827356A2 HARNESS ASSEMBLY, SHIFT INTERRUPT (26 IN.)HARNESS ASSEMBLY, SHIFT INTERRUPT (26 IN.)
-
3284-88439A34 CABLE ASSEMBLY, Positive - BatteryCABLE ASSEMBLY, Positive - Battery
-
3384-88439A24 CABLE ASSEMBLY, Negative - BatteryCABLE ASSEMBLY, Negative - Battery
-
348216091 COVERCOVER
-
3510-82239320 SCREW, (M5 x 20) (M5 X 0.8)SCREW, (M5 x 20) (M5 X 0.8)
-
3688-812619 FUSE, Yellow - 20 AmpereFUSE, Yellow - 20 Ampere
-
3788-19637 SOCKET, FuseSOCKET, Fuse
-
3886-45915 TERMINAL BLOCKTERMINAL BLOCK
-
3910-878607 SCREW, (#10-16 x .380)SCREW, (#10-16 x .380)
-
3910-878608 SCREW, (#10-16 x .500)SCREW, (#10-16 x .500)
-
4010-82129110 SCREW, (M6 x 10)SCREW, (M6 x 10)
-
4110-82155025 SCREW, (M8 x 25) Stainless SteelSCREW, (M8 x 25) Stainless Steel
-
4284-93388A8 CABLE ASSEMBLY, BlackCABLE ASSEMBLY, Black
-
4354-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
4489-817109A2 SOLENOID ASSEMBLY, (#10-32 / .3125-18 Terminals)SOLENOID ASSEMBLY, (#10-32 / .3125-18 Terminals)
-
4523-818968 BUSHINGBUSHING
-
4611-45076 NUT, (#10-32) BrassNUT, (#10-32) Brass
-
4713-53166 LOCKWASHER, (.312)LOCKWASHER, (.312)
-
4811-68292 NUT, (.312-18)NUT, (.312-18)
-
4910-82129125 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
5084-88807A16 CABLE ASSEMBLY, (4.00 Inches) BlackCABLE ASSEMBLY, (4.00 Inches) Black
