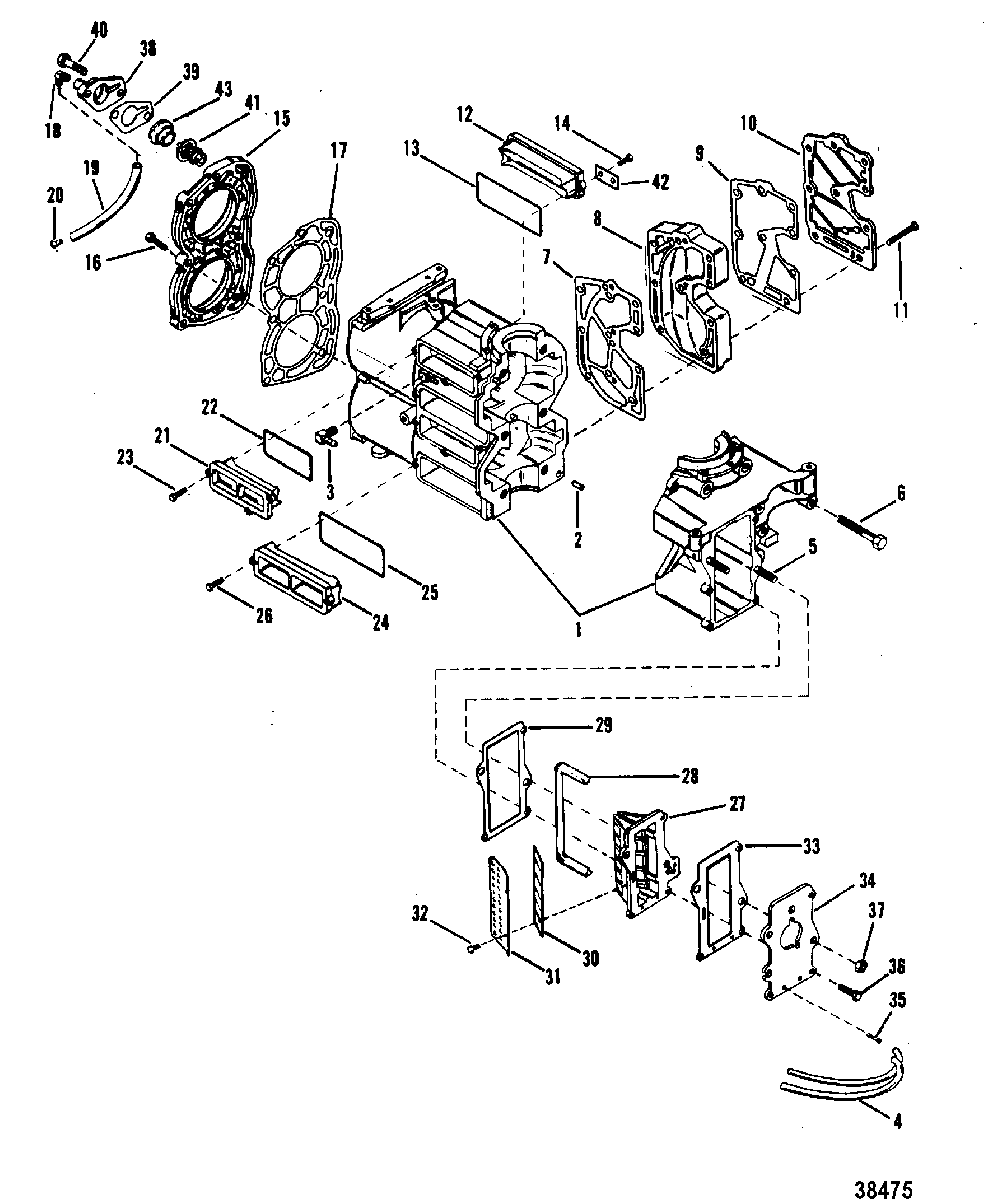

BLOCK(US-0B114231/Can-0A719661/Bel-9467988 and Up) для Mariner - 20XD (2 CYL.) 7209533 THRU 0A730006
-
№АртикулНазвание
-
1872-9533T38 CYLINDER BLOCK ASSEMBLYCYLINDER BLOCK ASSEMBLY
-
217-85171 PIN, Dowel, CYLINDER BLOCKPIN, Dowel, CYLINDER BLOCK
-
322-15133 FITTING, BLEED HOSE (45 DEG.)FITTING, BLEED HOSE (45 DEG.)
-
432-892024122 TUBING, (20.00 Feet Bulk), BLEED (12-1/4")TUBING, (20.00 Feet Bulk), BLEED (12-1/4")
-
516-429173 STUD, CARBURETORSTUD, CARBURETOR
-
610-40001209 SCREW, (M10 x 60), CRANKCASE TO CYLINDER BLOCKSCREW, (M10 x 60), CRANKCASE TO CYLINDER BLOCK
-
727-892158 GASKET, EXJAUST MANIFOLDGASKET, EXJAUST MANIFOLD
-
892329F03 MANIFOLD, ExhaustMANIFOLD, Exhaust
-
927-892157 GASKET, EXHAUST COVERGASKET, EXHAUST COVER
-
10923301 COVER, EXHAUSTCOVER, EXHAUST
-
1110-4000333 SCREW, (M6 x 40)SCREW, (M6 x 40)
-
12144071 COVER, TRANSFER PORTCOVER, TRANSFER PORT
-
1325-822370 O-RING, TRANSFER PORT COVERO-RING, TRANSFER PORT COVER
-
1410-40057107 SCREW, (M5 x 16), COVER TO CYLINDER BLOCKSCREW, (M5 x 16), COVER TO CYLINDER BLOCK
-
151028-8282A1 COVER ASEMBLY, CYLINDER BLOCKCOVER ASEMBLY, CYLINDER BLOCK
-
1610-4000331 SCREW, (M6 x 30), COVER ATTACHINGSCREW, (M6 x 30), COVER ATTACHING
-
1727-863895 GASKET, CYLINDER BLOCK COVERGASKET, CYLINDER BLOCK COVER
-
1822-996642 ELBOW, TELL TALE HOSEELBOW, TELL TALE HOSE
-
1932-8M0108355 HOSE, TELL TALE (8")HOSE, TELL TALE (8")
-
2022-94848 FITTING, TELL TALE HOSE - BOTTOM COWLFITTING, TELL TALE HOSE - BOTTOM COWL
-
2114406 COVER, TRANSFER PORTCOVER, TRANSFER PORT
-
2225-86391 O-RING, TRANSFER PORT COVERO-RING, TRANSFER PORT COVER
-
2310-40057107 SCREW, (M5 x 16), COVER TO CYLINDER BLOCKSCREW, (M5 x 16), COVER TO CYLINDER BLOCK
-
2414408 COVER, TRANSFER PORTCOVER, TRANSFER PORT
-
2525-26722 O-RING, TRANSFER PORT COVERO-RING, TRANSFER PORT COVER
-
2610-40057107 SCREW, (M5 x 16), COVER TO CYLINDER BLOCKSCREW, (M5 x 16), COVER TO CYLINDER BLOCK
-
2714112T REED BLOCKREED BLOCK
-
2885977002 SEAL, Rubber, REED BLOCKSEAL, Rubber, REED BLOCK
-
2927-414172 GASKETGASKET
-
3034-816806 REEDREED
-
3134-897931 STOP, ReedSTOP, Reed
-
3210-4005785 SCREW, (M4 x 10), REED ATTACHINGSCREW, (M4 x 10), REED ATTACHING
-
3327-414181 GASKET, ADAPTOR PLATEGASKET, ADAPTOR PLATE
-
3441420A3 PLATE, CARBURETORPLATE, CARBURETOR
-
3522-56759 FITTING, Barbed, ADAPTOR PLATE - BLEED HOSEFITTING, Barbed, ADAPTOR PLATE - BLEED HOSE
-
3610-40019108 SCREW, (M5 x 20), PLATE TO REED BLOCKSCREW, (M5 x 20), PLATE TO REED BLOCK
-
3711-400213 NUT, (M8) Stainless Steel, CARBURETOR STUDNUT, (M8) Stainless Steel, CARBURETOR STUD
-
38143171 COVER, THERMOSTATCOVER, THERMOSTAT
-
3927-14318005 GASKET, THERMOSTAT COVERGASKET, THERMOSTAT COVER
-
4010-4000333 SCREW, (M6 x 40)SCREW, (M6 x 40)
-
4114586 THERMOSTATTHERMOSTAT
-
4254-12627 STRAPSTRAP
-
4327-62386001 GASKET, THERMOSTATGASKET, THERMOSTAT
-
-27-41499A88 GASKET SETGASKET SET
