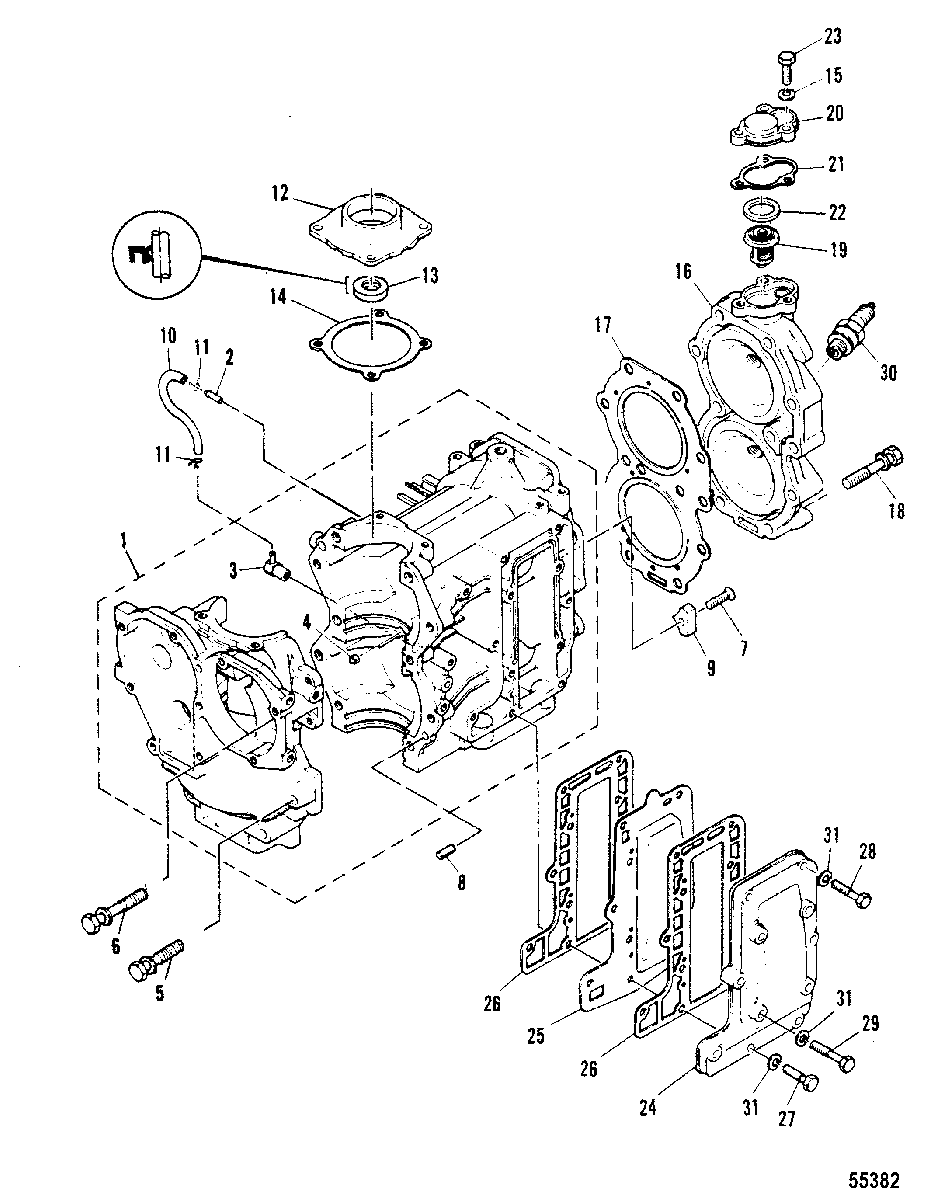

CRANKCASE AND CYLINDER HEAD для Mariner - 20C (THRU PROP. EXHAUST) 6A9-550694 & Up

  • №
    Артикул
    Название
  • 1
    870-9359M CRANKCASE ASSEMBLY
    CRANKCASE ASSEMBLY
  • 2
    22-80122M FITTING, CRANKCASE DRAIN
    FITTING, CRANKCASE DRAIN
  • 3
    21-80727M CHECK VALVE ASSEMBLY
    CHECK VALVE ASSEMBLY
  • 4
    21-80107M VALVE
    VALVE
  • 5
    10-8M0101617 BOLT, (M8 x 55)
    BOLT, (M8 x 55)
  • 6
    10-41885M BOLT
    BOLT
  • 7
    10-95209M SCREW
    SCREW
  • 8
    17-82364M PIN, Dowel, DOWEL
    PIN, Dowel, DOWEL
  • 9
    97-84732M ANODE
    ANODE
  • 10
    32-811045M HOSE
    HOSE
  • 11
    54-82046M CLAMP, HOSE
    CLAMP, HOSE
  • 12
    81564M HOUSING, OIL SEAL (UPPER)
    HOUSING, OIL SEAL (UPPER)
  • 13
    26-82245M SEAL, Oil, CRANKSHAFT (UPPER)
    SEAL, Oil, CRANKSHAFT (UPPER)
  • 14
    27-81565M GASKET, OIL SEAL HOUSING
    GASKET, OIL SEAL HOUSING
  • 15
    12-82214M WASHER
    WASHER
  • 16
    968-8374M HEAD, CYLINDER
    HEAD, CYLINDER
  • 17
    27-81555 GASKET, CYLINDER HEAD
    GASKET, CYLINDER HEAD
  • 18
    10-41885M BOLT
    BOLT
  • 19
    814554T01 THERMOSTAT
    THERMOSTAT
  • 20
    81030M COVER, THERMOSTAT
    COVER, THERMOSTAT
  • 21
    27-81031 GASKET, THERMOSTAT COVER
    GASKET, THERMOSTAT COVER
  • 22
    12-81835M WASHER
    WASHER
  • 23
    10-84058M BOLT, (M6 x 20)
    BOLT, (M6 x 20)
  • 24
    81569M COVER, EXHAUST-OUTER
    COVER, EXHAUST-OUTER
  • 25
    81568M COVER, EXHAUST-INNER
    COVER, EXHAUST-INNER
  • 26
    27-81570 GASKET, EXHAUST COVER
    GASKET, EXHAUST COVER
  • 27
    10-82405M BOLT
    BOLT
  • 28
    10-83285M BOLT
    BOLT
  • 29
    10-83285M BOLT
    BOLT
  • 30
    33-8M0114739 SPARK PLUG (AC M42FF)
    SPARK PLUG (AC M42FF)
  • 31
    12-82214M WASHER
    WASHER
  • 31
    14233M POWERHEAD ASSEMBLY, COMPLETE (SEE NOTE)
    REPLACEMENT PARTS SN# 00012380 THRU 09999999
    POWERHEAD ASSEMBLY, COMPLETE (SEE NOTE)
    REPLACEMENT PARTS SN# 00012380 THRU 09999999
  • 31
    14233M POWERHEAD ASSEMBLY, COMPLETE (SEE NOTE)
    REPLACEMENT PARTS SN# 00000000 THRU 00012379
    POWERHEAD ASSEMBLY, COMPLETE (SEE NOTE)
    REPLACEMENT PARTS SN# 00000000 THRU 00012379
  • #
    27-92575M GASKET SET, POWERHEAD
    REPLACEMENT PARTS
    GASKET SET, POWERHEAD
    REPLACEMENT PARTS
