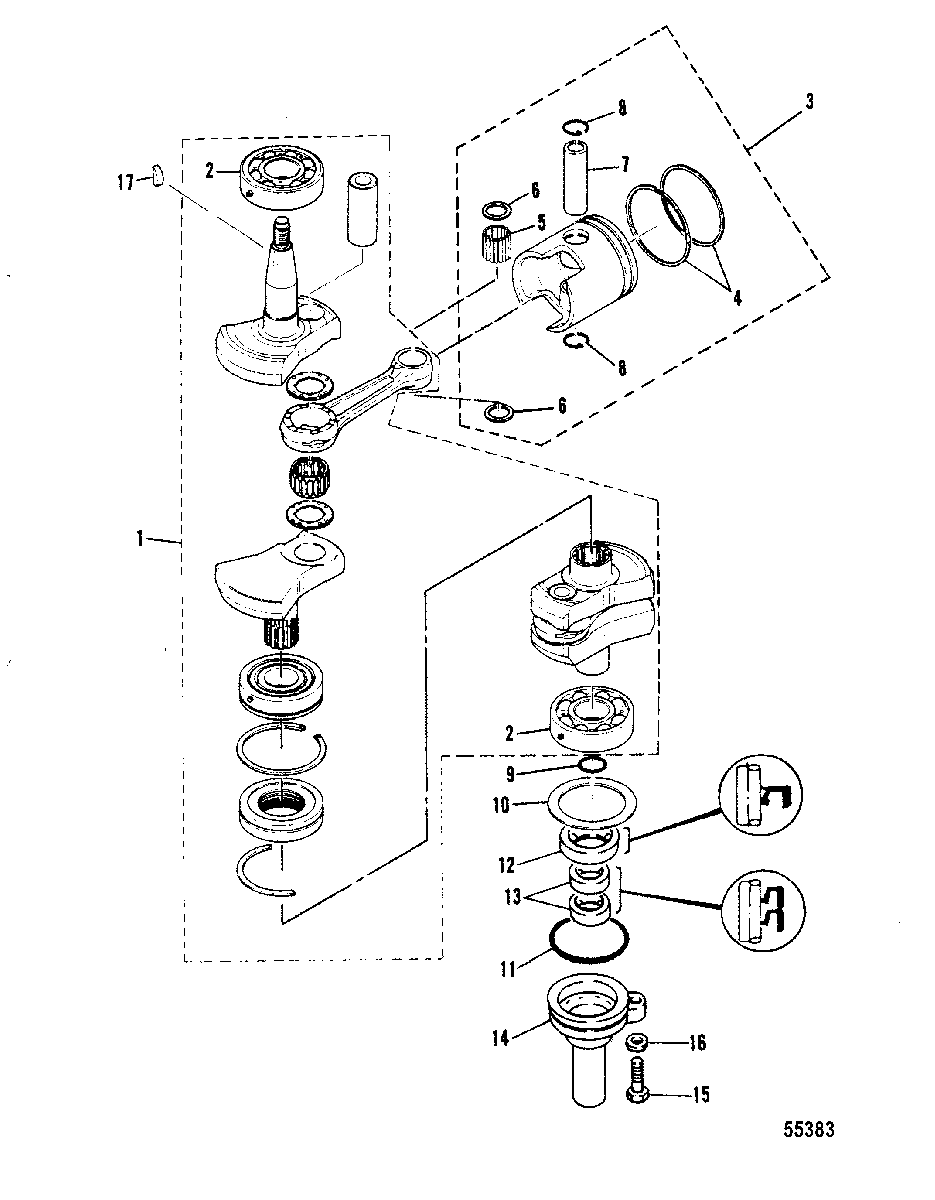

CRANKSHAFT AND PISTON для Mariner - 20C (THRU PROP. EXHAUST) 6A9-306543 & Up

  • №
    Артикул
    Название
  • 1
    463-9245M CRANKSHAFT ASSEMBLY
    CRANKSHAFT ASSEMBLY
  • 2
    30-82307T BEARING, CRANKSHAFT
    BEARING, CRANKSHAFT
  • 3
    761-8375M PISTON ASSEMBLY (STD)
    PISTON ASSEMBLY (STD)
  • 3
    761-8376M PISTON ASSEMBLY (1ST 0.S. 67.25 MM)
    PISTON ASSEMBLY (1ST 0.S. 67.25 MM)
  • 3
    761-8377M PISTON ASSEMBLY
    PISTON ASSEMBLY
  • 4
    39-81095T RING SET, Piston (STD)
    RING SET, Piston (STD)
  • 4
    39-81096T RING SET, Piston (1ST 0.S. 67.25 MM)
    RING SET, Piston (1ST 0.S. 67.25 MM)
  • 4
    39-81097T RING SET, Piston (2ND O.S. 67.50 MM)
    RING SET, Piston (2ND O.S. 67.50 MM)
  • 5
    29-84452M BEARING, NEEDLE
    BEARING, NEEDLE
  • 6
    12-81829M WASHER, CONNECTING ROD BEARING
    WASHER, CONNECTING ROD BEARING
  • 7
    41-80565M PIN, PISTON
    PIN, PISTON
  • 8
    53-82345M RING, Snap
    RING, Snap
  • 9
    25-82268M O-RING, CRANKSHAFT TO DRIVESHAFT
    O-RING, CRANKSHAFT TO DRIVESHAFT
  • 10
    23-81842M SPACER, INNER BEARING
    SPACER, INNER BEARING
  • 11
    25-84089M O-RING, OIL SEAL HOUSING
    O-RING, OIL SEAL HOUSING
  • 12
    26-84752M SEAL, Oil, LARGE
    SN# 00012380 THRU 09999999
    SEAL, Oil, LARGE
    SN# 00012380 THRU 09999999
  • 12
    26-84752M SEAL, Oil, LARGE
    SN# 00000000 THRU 00012379
    SEAL, Oil, LARGE
    SN# 00000000 THRU 00012379
  • 13
    26-83347M SEAL, Oil, SMALL
    SEAL, Oil, SMALL
  • 14
    8M0059029 HOUSING, OIL SEAL (LOWER)
    HOUSING, OIL SEAL (LOWER)
  • 15
    10-94526M BOLT
    BOLT
  • 16
    12-82214M WASHER
    WASHER
  • 17
    28-8M0057164 KEY, CRANKSHAFT TO FLYWHEEL
    KEY, CRANKSHAFT TO FLYWHEEL
