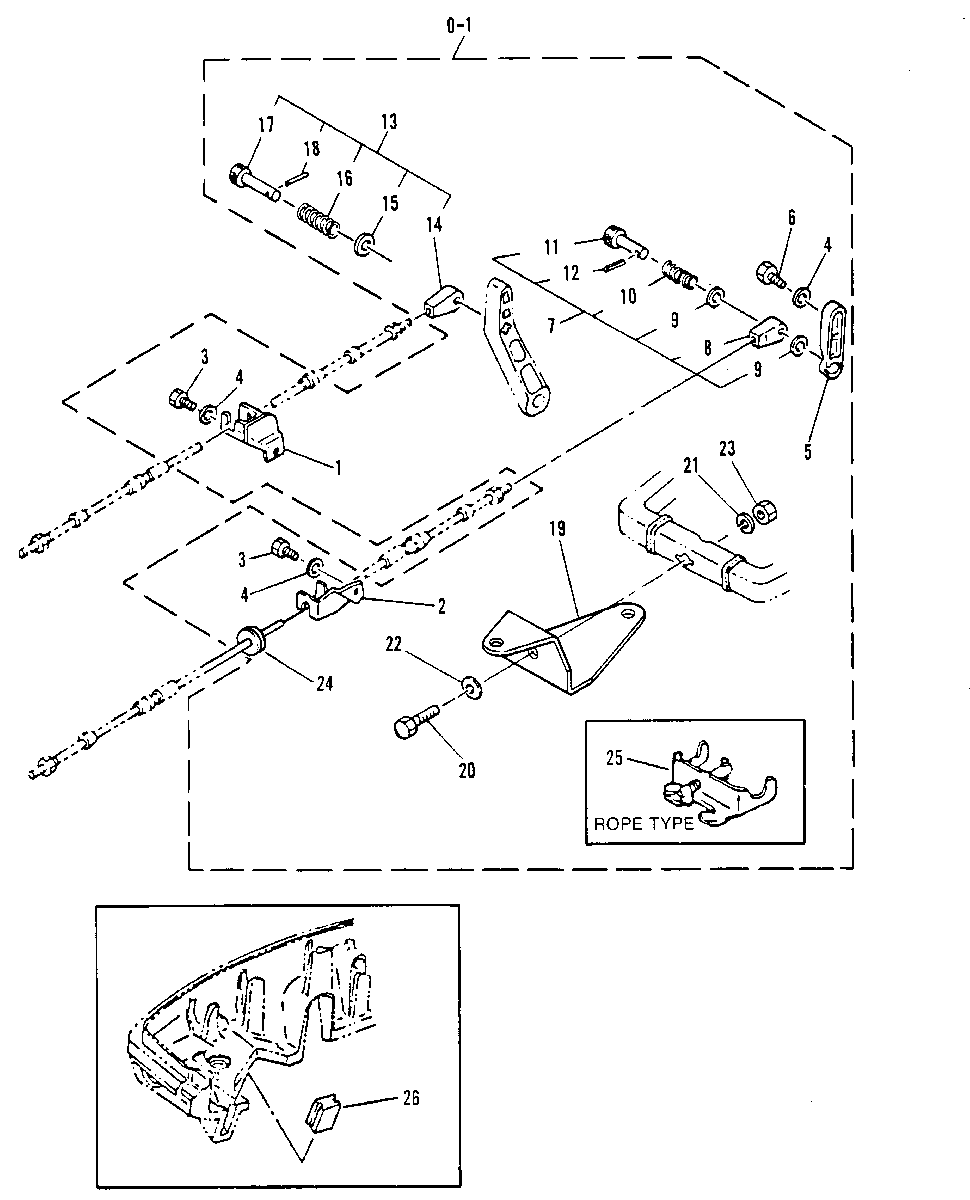

REMOTE CONTROL ATTACHING KIT для Mariner - 20C (THRU PROP. EXHAUST) 6A9-300101 THRU 306542

  • №
    Артикул
    Название
  • 0-1
    43991A1 ATTACHING KIT, BALL POST TYPE
    ATTACHING KIT, BALL POST TYPE
  • 1
    84221M BRACKET, GEAR SHIFT
    BRACKET, GEAR SHIFT
  • 2
    83717M BRACKET, THROTTLE
    BRACKET, THROTTLE
  • 3
    10-826957M BOLT
    BOLT
  • 4
    12-82214M WASHER
    WASHER
  • 5
    84222M THROTTLE LEVER
    THROTTLE LEVER
  • 6
    10-91772M BOLT
    BOLT
  • 7
    83933M CANLE END ASS'Y, THROTTLE
    CANLE END ASS'Y, THROTTLE
  • 8
    83934M CABLE END
    CABLE END
  • 9
    12-82216M WASHER
    WASHER
  • 10
    24-83725M SPRING
    SPRING
  • 11
    17-814499M HOOK
    HOOK
  • 12
    17-82146M PIN, ROLL
    PIN, ROLL
  • 13
    83719M CABLE END ASS'Y, SHIFT
    CABLE END ASS'Y, SHIFT
  • 14
    83720M CABLE END
    CABLE END
  • 15
    12-82216M WASHER
    WASHER
  • 16
    24-83721M SPRING
    SPRING
  • 17
    17-814499M HOOK
    HOOK
  • 18
    17-82146M PIN, ROLL
    PIN, ROLL
  • 19
    91635M BRACKET, STEEERING (BALL POST TYPE)
    BRACKET, STEEERING (BALL POST TYPE)
  • 20
    10-91636M BOLT
    SERIAL 00008216-09999999
    BOLT
    SERIAL 00008216-09999999
  • 20
    10-91636M BOL
    SERIAL 00000000-00008215
    BOL
    SERIAL 00000000-00008215
  • 21
    13-82218M WASHER,LOCK
    WASHER,LOCK
  • 22
    12-82220M WASHER
    WASHER
  • 23
    11-81785M LOCKNUT
    SERIAL 00002351-09999999
    LOCKNUT
    SERIAL 00002351-09999999
  • 23
    11-82395M NUT
    SERIAL 00000000-00002350
    NUT
    SERIAL 00000000-00002350
  • 24
    25-97031M GROMMET
    SERIAL 00008216-09999999
    GROMMET
    SERIAL 00008216-09999999
  • 25
    83727M STEERING HOOK ASS'Y, (ROPE TYPE)
    SERIAL 00008216-09999999
    STEERING HOOK ASS'Y, (ROPE TYPE)
    SERIAL 00008216-09999999
  • 26
    25-83728M GROMMET, (OPTIONAL)
    SERIAL 00008216-09999999
    GROMMET, (OPTIONAL)
    SERIAL 00008216-09999999
