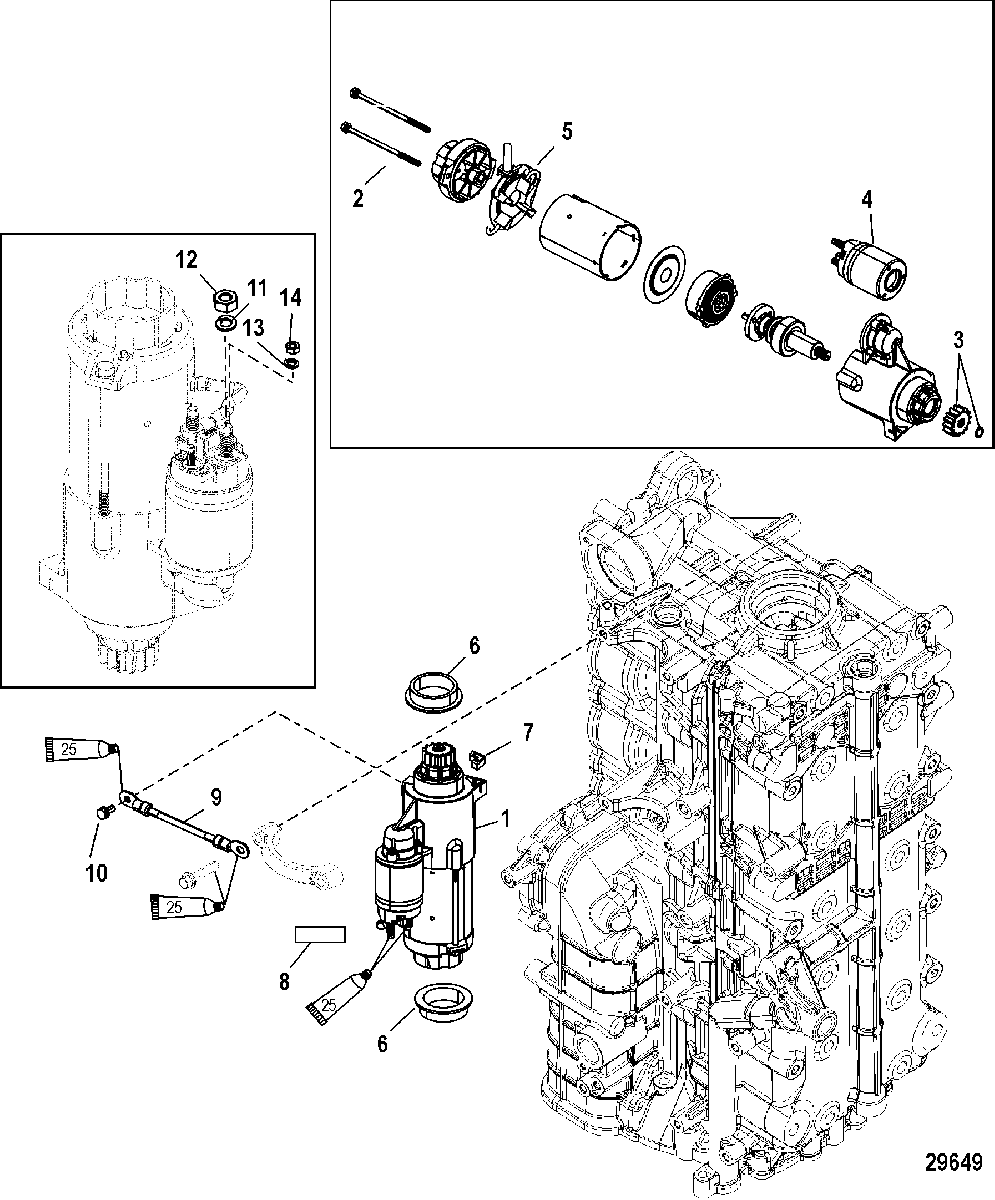

Starter Motor для Mariner - 200 VERADO (4-STROKE)(6 CYL.) 1B517434 THRU 2B144122

  • №
    Артикул
    Название
  • -
    NSS NOT SOLD SEPARATE, Starter Motor Assembly
    NOT SOLD SEPARATE, Starter Motor Assembly
  • 1
    50-892339T01 STARTER MOTOR ASSEMBLY
    STARTER MOTOR ASSEMBLY
  • 2
    NSS NOT SOLD SEPARATE, Screws
    NOT SOLD SEPARATE, Screws
  • 3
    43-880805A1 GEAR KIT
    GEAR KIT
  • 4
    809463A1 SOLENOID KIT
    SOLENOID KIT
  • 5
    8M0065258 BRUSH SET
    BRUSH SET
  • 6
    23-8M0034918 COLLAR
    COLLAR
  • 7
    8M0043276 STOP
    STOP
  • 8
    NSS NOT SOLD SEPARATE, Decal-Waring-High Voltage
    NOT SOLD SEPARATE, Decal-Waring-High Voltage
  • 9
    84-93388A1 CABLE ASSEMBLY, (6.00 Inches) Black
    CABLE ASSEMBLY, (6.00 Inches) Black
  • 10
    10-69035 SCREW AND LOCKWASHER, (.250-20 x .625) Stainless Steel
    SCREW AND LOCKWASHER, (.250-20 x .625) Stainless Steel
  • 11
    13-26993 LOCKWASHER, (.312)
    LOCKWASHER, (.312)
  • 12
    11-400213 NUT, (M8) Stainless Steel
    NUT, (M8) Stainless Steel
  • 13
    13-400255 LOCKWASHER, (M5)
    LOCKWASHER, (M5)
  • 14
    11-400211 NUT, (M5) Stainless Steel
    NUT, (M5) Stainless Steel
