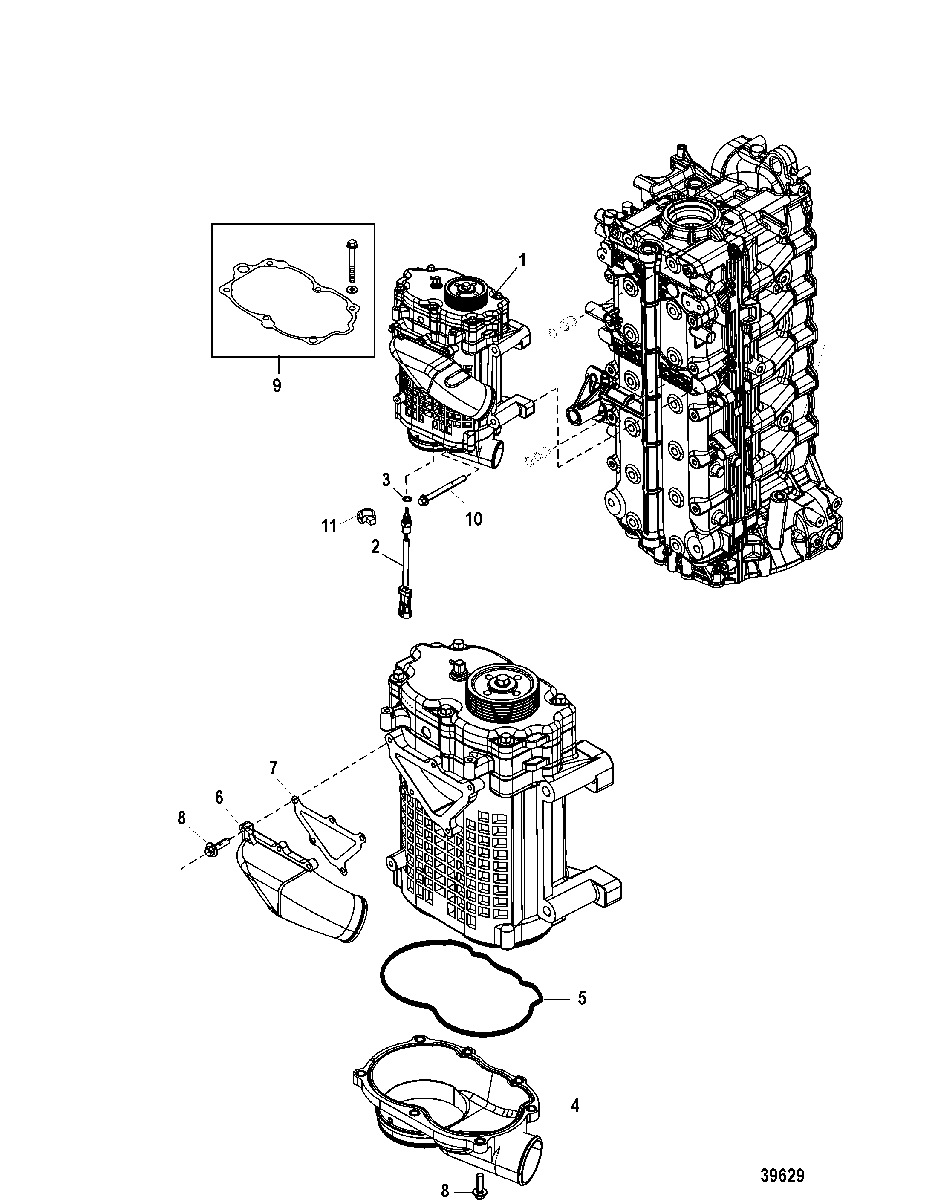

SuperCharger для Mariner - 200 VERADO (4-STROKE)(6 CYL.) 1B381712 THRU 1B517433

  • №
    Артикул
    Название
  • 1
    8M0103744 SUPERCHARGER KIT
    SUPERCHARGER KIT
  • 2
    885342002 SENSOR ASSEMBLY
    SENSOR ASSEMBLY
  • 3
    25-896699 O-RING, (.351 x .072)
    O-RING, (.351 x .072)
  • 4
    888947A05 DUCT KIT, Inlet
    DUCT KIT, Inlet
  • 5
    27-888947501 GASKET
    GASKET
  • 6
    8M0103744 OUTLET DUCT KIT
    OUTLET DUCT KIT
  • 7
    27-888947504 GASKET
    GASKET
  • 8
    10-888947502 BOLT
    BOLT
  • -
    8M0045222 END CAP KIT, Supercharger
    SN# 1B390142 & Below
    END CAP KIT, Supercharger
    SN# 1B390142 & Below
  • -
    8M0045222 END CAP KIT, Supercharger
    SN# 1B390143 & Up
    END CAP KIT, Supercharger
    SN# 1B390143 & Up
  • 9
    23-847803A02 BUSHING/GASKET KIT
    BUSHING/GASKET KIT
  • 10
    10-8M0103820 SCREW, (M10 x 105)
    SCREW, (M10 x 105)
  • 11
    56762 TIE STRAP, (4.00 Inches)
    TIE STRAP, (4.00 Inches)
