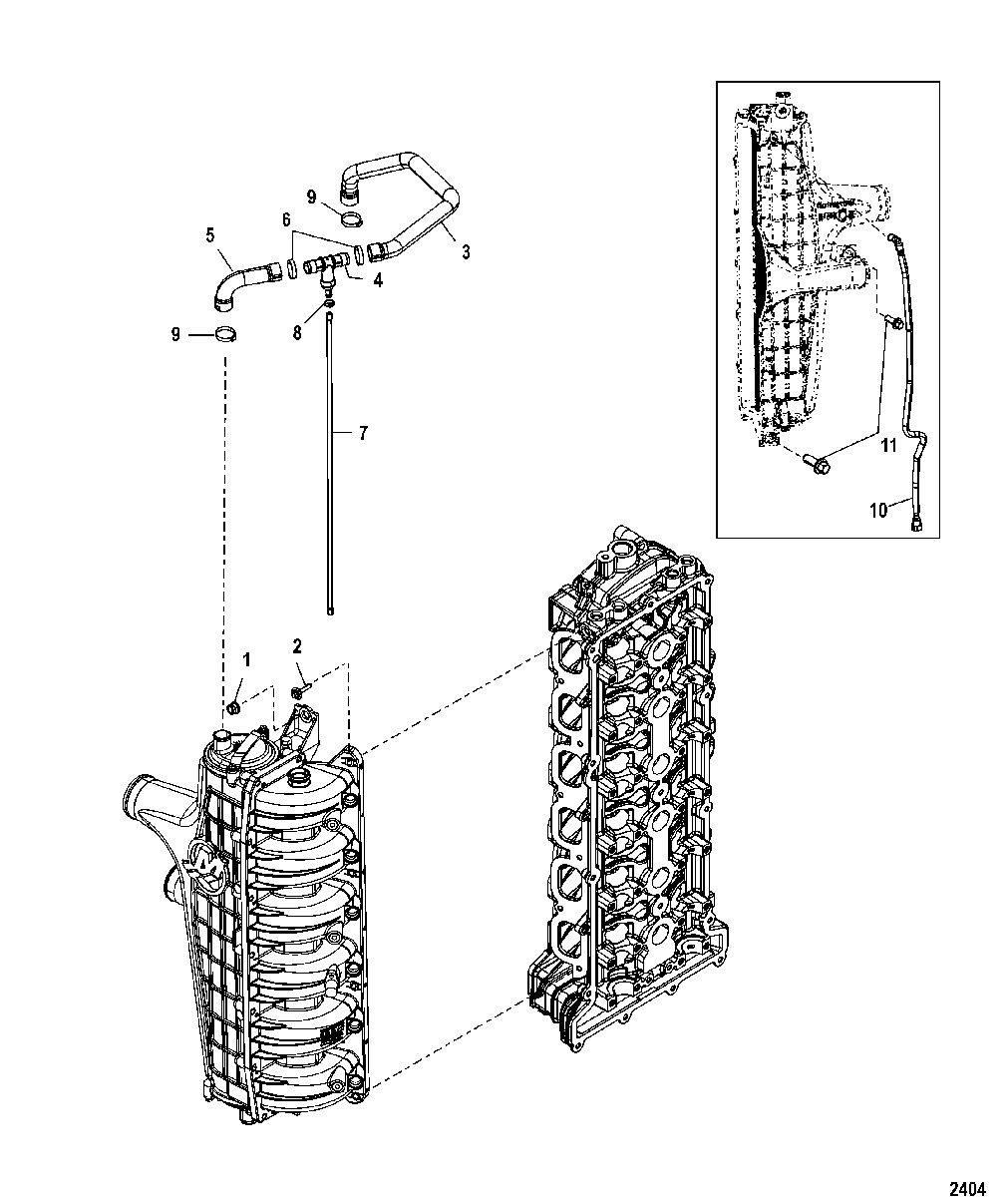

Charge Cooler/Intake Manifold Hose Routings для Mariner - 200 VERADO (4-STROKE)(6 CYL.) 0P464488 THRU 0P520552
-
№АртикулНазвание
-
111-826292 NUT, (M10) Brass/Nickel PlatedNUT, (M10) Brass/Nickel Plated
-
210-8M0048051 SCREWSCREW
-
-NSS NOT SOLD SEPARATE, Hose AssemblyNOT SOLD SEPARATE, Hose Assembly
-
332-889593001 HOSEHOSE
-
422-8M6003382 FITTING ASSEMBLY, FlushingFITTING ASSEMBLY, Flushing
-
532-889592001 HOSEHOSE
-
654-888988008 CLAMP, (34.6 mm)CLAMP, (34.6 mm)
-
732-892967 HOSEHOSE
-
854-850181 TIE STRAP, (11.750 Inches)TIE STRAP, (11.750 Inches)
-
954-888988008 CLAMP, (34.6 mm)CLAMP, (34.6 mm)
-
1032-8M0087119 HOSE, Boost, Manifold Reference-UpperHOSE, Boost, Manifold Reference-Upper
-
1110-8M0103821 SCREW, (M10 x 30)SCREW, (M10 x 30)
