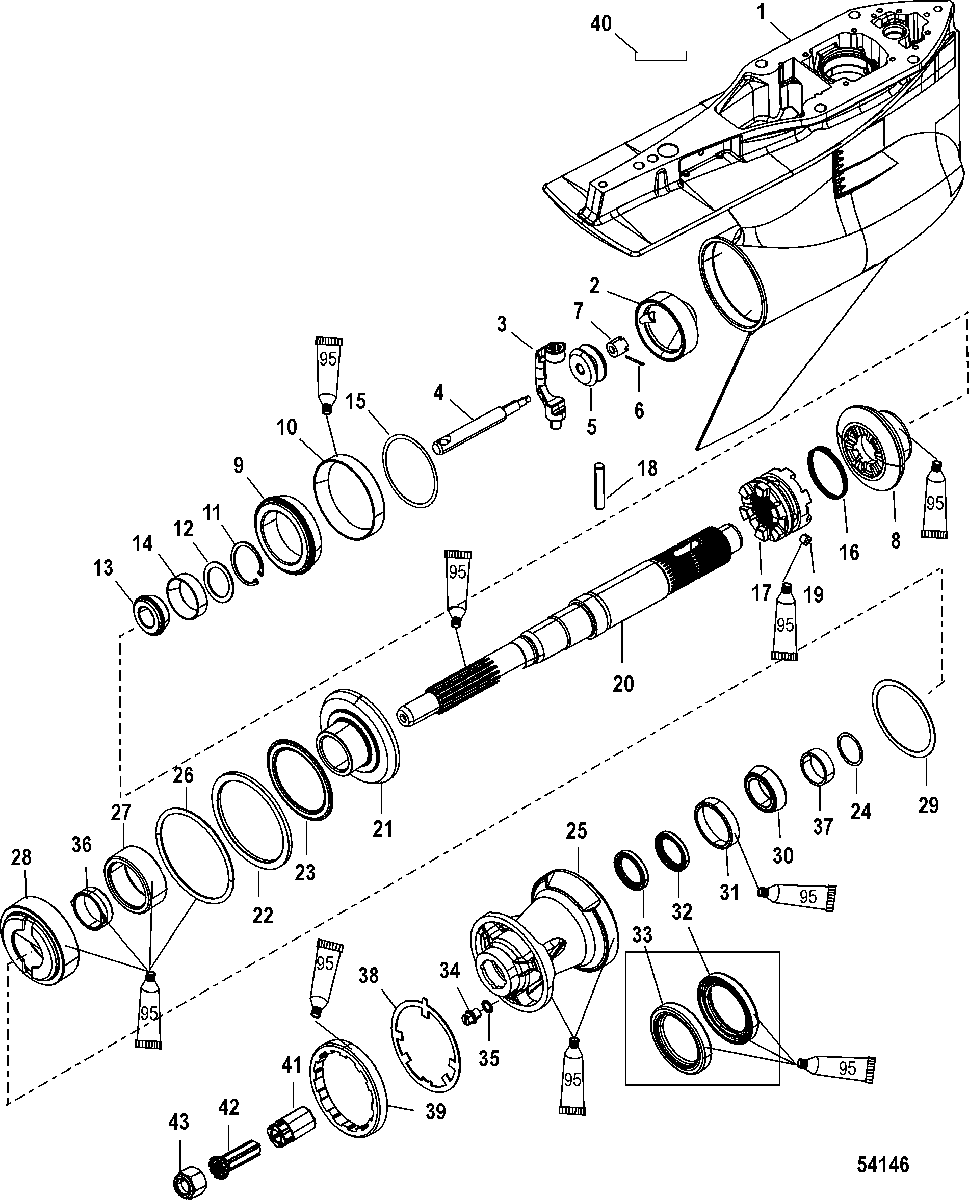

Gear Housing, Prop Shaft-Counter Rotation 2B026817 & up для Mariner - 200 VERADO (4-STROKE)(4 CYL.) 1B517159 & Up

№

Артикул

Название
-

1600-880686T28 GEAR HOUSING ASSEMBLY, Complete
(Long)

GEAR HOUSING ASSEMBLY, Complete
(Long)
-

1600-880686T25 GEAR HOUSING ASSEMBLY, Complete
(X-Long)

GEAR HOUSING ASSEMBLY, Complete
(X-Long)
1

1600-8M0056631 GEAR HOUSING ASSEMBLY, Basic, Used With 1/4 Inch Shift Crank
SN# 1B853028 & Up

GEAR HOUSING ASSEMBLY, Basic, Used With 1/4 Inch Shift Crank
SN# 1B853028 & Up
2

NSS NOT SOLD SEPARATE, Plug

NOT SOLD SEPARATE, Plug
3

8M0046215 CRANK, Shifter, 1/4 Pivot Pin
SN# 1B853028 & Up

CRANK, Shifter, 1/4 Pivot Pin
SN# 1B853028 & Up
4

19755T7 SPOOL ASSEMBLY

SPOOL ASSEMBLY
5

NSS NOT SOLD SEPARATE, Spool

NOT SOLD SEPARATE, Spool
6

18-469501 COTTER PIN

COTTER PIN
7

NSS NOT SOLD SEPARATE, Sleeve Adjusting

NOT SOLD SEPARATE, Sleeve Adjusting
8

43-884337A02 GEAR ASSEMBLY, Reverse

GEAR ASSEMBLY, Reverse
9

31-884323T01 BEARING ASSEMBLY, Roller

BEARING ASSEMBLY, Roller
10

NSS NOT SOLD SEPARATE, Cup

NOT SOLD SEPARATE, Cup
11

53-8M0051043 RING, Retaining

RING, Retaining
12

12-8M0053823 THRUST WASHER

THRUST WASHER
13

31-884325T01 BEARING ASSEMBLY, Roller-Tappered

BEARING ASSEMBLY, Roller-Tappered
14

NSS NOT SOLD SEPARATE, Cup

NOT SOLD SEPARATE, Cup
15

15-8M0063270 SHIM SET

SHIM SET
16

24-30893 SPRING

SPRING
17

52-880714T CLUTCH

CLUTCH
18

17-8M0100263 PIN, Cross

PIN, Cross
19

17-828356 PIN, Detent

PIN, Detent
20

44-8M0140446 PROPELLER SHAFT

PROPELLER SHAFT
21

43-8M0119542 GEAR ASSEMBLY, Forward

GEAR ASSEMBLY, Forward
22

880699 THRUST RING

THRUST RING
23

31-815480 BEARING, Thrust

BEARING, Thrust
24

15-8M0076745 SHIM SET

SHIM SET
24

12-8M0050423 WASHER, .020

WASHER, .020
24

12-8M0050424 WASHER, .022

WASHER, .022
24

12-8M0050425 WASHER, .024

WASHER, .024
24

12-8M0050427 WASHER, .026

WASHER, .026
24

12-8M0050428 WASHER, .028

WASHER, .028
24

12-8M0050429 WASHER, .030

WASHER, .030
24

12-8M0050430 WASHER, .032

WASHER, .032
24

12-8M0050431 WASHER, .034

WASHER, .034
24

12-8M0050432 WASHER, .036

WASHER, .036
24

12-8M0050433 WASHER, .038

WASHER, .038
24

12-8M0050434 WASHER, .040

WASHER, .040
24

12-8M0050435 WASHER, .042

WASHER, .042
24

12-8M0050436 WASHER, .044

WASHER, .044
24

12-8M0050437 WASHER, .046

WASHER, .046
24

12-8M0050438 WASHER, .048

WASHER, .048
24

12-8M0050439 WASHER, .050

WASHER, .050
25

8M0086846 CARRIER ASSEMBLY, Bearing

CARRIER ASSEMBLY, Bearing
26

25-896524 O-RING, (3.850 x .210)

O-RING, (3.850 x .210)
27

31-814653T BEARING ASSEMBLY, Needle Rollers

BEARING ASSEMBLY, Needle Rollers
28

880728 ADAPTOR, Bearing

ADAPTOR, Bearing
29

15-47397A1 SHIM SET

SHIM SET
30

31-884330T01 BEARING ASSEMBLY, Tapered

BEARING ASSEMBLY, Tapered
31

NSS NOT SOLD SEPARATE, Cup

NOT SOLD SEPARATE, Cup
32

26-888483 SEAL, Oil

SEAL, Oil
33

26-888483 SEAL, Oil

SEAL, Oil
34

10-880717A01 SCREW/SEAL KIT

SCREW/SEAL KIT
35

26-830749 SEAL

SEAL
36

8M0053183 ADAPTOR

ADAPTOR
37

23-8M0064306 SPACER

SPACER
38

14-880697 KEYED WASHER

KEYED WASHER
39

8M2000347 RETAINER

RETAINER
40

NSS NOT SOLD SEPARATE, Decal-Counter Rotation

NOT SOLD SEPARATE, Decal-Counter Rotation
41

896233A01 DRIVE SLEEVE ASSEMBLY

DRIVE SLEEVE ASSEMBLY
42

8M0061986 ADAPTOR

ADAPTOR
43

11-52707T1 PROP NUT KIT, (.750-16)
(Mercury Branded)

PROP NUT KIT, (.750-16)
(Mercury Branded)
43

11-52707Q1 PROP NUT KIT, (.750-16)
(Quicksilver Branded)

PROP NUT KIT, (.750-16)
(Quicksilver Branded)
-

26-830749A01 SEAL KIT, Gear Housing

SEAL KIT, Gear Housing
