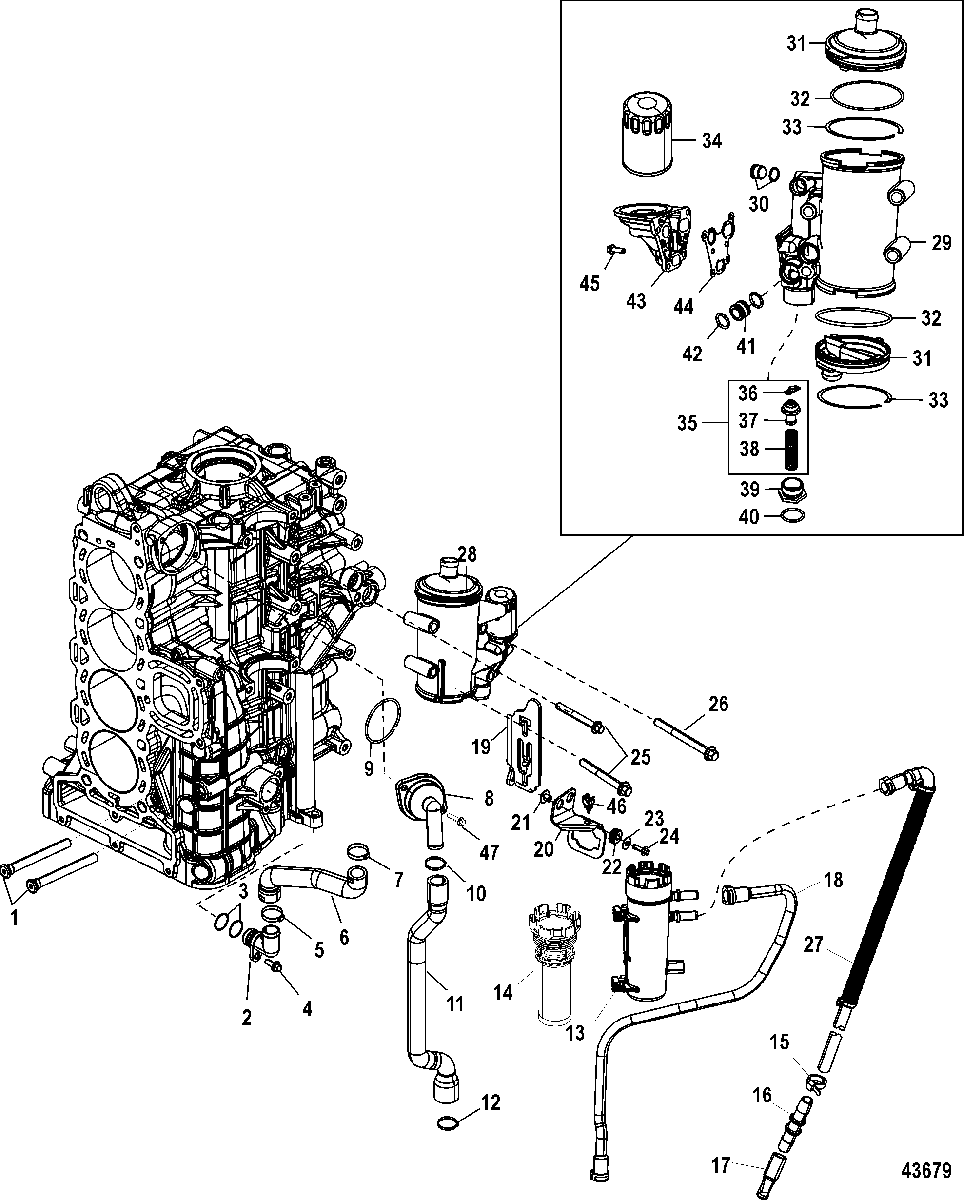

Starboard Cylinder Block/Oil Cooler(1B831000 and Above) для Mariner - 200 VERADO (4-STROKE)(4 CYL.) 0P514869 & Up
-
№АртикулНазвание
-
1892404A05 DEFLECTOR ASSEMBLY, WaterDEFLECTOR ASSEMBLY, Water
-
222-885518A02 FITTING ASSEMBLYFITTING ASSEMBLY
-
325-62701 O-RINGO-RING
-
410-8M0103805 SCREW, (M6 x 16 MM) Stainless SteelSCREW, (M6 x 16 MM) Stainless Steel
-
554-888988011 CLAMP, (38.1 mm)CLAMP, (38.1 mm)
-
632-888930003 HOSEHOSE
-
754-888988008 CLAMP, (34.6 mm)CLAMP, (34.6 mm)
-
8892864T04 THERMOSTAT ASSEMBLYTHERMOSTAT ASSEMBLY
-
925-8M0005958 O-RINGO-RING
-
1054-888988001 CLAMP, (36.1 mm)CLAMP, (36.1 mm)
-
1132-896059001 HOSE, ThermostatHOSE, Thermostat
-
1254-888988007 CLAMP, (42.5 mm)CLAMP, (42.5 mm)
-
1335-8M0062950 FILTER, FuelFILTER, Fuel
-
1435-8M0122423 FILTER, FuelFILTER, Fuel
-
1554-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
1622-892356 CONNECTORCONNECTOR
-
1719-863156 GRAB TABGRAB TAB
-
1832-8M0087061 HOSE, Fuel to Lift PumpHOSE, Fuel to Lift Pump
-
19892147A01 BRACKET ASSEMBLYBRACKET ASSEMBLY
-
20897126 BRACKETBRACKET
-
2123-822003 BUSHINGBUSHING
-
2225-834985 GROMMETGROMMET
-
2312-65567 WASHER, (.265 x .750 x .048) Stainless SteelWASHER, (.265 x .750 x .048) Stainless Steel
-
2410-82129125 SCREW, (M6 x 25 MM)SCREW, (M6 x 25 MM)
-
2510-8M0103824 SCREW, (M10 x 85)SCREW, (M10 x 85)
-
2610-8M0103820 SCREW, (M10 x 105)SCREW, (M10 x 105)
-
2732-8M0046557 HOSE ASSMEBLY, Fuel Inlet, 8.2 InchHOSE ASSMEBLY, Fuel Inlet, 8.2 Inch
-
288M0132389 COOLER ASSEMBLY, Oil
SN# 1B831000 & UpCOOLER ASSEMBLY, Oil
SN# 1B831000 & Up -
29NSS NOT SOLD SEPARATE, OIL COOLER HOUSINGNOT SOLD SEPARATE, OIL COOLER HOUSING
-
3019-891953 PLUG, (18 mm)PLUG, (18 mm)
-
318M0046698 END CAP ASSEMBLYEND CAP ASSEMBLY
-
3225-8M0039516 O-RINGO-RING
-
3353-8M0039464 RING, RetainingRING, Retaining
-
3435-877767K01 FILTER, OilFILTER, Oil
-
358M0046693 THERMOSTAT ASSEMBLYTHERMOSTAT ASSEMBLY
-
36NSS NOT SOLD SEPARATE, THERMOSTAT STOPNOT SOLD SEPARATE, THERMOSTAT STOP
-
378M0046693 THERMOSTATTHERMOSTAT
-
38NSS NOT SOLD SEPARATE, SPRINGNOT SOLD SEPARATE, SPRING
-
3919-8M0046697 PLUGPLUG
-
40NSS NOT SOLD SEPARATE, O-RINGNOT SOLD SEPARATE, O-RING
-
418M0046696 ADAPTOR ASSEMBLY
(Contains 2)ADAPTOR ASSEMBLY
(Contains 2) -
42NSS NOT SOLD SEPARATE, O-RINGNOT SOLD SEPARATE, O-RING
-
438M0046694 HOUSING ASSEMBLYHOUSING ASSEMBLY
-
4427-8M0034568 GASKETGASKET
-
4510-8M0103805 SCREW, (M6 x 18)SCREW, (M6 x 18)
-
4654-897559 CLIPCLIP
-
4710-8M0103807 SCREW, (M6 x 25 MM) Stainless SteelSCREW, (M6 x 25 MM) Stainless Steel
-
-61-896499A08 LONG BLOCK ASSEMBLYLONG BLOCK ASSEMBLY
-
-27-896142A07 GASKET SET, PowerheadGASKET SET, Powerhead
