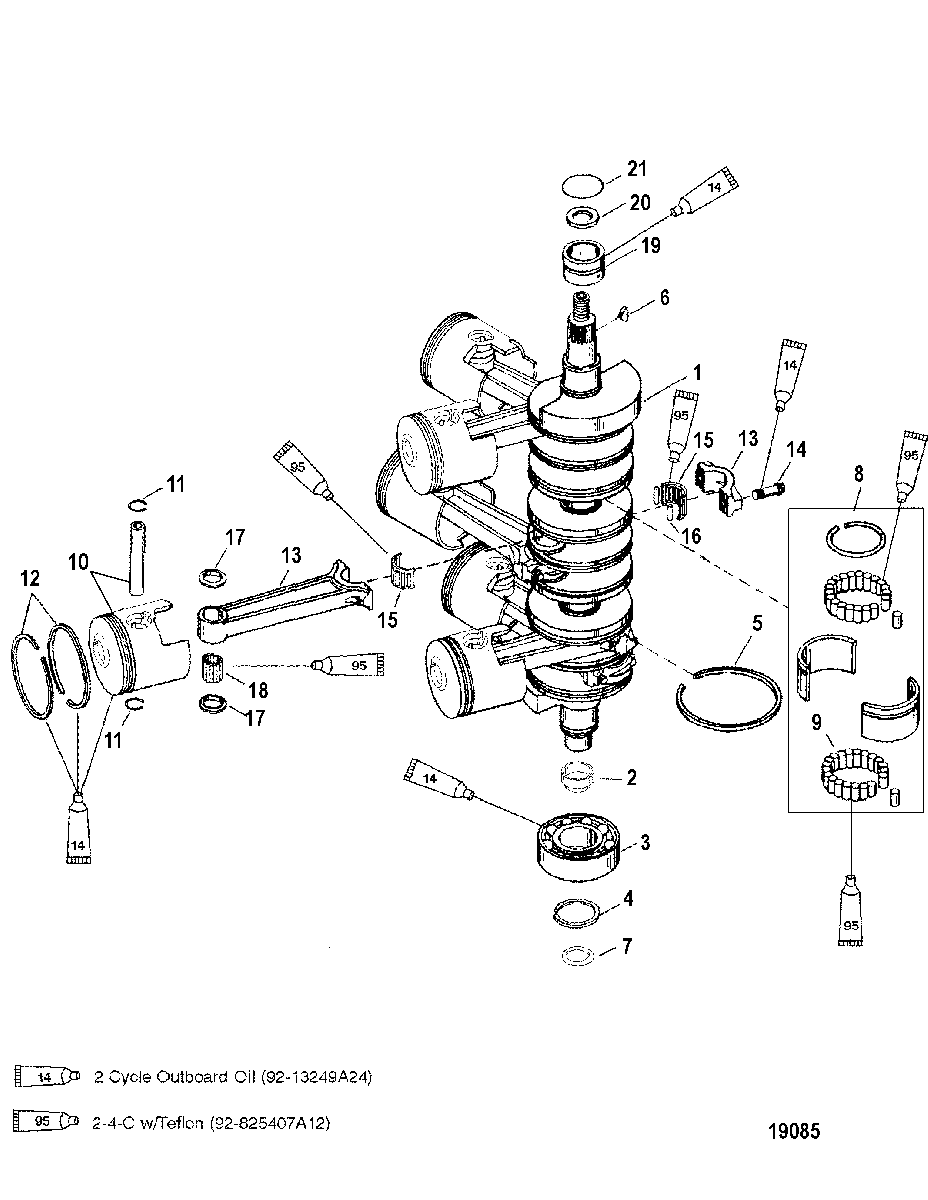

Crankshaft, Pistons and Connecting Rods для Mariner - 200 (DFI) 0G760300 THRU 0G960499
-
№АртикулНазвание
-
1482-9784A11 CRANKSHAFTCRANKSHAFT
-
2NSS NOT SOLD SEPARATE, Wear SleeveNOT SOLD SEPARATE, Wear Sleeve
-
330-67923T BEARING, Ball (LOWER)BEARING, Ball (LOWER)
-
453-67446 RINGRING
-
539-843198T01 RINGRING
-
628-91800 KEY, WoodruffKEY, Woodruff
-
725-35126 O-RING, (.859 x .139)O-RING, (.859 x .139)
-
88M0113288 RACE ASSEMBLY, BearingRACE ASSEMBLY, Bearing
-
9NSS NOT SOLD SEPARATE, Bearing-Needle RollerNOT SOLD SEPARATE, Bearing-Needle Roller
-
102720-859297T2 PISTON
(STBD-STANDARD)PISTON
(STBD-STANDARD) -
102720-855353T3 PISTON
(PORT-STANDARD)PISTON
(PORT-STANDARD) -
102720-859444A2 PISTON ASSEMBLY
STBD-.015 O/SPISTON ASSEMBLY
STBD-.015 O/S -
102720-859446A2 PISTON ASSEMBLY
STBD-.030 O/SPISTON ASSEMBLY
STBD-.030 O/S -
102720-859443A2 PISTON ASSEMBLY
PORT - .015 O/SPISTON ASSEMBLY
PORT - .015 O/S -
102720-859445A2 PISTON ASSEMBLY
(PORT - .030 O/S)PISTON ASSEMBLY
(PORT - .030 O/S) -
1153-8320811 LOCK RINGLOCK RING
-
1239-834805A12 RING SET, Piston
STANDARDRING SET, Piston
STANDARD -
1239-875252A12 RING SET, Piston
.015 O.S.RING SET, Piston
.015 O.S. -
1239-875257A12 RING SET, Piston
.030 O.S.RING SET, Piston
.030 O.S. -
13600-8M0125869 CONNECTING ROD ASSEMBLYCONNECTING ROD ASSEMBLY
-
1410-94320 SCREW, (.375-24 x 1.250)SCREW, (.375-24 x 1.250)
-
1531-844338A01 BEARING/CAGE KITBEARING/CAGE KIT
-
16NSS NOT SOLD SEPARATE, Bearing-Needle RollerNOT SOLD SEPARATE, Bearing-Needle Roller
-
1712-88263 THRUST WASHERTHRUST WASHER
-
1829-88258001 NEEDLE, Roller BearingNEEDLE, Roller Bearing
-
1931-816773A2 BEARING ASSEMBLY (UPPER)BEARING ASSEMBLY (UPPER)
-
2026-859093 SEAL, OilSEAL, Oil
-
2125-823683 O-RING, (1.989 x .070)O-RING, (1.989 x .070)
-
-854198R99 POWERHEAD ASSEMBLY
(200)POWERHEAD ASSEMBLY
(200) -
-854199A99 POWERHEAD ASSEMBLY
(225)POWERHEAD ASSEMBLY
(225) -
-27-8M0133170 GASKET SETGASKET SET
