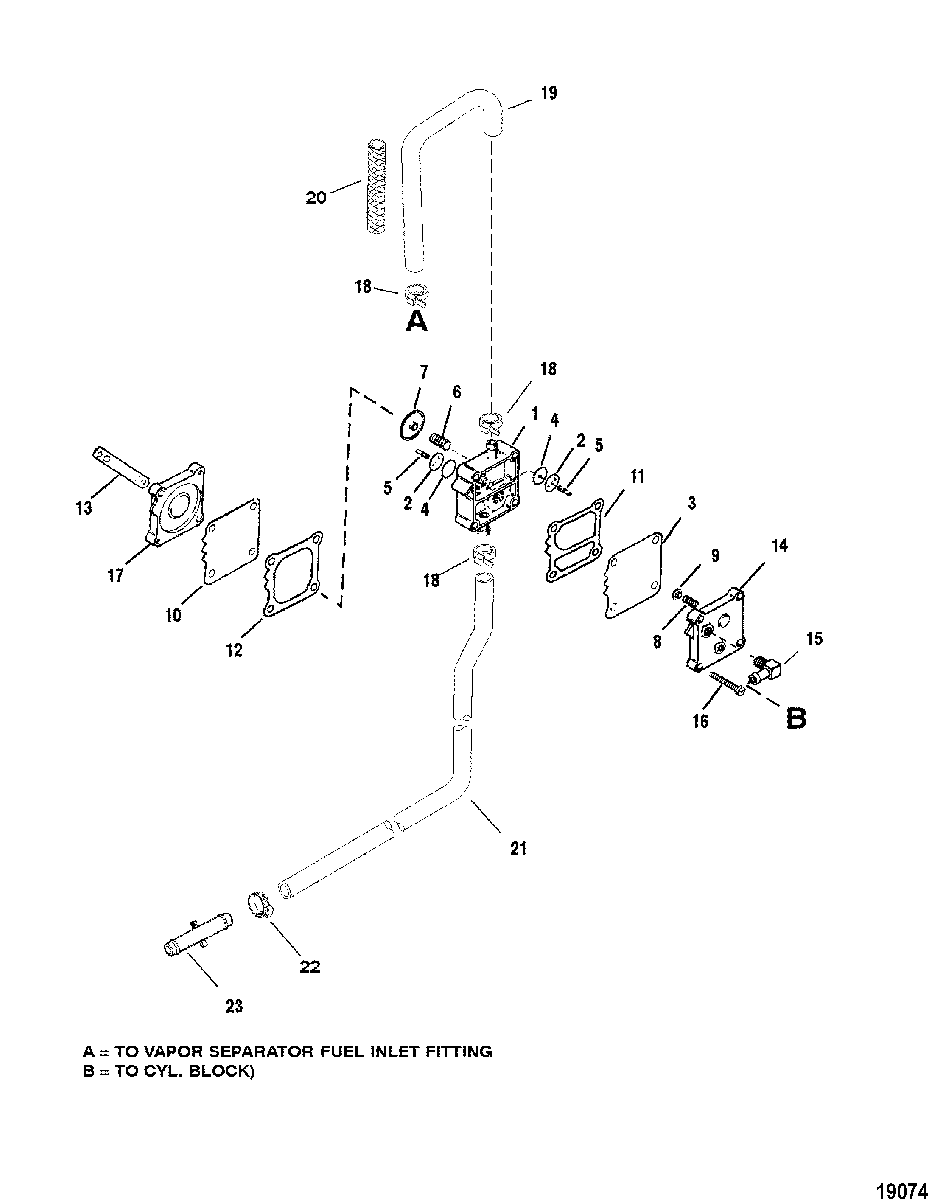

Fuel Pump для Mariner - 200 (DFI) 0G590000 THRU 0G760299

  • №
    Артикул
    Название
  • -
    14360A78 PUMP ASSEMBLY, Fuel
    PUMP ASSEMBLY, Fuel
  • 1
    NSS NOT SOLD SEPARATE, Fuel Pump
    NOT SOLD SEPARATE, Fuel Pump
  • 2
    21-857005A1 DIAPHAGM KIT
    DIAPHAGM KIT
  • 3
    NSS NOT SOLD SEPARATE, Diaphragm
    NOT SOLD SEPARATE, Diaphragm
  • 4
    NSS NOT SOLD SEPARATE, Check Valve-Rubber
    NOT SOLD SEPARATE, Check Valve-Rubber
  • 5
    NSS NOT SOLD SEPARATE, Retainer
    NOT SOLD SEPARATE, Retainer
  • 6
    NSS NOT SOLD SEPARATE, Spring
    NOT SOLD SEPARATE, Spring
  • 7
    NSS NOT SOLD SEPARATE, Cap
    NOT SOLD SEPARATE, Cap
  • 8
    NSS NOT SOLD SEPARATE, Spring
    NOT SOLD SEPARATE, Spring
  • 9
    NSS NOT SOLD SEPARATE, Cap
    NOT SOLD SEPARATE, Cap
  • 10
    NSS NOT SOLD SEPARATE, Diaphragm
    NOT SOLD SEPARATE, Diaphragm
  • 11
    NSS NOT SOLD SEPARATE, Gasket-Boost
    NOT SOLD SEPARATE, Gasket-Boost
  • 12
    NSS NOT SOLD SEPARATE, Gasket-Pulse
    NOT SOLD SEPARATE, Gasket-Pulse
  • 13
    27-987691 GASKET
    GASKET
  • 14
    987752 PLATE
    PLATE
  • 15
    22-856827 FITTING
    FITTING
  • 16
    10-82104540 SCREW, (M5 x 40)
    SCREW, (M5 x 40)
  • 16
    10-82130050 SCREW, (M6 x 50)
    SCREW, (M6 x 50)
  • 17
    144303 BASE
    BASE
  • 18
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 19
    32-856818 HOSE
    HOSE
  • 20
    23-85686953 SLEEVE, (27.00 Inches Bulk) (10-1/2 IN.)
    SLEEVE, (27.00 Inches Bulk) (10-1/2 IN.)
  • 21
    32-8M0064778 HOSE
    HOSE
  • 22
    54-856880 CLAMP, Hose (15.3)
    CLAMP, Hose (15.3)
  • 23
    22-822769 CONNECTOR
    CONNECTOR
  • -
    854198R99 POWERHEAD ASSEMBLY
    (200)
    POWERHEAD ASSEMBLY
    (200)
  • -
    854199A99 POWERHEAD ASSEMBLY
    (225)
    POWERHEAD ASSEMBLY
    (225)
  • -
    27-8M0133170 GASKET SET
    GASKET SET
