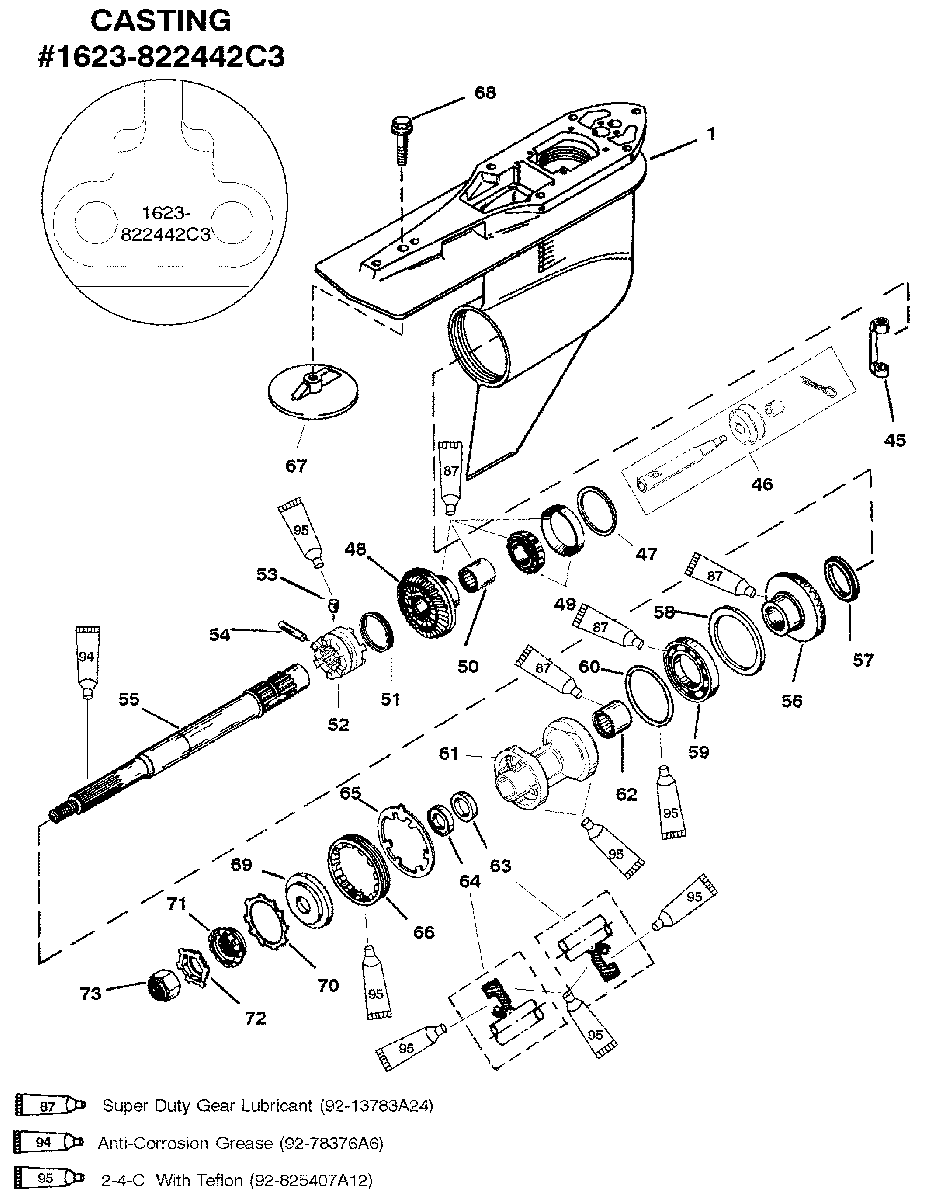

GEAR HSG(PROP SHAFT)STD. ROTATION(G438000 & UP) для Mariner - 200 (DFI) 0G386496 THRU 0G589999

  • №
    Артикул
    Название
  • 1
    1623-822442T77 GEAR HOUSING
    (BASIC-BLACK)
    GEAR HOUSING
    (BASIC-BLACK)
  • 1
    1623-822442T84 GEAR HOUSING
    (BASIC-GRAY)
    GEAR HOUSING
    (BASIC-GRAY)
  • 1
    1623-822442T79 GEAR HOUSING
    (BASIC-WHITE)
    GEAR HOUSING
    (BASIC-WHITE)
  • 45
    823903 SHIFT CRANK
    SHIFT CRANK
  • 46
    19755T7 SHIFT SPOOL KIT
    SHIFT SPOOL KIT
  • 47
    15-8M0063266 SHIM
    SHIM
  • 48
    43-859321A3 FORWARD GEAR SET (INCLUDES PINION GEAR)
    (1.75:1)
    FORWARD GEAR SET (INCLUDES PINION GEAR)
    (1.75:1)
  • 48
    43-878611A2 FORWARD GEAR SET (INCLUDES PINION GEAR)
    (1.87:1)
    FORWARD GEAR SET (INCLUDES PINION GEAR)
    (1.87:1)
  • 49
    31-30894A1 TAPERED ROLLER BEARING
    TAPERED ROLLER BEARING
  • 50
    31-30895T ROLLER BEARING
    ROLLER BEARING
  • 51
    24-30893 SPRING
    SPRING
  • 52
    52-859340T SLIDING CLUTCH
    SLIDING CLUTCH
  • 53
    17-828356 DETENT PIN
    DETENT PIN
  • 54
    17-8M0100263 CROSS PIN
    CROSS PIN
  • 55
    44-8M0140440 PROPELLER SHAFT
    PROPELLER SHAFT
  • 56
    43-859322A1 REVERSE GEAR
    (1.75:1)
    REVERSE GEAR
    (1.75:1)
  • 56
    43-844147T01 REVERSE GEAR
    (1.87:1)
    REVERSE GEAR
    (1.87:1)
  • 57
    23-824108 THRUST SPACER
    THRUST SPACER
  • 58
    681001 THRUST RING
    THRUST RING
  • 59
    30-88957T BALL BEARING
    BALL BEARING
  • 60
    25-31534 O RING
    O RING
  • 61
    818763T11 BEARING CARRIER
    BEARING CARRIER
  • 62
    31-30956T ROLLER BEARING
    ROLLER BEARING
  • 63
    26-14077 OIL SEAL (INSIDE)
    OIL SEAL (INSIDE)
  • 64
    26-76868 OIL SEAL (OUTSIDE)
    OIL SEAL (OUTSIDE)
  • 65
    14-18323 TAB WASHER
    TAB WASHER
  • 66
    8M2000347 COVER
    COVER
  • 67
    97-76214Q5 ANODIC PLATE
    THESE PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT
    ANODIC PLATE
    THESE PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT
  • 68
    10-806327 SCREW
    THESE PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT
    SCREW
    THESE PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT
  • 69
    12-835467Q01 THRUST HUB
    THESE PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT
    THRUST HUB
    THESE PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT
  • 70
    13-423511 LOCKWASHER
    THESE PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT
    LOCKWASHER
    THESE PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT
  • 71
    12-31211Q03 WASHER
    THESE PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT
    WASHER
    THESE PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT
  • 72
    14-816629Q TAB WASHER
    THESE PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT
    TAB WASHER
    THESE PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT
  • 73
    11-52707Q1 PROPELLER NUT
    THESE PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT
    PROPELLER NUT
    THESE PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT
  • -
    26-816575A4 G/H SEAL KIT
    G/H SEAL KIT
