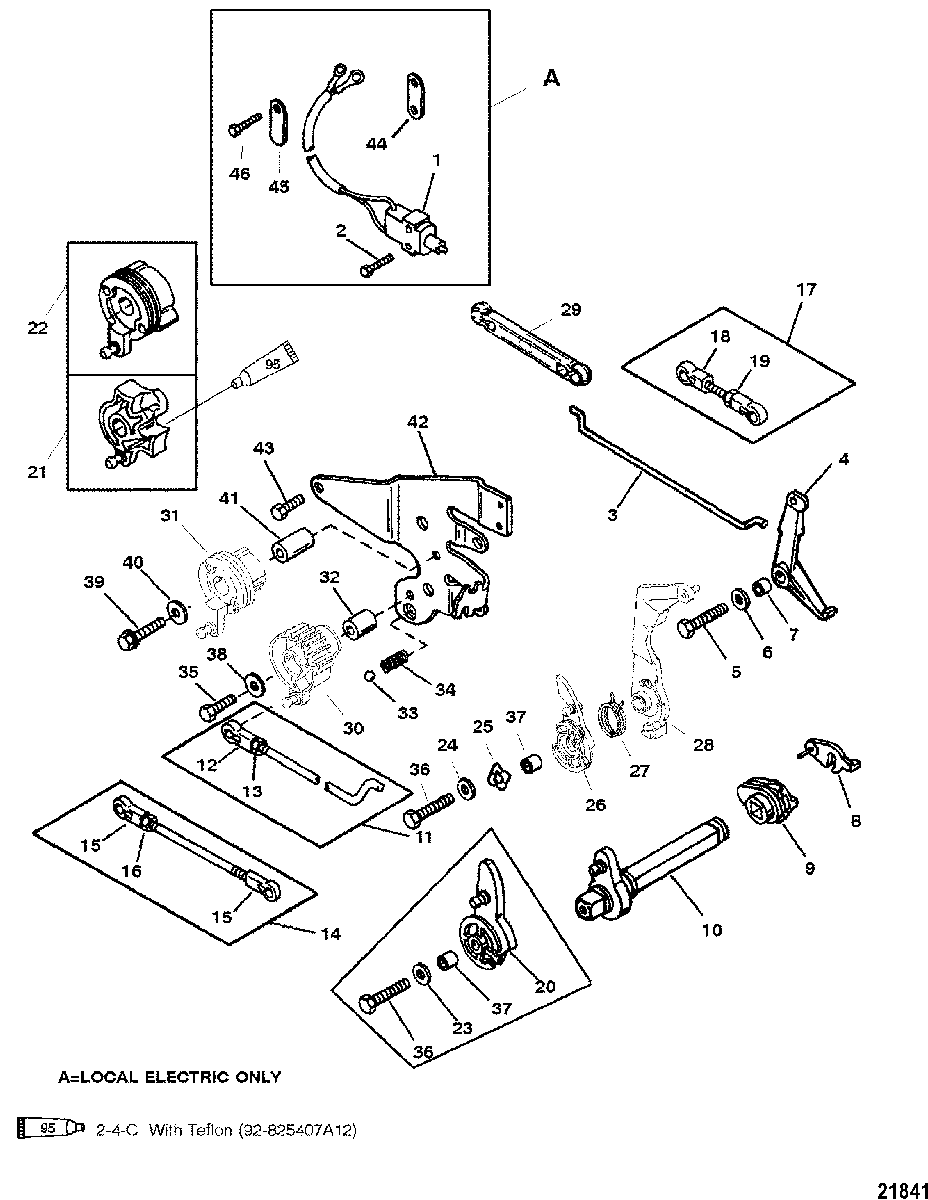

Throttle and Shift Linkage(Tiller Handle Shift) для Mariner - 20 JET 9807909 THRU 0P016999
-
№АртикулНазвание
-
187-813960A4 SWITCH ASSEMBLYSWITCH ASSEMBLY
-
210-88075020 SCREW, (M3.5 x 20) Stainless SteelSCREW, (M3.5 x 20) Stainless Steel
-
342161 LINK INTERLOCKLINK INTERLOCK
-
48236103 LEVER, Interlock ControlLEVER, Interlock Control
-
510-4000330 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
612-69056 WASHER, (.255 x .620 x .030) Stainless SteelWASHER, (.255 x .620 x .030) Stainless Steel
-
723-823806 BUSHINGBUSHING
-
8823862 LEVER, BackplateLEVER, Backplate
-
98238632 LEVER, Horizontal Shift Shaft (PORT)LEVER, Horizontal Shift Shaft (PORT)
-
108236011 SHIFT SHAFT (HORIZONTAL)SHIFT SHAFT (HORIZONTAL)
-
11881228A2 SHIFT LINK ASSEMBLYSHIFT LINK ASSEMBLY
-
12817428 SOCKETSOCKET
-
1311-45076 NUT, (#10-32) BrassNUT, (#10-32) Brass
-
14881227A1 LINK ASSEMBLY, ThrottleLINK ASSEMBLY, Throttle
-
15817428 SOCKETSOCKET
-
1611-45076 NUT, (#10-32) BrassNUT, (#10-32) Brass
-
17823857A1 LINK ASSEMBLY, Spark Adjustment
SN# USA-0G437999/BEL-9926999 & BelowLINK ASSEMBLY, Spark Adjustment
SN# USA-0G437999/BEL-9926999 & Below -
18817428 SOCKET
SN# USA-0G437999/BEL-9926999 & BelowSOCKET
SN# USA-0G437999/BEL-9926999 & Below -
1911-45076 NUT, (#10-32) Brass
SN# USA-0G437999/BEL-9926999 & BelowNUT, (#10-32) Brass
SN# USA-0G437999/BEL-9926999 & Below -
20823757A1 CAM ASSEMBLY, Throttle
SN# USA-0G286099/BEL-9881099 & BelowCAM ASSEMBLY, Throttle
SN# USA-0G286099/BEL-9881099 & Below -
20823757A1 CAM ASSEMBLY, Throttle
SN# USA-0G286100/BEL-9881100 THRU USA-0G437999/BEL-9926999CAM ASSEMBLY, Throttle
SN# USA-0G286100/BEL-9881100 THRU USA-0G437999/BEL-9926999 -
21823757A1 LEVER, Gear Shift
SN# USA-0G286099/BEL-9881099 & BelowLEVER, Gear Shift
SN# USA-0G286099/BEL-9881099 & Below -
21NSS NOT SOLD SEPARATE, Lever-Gear Shift
SN# USA-0G286100/BEL-9881100 THRU USA-0G437999/BEL-9926999NOT SOLD SEPARATE, Lever-Gear Shift
SN# USA-0G286100/BEL-9881100 THRU USA-0G437999/BEL-9926999 -
22823757A1 LEVER, Primary
SN# USA-0G286099/BEL-9881099 & BelowLEVER, Primary
SN# USA-0G286099/BEL-9881099 & Below -
22NSS NOT SOLD SEPARATE, Primary Lever
SN# USA-0G286100/BEL-9881100 THRU USA-0G437999/BEL-9926999NOT SOLD SEPARATE, Primary Lever
SN# USA-0G286100/BEL-9881100 THRU USA-0G437999/BEL-9926999 -
2312-827408 WASHER (Use with Reference #20)
SN# USA-0G286099/BEL-9881099 & BelowWASHER (Use with Reference #20)
SN# USA-0G286099/BEL-9881099 & Below -
2312-69056 WASHER, (.255 x .620 x .030) Stainless Steel (Use with Reference #20)
SN# USA-0G286100/BEL-9881100 THRU USA-0G437999/BEL-9926999WASHER, (.255 x .620 x .030) Stainless Steel (Use with Reference #20)
SN# USA-0G286100/BEL-9881100 THRU USA-0G437999/BEL-9926999 -
2412-65567 WASHER, (.265 x .750 x .048) Stainless Steel
SN# USA-0G438000/BEL-9927000 & UpWASHER, (.265 x .750 x .048) Stainless Steel
SN# USA-0G438000/BEL-9927000 & Up -
2513-99611 WAVE WASHER
SN# USA-0G438000/BEL-9927000 & UpWAVE WASHER
SN# USA-0G438000/BEL-9927000 & Up -
268319781 CAM, Throttle
SN# USA-0G438000/BEL-9927000 & UpCAM, Throttle
SN# USA-0G438000/BEL-9927000 & Up -
2724-42164 SPRING
SN# USA-0G438000/BEL-9927000 & UpSPRING
SN# USA-0G438000/BEL-9927000 & Up -
28888191 SPARK ARM
SN# USA-0G438000/BEL-9927000 & UpSPARK ARM
SN# USA-0G438000/BEL-9927000 & Up -
298327471 TIMING LINK
SN# USA-0G438000/BEL-9927000 & UpTIMING LINK
SN# USA-0G438000/BEL-9927000 & Up -
308238083 SECONDARY GEAR
SN# USA-0G438000/BEL-9927000 & UpSECONDARY GEAR
SN# USA-0G438000/BEL-9927000 & Up -
318238092 PRIMARY GEAR
SN# USA-0G438000/BEL-9927000 & UpPRIMARY GEAR
SN# USA-0G438000/BEL-9927000 & Up -
3223-823806 BUSHINGBUSHING
-
3330-93008 BALLBALL
-
3424-930061 SPRINGSPRING
-
3510-4000329 SCREW, (M6 x 20)SCREW, (M6 x 20)
-
3610-4000330 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
3723-823806 BUSHINGBUSHING
-
3812-69056 WASHER, (.255 x .620 x .030) Stainless SteelWASHER, (.255 x .620 x .030) Stainless Steel
-
3910-4000331 SCREW, (M6 x 30)SCREW, (M6 x 30)
-
4012-69056 WASHER, (.255 x .620 x .030) Stainless SteelWASHER, (.255 x .620 x .030) Stainless Steel
-
4123-823807 BUSHINGBUSHING
-
428238102 CONTROL PLATFORMCONTROL PLATFORM
-
4310-4006731 SCREW, (M6 x 16) Stainless SteelSCREW, (M6 x 16) Stainless Steel
-
44824923 PLATEPLATE
-
4554-12627 STRAPSTRAP
-
4610-40011107 SCREW, (M5 x 16) Stainless SteelSCREW, (M5 x 16) Stainless Steel
