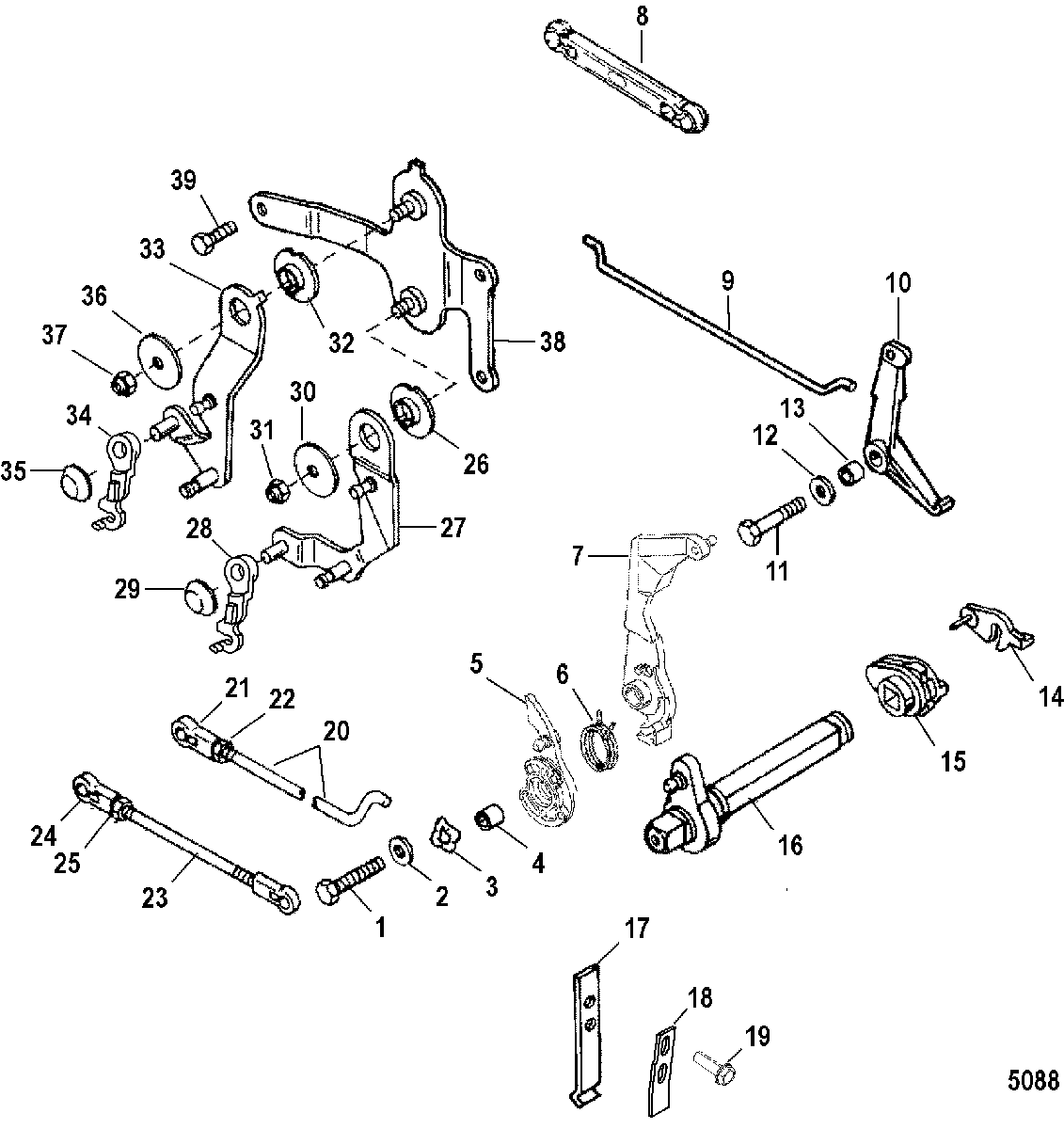

Throttle and Shift Linkage(Remote Control) для Mariner - 20 (2 CYL.) 0P325500 & Up

  • №
    Артикул
    Название
  • 1
    10-4000330 SCREW, (M6 x 25)
    SCREW, (M6 x 25)
  • 2
    12-65567 WASHER, (.265 x .750 x .048) Stainless Steel
    WASHER, (.265 x .750 x .048) Stainless Steel
  • 3
    13-99611 WAVE WASHER
    WAVE WASHER
  • 4
    23-823806 BUSHING
    BUSHING
  • 5
    8319781 CAM, Throttle
    CAM, Throttle
  • 6
    24-42164 SPRING
    SPRING
  • 7
    888191 SPARK ARM
    SPARK ARM
  • 8
    8327471 TIMING LINK
    TIMING LINK
  • 9
    42161 LINK INTERLOCK
    LINK INTERLOCK
  • 10
    8236103 LEVER, Interlock Control
    LEVER, Interlock Control
  • 11
    10-4000330 SCREW, (M6 x 25)
    SCREW, (M6 x 25)
  • 12
    12-69056 WASHER, (.255 x .620 x .030) Stainless Steel
    WASHER, (.255 x .620 x .030) Stainless Steel
  • 13
    23-823806 BUSHING
    BUSHING
  • 14
    823862 LEVER, Backplate
    LEVER, Backplate
  • 15
    8238632 LEVER, Horizontal Shift Shaft, Port
    LEVER, Horizontal Shift Shaft, Port
  • 16
    8236011 SHIFT SHAFT, Horizontal
    SHIFT SHAFT, Horizontal
  • 17
    24-826077 SPRING, Detent
    SPRING, Detent
  • 18
    824994 SPRING, Plate
    SPRING, Plate
  • 19
    10-40011107 SCREW, (M5 x 16) Stainless Steel
    SCREW, (M5 x 16) Stainless Steel
  • 20
    881228A1 SHIFT ROD ASSEMBLY
    SHIFT ROD ASSEMBLY
  • 21
    817428 SOCKET
    SOCKET
  • 22
    11-45076 NUT, (#10-32) Brass
    NUT, (#10-32) Brass
  • 23
    881227A3 LINK ASSEMBLY, Throttle
    LINK ASSEMBLY, Throttle
  • 24
    817428 SOCKET
    SOCKET
  • 25
    11-45076 NUT, (#10-32) Brass
    NUT, (#10-32) Brass
  • 26
    23-825319 NYLINER
    NYLINER
  • 27
    8251681 LEVER, Shift
    LEVER, Shift
  • 28
    822459 RETAINER
    RETAINER
  • 29
    11-825677 PUSH NUT
    PUSH NUT
  • 30
    12-35280 WASHER, (.255 x .620 x .030) Stainless Steel
    WASHER, (.255 x .620 x .030) Stainless Steel
  • 31
    11-401386 NUT, (M6)
    NUT, (M6)
  • 32
    23-825319 NYLINER
    NYLINER
  • 33
    825169 LEVER, Throttle
    LEVER, Throttle
  • 34
    822459 RETAINER
    RETAINER
  • 35
    11-825677 PUSH NUT
    PUSH NUT
  • 36
    12-35280 WASHER, (.255 x .620 x .030) Stainless Steel
    WASHER, (.255 x .620 x .030) Stainless Steel
  • 37
    11-401386 NUT, (M6) Stainless Steel
    NUT, (M6) Stainless Steel
  • 38
    8251701 BRACKET, Mounting
    BRACKET, Mounting
  • 39
    10-4006731 SCREW, (M6 x 16)
    SCREW, (M6 x 16)
