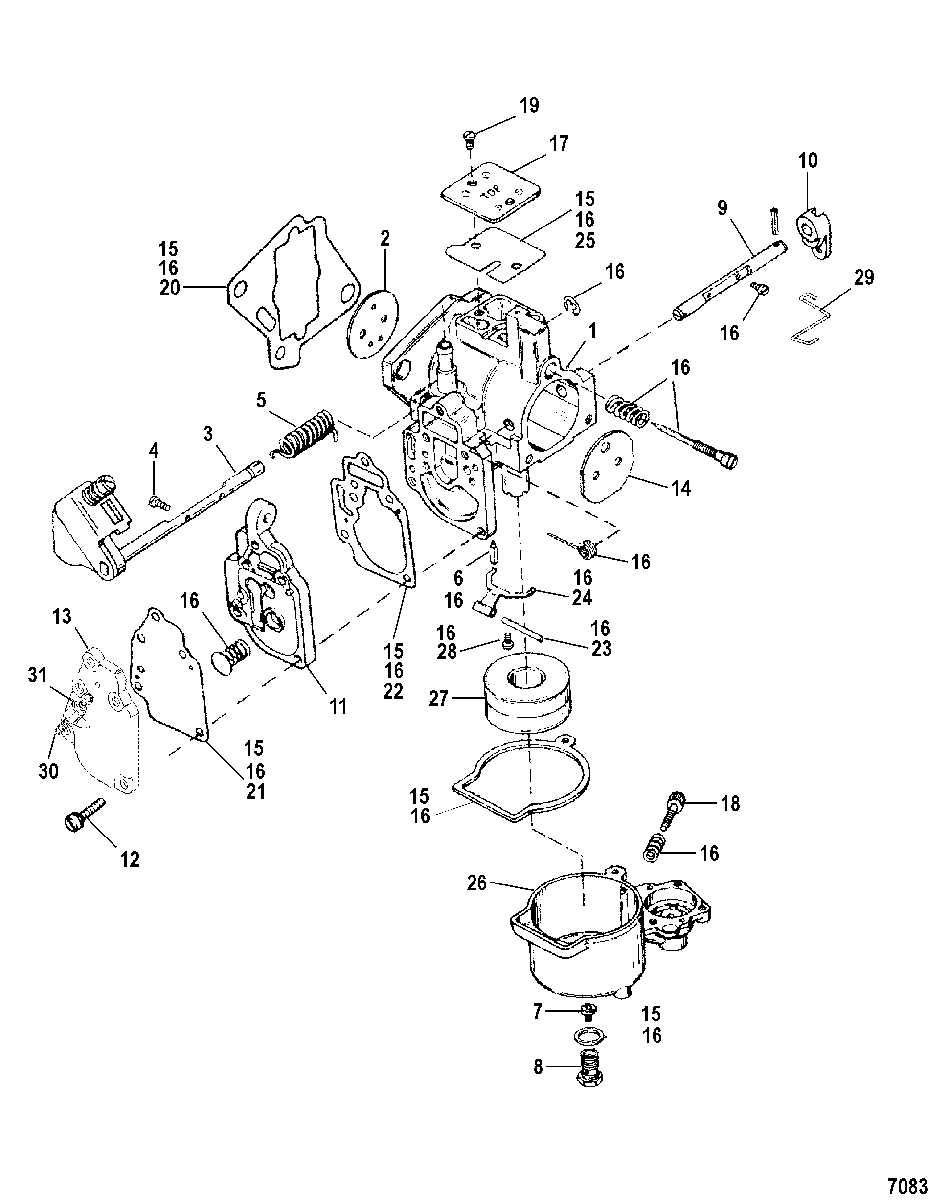

Carburetor(Seapro/Marathon 15/25 & Super 15) для Mariner - 20 (2 CYL.) 0P017000 THRU 0P325499
-
№АртикулНазвание
-
11390-817405T20 CARBURETOR, (WMC-54A)CARBURETOR, (WMC-54A)
-
11392-823907T12 CARBURETOR, (WMC-52A)CARBURETOR, (WMC-52A)
-
11392-823907T13 CARBURETOR, (WMC-56A)CARBURETOR, (WMC-56A)
-
21395-96461 VALVE, Throttle
(WMC-54A)VALVE, Throttle
(WMC-54A) -
2815133 VALVE, Throttle
(WMC-52A/56A)VALVE, Throttle
(WMC-52A/56A) -
31395-96951 SHAFT, ThrottleSHAFT, Throttle
-
41395-804997 SCREWSCREW
-
51395-804996 SPRINGSPRING
-
61395-803861 VALVE, Inlet NeedleVALVE, Inlet Needle
-
71395-6201 JET, (.080)
(WMC-54A)JET, (.080)
(WMC-54A) -
71399-5317 JET, (.046)
(WMC-52A/56A)JET, (.046)
(WMC-52A/56A) -
81395-9171 PLUGPLUG
-
91395-8113541 SHAFT, ChokeSHAFT, Choke
-
101395-811805 LEVER, ChokeLEVER, Choke
-
111395-9702 BODYBODY
-
121395-9643 SCREWSCREW
-
131395-96371 COVER, Fuel PumpCOVER, Fuel Pump
-
141395-811806 VALVE, ChokeVALVE, Choke
-
151395-97611 GASKET/DIAPHRAGM KITGASKET/DIAPHRAGM KIT
-
161395-8237072 REPAIR KITREPAIR KIT
-
171395-9699 PLATEPLATE
-
181395-811360 SCREW, Bowl DrainSCREW, Bowl Drain
-
191395-9696 SCREWSCREW
-
2027-192061 GASKET, CarburetorGASKET, Carburetor
-
211395-9635 DIAPHRAGM/GASKETDIAPHRAGM/GASKET
-
221395-9633 GASKETGASKET
-
23F10064 SHAFTSHAFT
-
241395-824401 LEVER, FloatLEVER, Float
-
2527-44426 GASKETGASKET
-
261395-811353 BOWL, FuelBOWL, Fuel
-
271395-91691 FLOATFLOAT
-
281395-5902 SCREW, (#6-32 x .187)SCREW, (#6-32 x .187)
-
29817425 LINK, ChokeLINK, Choke
-
3010-40019111 SCREW, (M5 x 35)SCREW, (M5 x 35)
-
3111-400211 NUT, (M5) Stainless SteelNUT, (M5) Stainless Steel
-
-27-41499A88 GASKET SETGASKET SET
-
-804946T02 POWERHEAD ASSEMBLYPOWERHEAD ASSEMBLY
