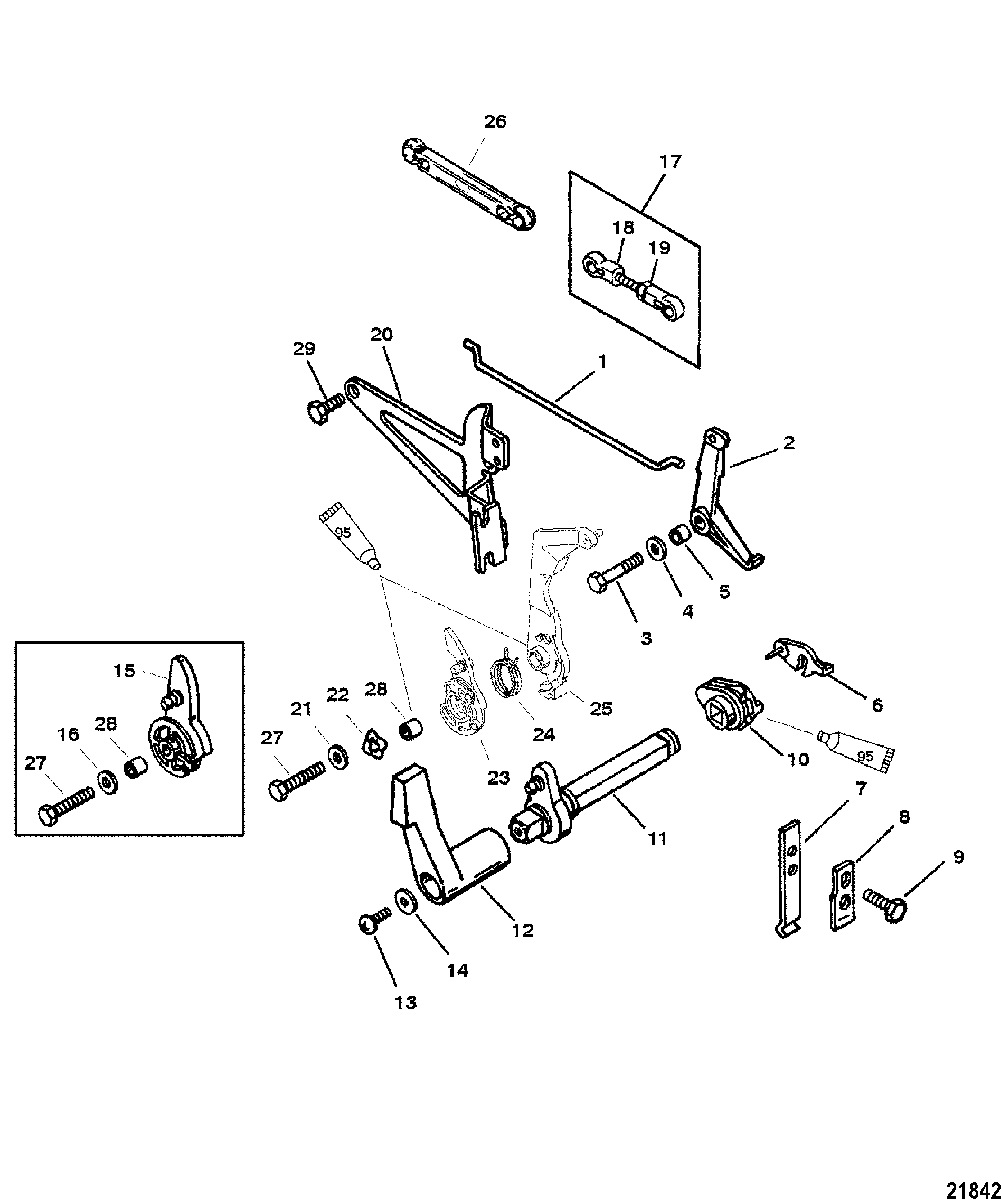

Throttle and Shift Linkage(Side Shift) для Mariner - 20 (2 CYL.) 0G044027 THRU 0G760299

  • №
    Артикул
    Название
  • 1
    42161 LINK INTERLOCK
    LINK INTERLOCK
  • 2
    8236103 LEVER, Interlock Control
    (20/25)
    LEVER, Interlock Control
    (20/25)
  • 2
    8236103 LEVER, Interlock Control
    (Jet 20) SN# 0G157846 & Up
    LEVER, Interlock Control
    (Jet 20) SN# 0G157846 & Up
  • 2
    827371 LEVER
    (Jet 20) SN# 0G157845 & Below
    LEVER
    (Jet 20) SN# 0G157845 & Below
  • 3
    10-4000330 SCREW, (M6 x 25)
    SCREW, (M6 x 25)
  • 4
    12-69056 WASHER, (.255 x .620 x .030) Stainless Steel
    WASHER, (.255 x .620 x .030) Stainless Steel
  • 5
    23-823806 BUSHING
    BUSHING
  • 6
    823862 LEVER, Backplate
    (Not used on Jet 20 Serial Number 0G157845 and Below)
    LEVER, Backplate
    (Not used on Jet 20 Serial Number 0G157845 and Below)
  • 7
    24-826077 SPRING, Detent
    (Not used on Jet 20 Serial Number 0G157845 and Below)
    SPRING, Detent
    (Not used on Jet 20 Serial Number 0G157845 and Below)
  • 8
    824994 SPRING, Plate
    (Not used on Jet 20 Serial Number 0G157845 and Below)
    SPRING, Plate
    (Not used on Jet 20 Serial Number 0G157845 and Below)
  • 9
    10-40011107 SCREW, (M5 x 16) Stainless Steel
    ((Not used on Jet 20 Serial Number 0G157845 and Below)
    SCREW, (M5 x 16) Stainless Steel
    ((Not used on Jet 20 Serial Number 0G157845 and Below)
  • 10
    8238632 LEVER, Horizontal Shift Shaft (PORT)
    (Not used on Jet 20 Serial Number 0G157845 and Below)
    LEVER, Horizontal Shift Shaft (PORT)
    (Not used on Jet 20 Serial Number 0G157845 and Below)
  • 11
    8236011 SHIFT SHAFT (HORIZONTAL)
    (Not used on Jet 20 Serial Number 0G157845 and Below)
    SHIFT SHAFT (HORIZONTAL)
    (Not used on Jet 20 Serial Number 0G157845 and Below)
  • 12
    8239521 SHIFT HANDLE
    (Not used on Jet 20 Serial Number 0G157845 and Below)
    SHIFT HANDLE
    (Not used on Jet 20 Serial Number 0G157845 and Below)
  • 13
    10-40019108 SCREW, (M5 x 20)
    (Not used on Jet 20 Serial Number 0G157845 and Below)
    SCREW, (M5 x 20)
    (Not used on Jet 20 Serial Number 0G157845 and Below)
  • 14
    12-4002314 WASHER
    (Not used on Jet 20 Serial Number 0G157845 and Below)
    WASHER
    (Not used on Jet 20 Serial Number 0G157845 and Below)
  • 15
    8237571 CAM, Throttle
    20 JET
    CAM, Throttle
    20 JET
  • 15
    8237571 CAM, Throttle
    (20/25) SN# USA-0G437999/BEL-9926999 & Below
    CAM, Throttle
    (20/25) SN# USA-0G437999/BEL-9926999 & Below
  • 16
    12-69056 WASHER, (.255 x .620 x .030) Stainless Steel
    20 JET
    WASHER, (.255 x .620 x .030) Stainless Steel
    20 JET
  • 16
    12-69056 WASHER, (.255 x .620 x .030) Stainless Steel
    (20/25) SN# USA-0G437999/BEL-9926999 & Below
    WASHER, (.255 x .620 x .030) Stainless Steel
    (20/25) SN# USA-0G437999/BEL-9926999 & Below
  • 17
    823857A1 LINK ASSEMBLY, Spark Adjustment
    20 JET
    LINK ASSEMBLY, Spark Adjustment
    20 JET
  • 17
    823857A1 LINK ASSEMBLY, Spark Adjustment
    20/25 SN# USA-0G437999/BEL-9926999 & Below
    LINK ASSEMBLY, Spark Adjustment
    20/25 SN# USA-0G437999/BEL-9926999 & Below
  • 18
    817428 SOCKET
    20 JET
    SOCKET
    20 JET
  • 18
    817428 SOCKET
    (20/25) SN# USA-0G437999/BEL-9926999 & Below
    SOCKET
    (20/25) SN# USA-0G437999/BEL-9926999 & Below
  • 19
    11-45076 NUT, (#10-32) Brass
    20 JET
    NUT, (#10-32) Brass
    20 JET
  • 19
    11-45076 NUT, (#10-32) Brass
    (20/25) SN# USA-0G437999/BEL-9926999 & Below
    NUT, (#10-32) Brass
    (20/25) SN# USA-0G437999/BEL-9926999 & Below
  • 20
    8237581 BRACKET, Cable Anchor
    20 JET
    BRACKET, Cable Anchor
    20 JET
  • 20
    8237581 BRACKET, Cable Anchor
    (20/25) SN# USA-0G437999/BEL-9926999 & Below
    BRACKET, Cable Anchor
    (20/25) SN# USA-0G437999/BEL-9926999 & Below
  • 20
    8237582 BRACKET, Cable Anchor
    (20/25) SN# USA-0G438000/BEL-9927000 & Up
    BRACKET, Cable Anchor
    (20/25) SN# USA-0G438000/BEL-9927000 & Up
  • 21
    12-65567 WASHER, (.265 x .750 x .048) Stainless Steel
    (20/25) SN# USA-0G438000/BEL-9927000 & Up
    WASHER, (.265 x .750 x .048) Stainless Steel
    (20/25) SN# USA-0G438000/BEL-9927000 & Up
  • 22
    13-99611 WAVE WASHER
    (20/25) SN# USA-0G438000/BEL-9927000 & Up
    WAVE WASHER
    (20/25) SN# USA-0G438000/BEL-9927000 & Up
  • 23
    8319781 CAM, Throttle
    (20/25) SN# USA-0G438000/BEL-9927000 & Up
    CAM, Throttle
    (20/25) SN# USA-0G438000/BEL-9927000 & Up
  • 24
    24-42164 SPRING
    (20/25) SN# USA-0G438000/BEL-9927000 & Up
    SPRING
    (20/25) SN# USA-0G438000/BEL-9927000 & Up
  • 25
    888191 SPARK ARM
    (20/25) SN# USA-0G438000/BEL-9927000 & Up
    SPARK ARM
    (20/25) SN# USA-0G438000/BEL-9927000 & Up
  • 26
    8327471 TIMING LINK
    (20/25) SN# USA-0G438000/BEL-9927000 & Up
    TIMING LINK
    (20/25) SN# USA-0G438000/BEL-9927000 & Up
  • 27
    10-4000330 SCREW, (M6 x 25)
    SCREW, (M6 x 25)
  • 28
    23-823806 BUSHING
    BUSHING
  • 29
    10-4006731 SCREW, (M6 x 16) Stainless Steel
    SCREW, (M6 x 16) Stainless Steel
