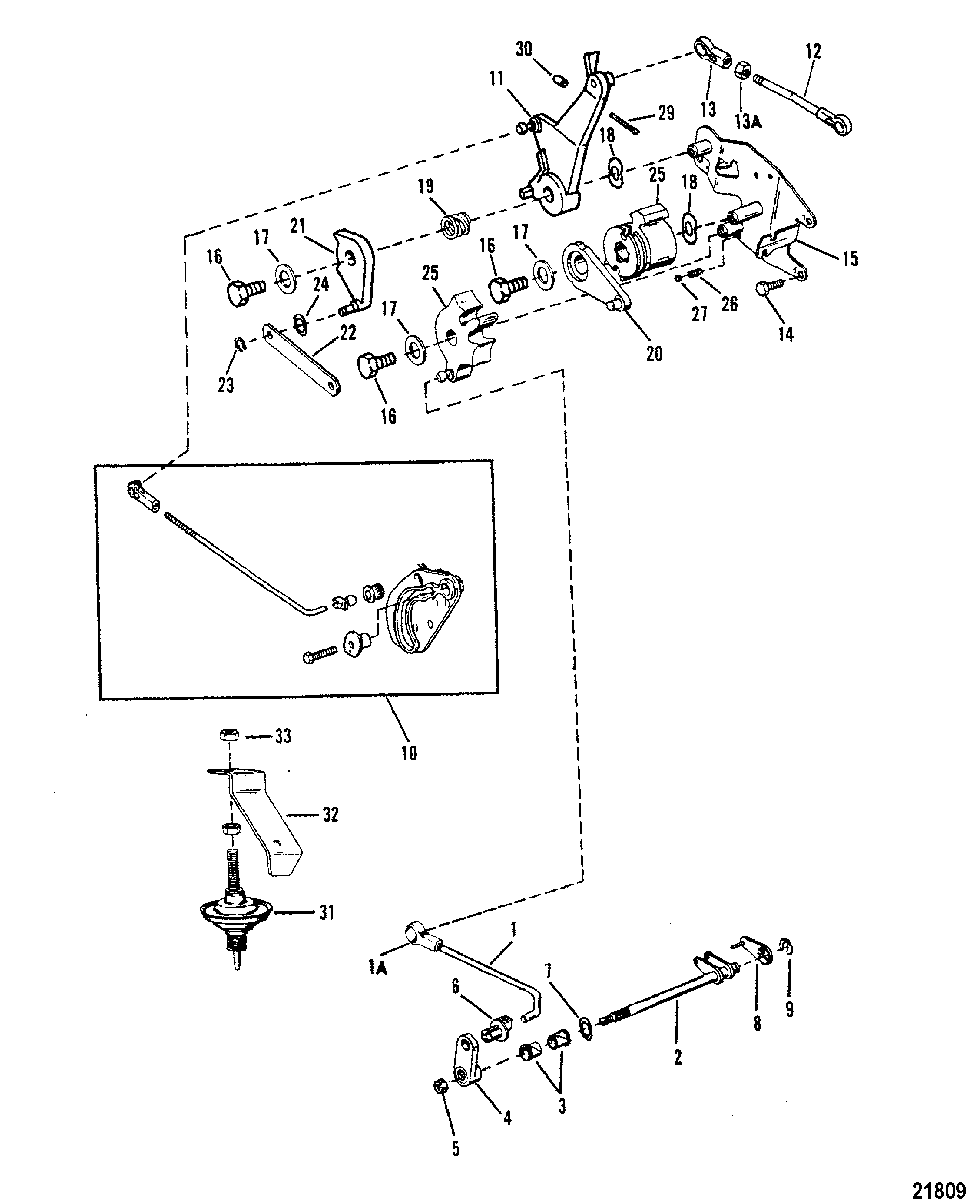

Throttle and Shift Linkage(Tiller Handle Shift) для Mariner - 20 (2 CYL.) 0B238464 THRU 0G044026
-
№АртикулНазвание
-
117725A1 SHIFT LINKSHIFT LINK
-
1A817428 SOCKETSOCKET
-
295027A6 SHIFT SHAFT, HORIZONTALSHIFT SHAFT, HORIZONTAL
-
323-60762 BUSHINGBUSHING
-
417724A1 LEVERLEVER
-
511-401385 NUT, (M5)NUT, (M5)
-
623-932481 BUSHINGBUSHING
-
713-34632 WASHERWASHER
-
842156 LEVERLEVER
-
953-95019 RING, Retaining (OLD DESIGN)RING, Retaining (OLD DESIGN)
-
1017764A2 LINK KIT, ThrottleLINK KIT, Throttle
-
11433601 LEVERLEVER
-
12817429 TIMING LINKTIMING LINK
-
13817428 SOCKETSOCKET
-
13A11-45076 NUT, (#10-32) BrassNUT, (#10-32) Brass
-
1410-4000328 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
1512863A1 PLATFORMPLATFORM
-
1610-16955 SCREW, (M6 x 8)SCREW, (M6 x 8)
-
1712-4002316 WASHERWASHER
-
1813-69708 WAVE WASHERWAVE WASHER
-
1924-89540 SPRINGSPRING
-
2092362A1 LEVERLEVER
-
21937791 LEVERLEVER
-
22867171 LINKLINK
-
2353-17680 RING, RetainingRING, Retaining
-
2413-29720 WAVE WASHERWAVE WASHER
-
2594085A1 GEARGEAR
-
2624-930061 SPRINGSPRING
-
2730-93008 BALLBALL
-
2910-118591 SCREW, (.190-32 x 1.750)SCREW, (.190-32 x 1.750)
-
3048039 CAPCAP
-
3192425 DASHPOT (Use where Applicable)DASHPOT (Use where Applicable)
-
3293001 BRACKET (Use where Applicable)BRACKET (Use where Applicable)
-
3311-28770 NUT, (.312-24) Stainless Steel (Use where Applicable)NUT, (.312-24) Stainless Steel (Use where Applicable)
