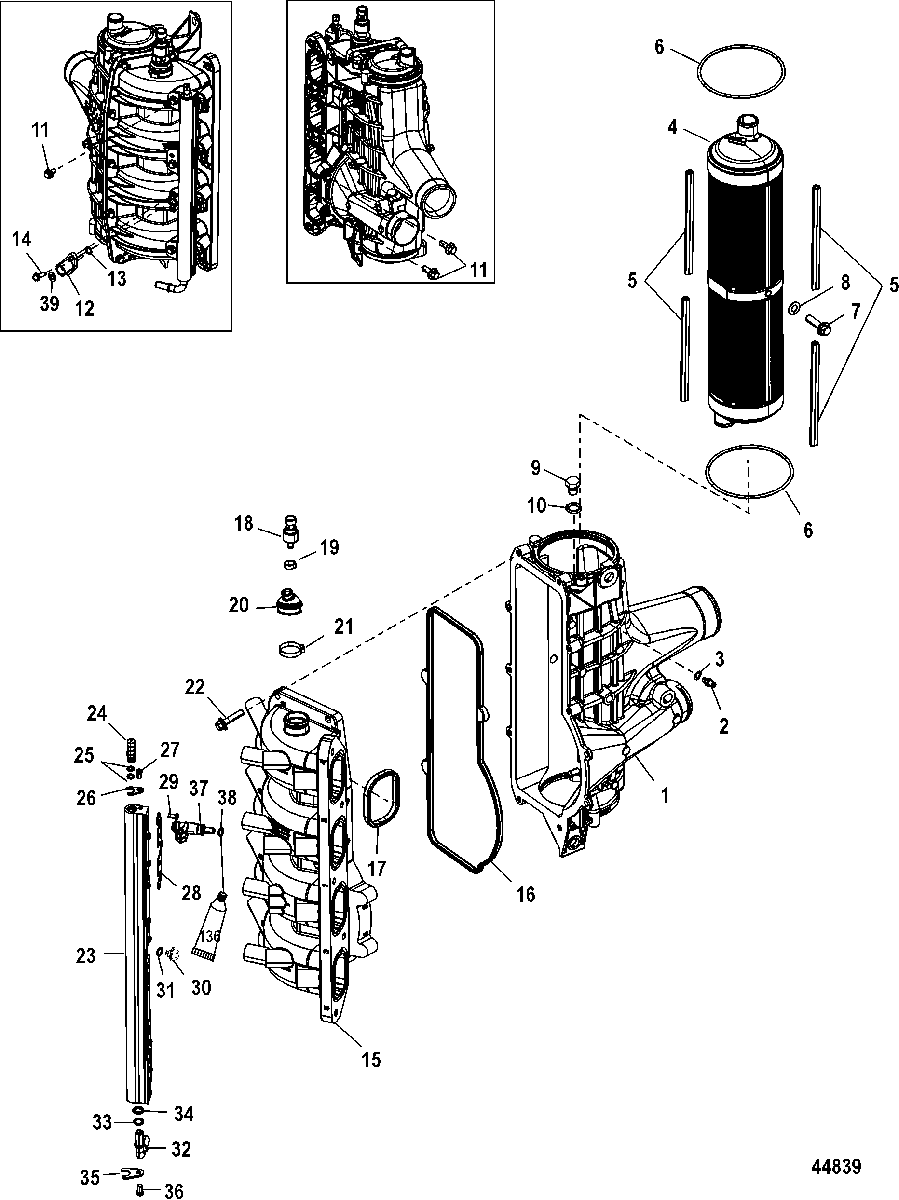

Charge Cooler/Intake Manifold(Gen I) End Cap Not Serviced для Mariner - 175 VERADO (4-STROKE)(4 CYL.) 0P514869 & Up
-
№АртикулНазвание
-
-8M0131232 IAFM ASSEMBLY
SN# 1B733800 & BelowIAFM ASSEMBLY
SN# 1B733800 & Below -
-8M0131232 MODULE ASSEMBLY, Intergrated Air/Fuel
SN# 1B733801 thru 1B842419, 1B870105 THRU 1B870852MODULE ASSEMBLY, Intergrated Air/Fuel
SN# 1B733801 thru 1B842419, 1B870105 THRU 1B870852 -
18M0132387 CAC ASSEMBLYCAC ASSEMBLY
-
2NSS NOT SOLD SEPARATE, FittingNOT SOLD SEPARATE, Fitting
-
3NSS NOT SOLD SEPARATE, O-RingNOT SOLD SEPARATE, O-Ring
-
4NSS NOT SOLD SEPARATE, Stack AssemblyNOT SOLD SEPARATE, Stack Assembly
-
5NSS NOT SOLD SEPARATE, Seal KitNOT SOLD SEPARATE, Seal Kit
-
6NSS NOT SOLD SEPARATE, SealNOT SOLD SEPARATE, Seal
-
7NSS NOT SOLD SEPARATE, ScrewNOT SOLD SEPARATE, Screw
-
8NSS NOT SOLD SEPARATE, WasherNOT SOLD SEPARATE, Washer
-
919-8M0048079 FITTINGFITTING
-
10NSS NOT SOLD SEPARATE, O-RingNOT SOLD SEPARATE, O-Ring
-
1110-895053 SCREW, (M6 x 15)SCREW, (M6 x 15)
-
12891663001 SENSOR ASSEMBLY, TemperatureSENSOR ASSEMBLY, Temperature
-
1325-892317001 O-RINGO-RING
-
1410-895054 SCREW, (M4 x 16 MM)SCREW, (M4 x 16 MM)
-
158M0041478 MANIFOLD ASSEMBLY, IntakeMANIFOLD ASSEMBLY, Intake
-
1626-896663 SEALSEAL
-
17895020 SEALSEAL
-
188M6000639 SENSORSENSOR
-
1954-13791 CLAMP, (15.7 mm), Map Sensor to BootCLAMP, (15.7 mm), Map Sensor to Boot
-
20892952500 BOOTBOOT
-
2154-888988001 CLAMP, (36.1 mm)CLAMP, (36.1 mm)
-
2210-8M0103807 SCREW, (M6 x 25 MM)SCREW, (M6 x 25 MM)
-
23896503A01 FUEL RAIL KITFUEL RAIL KIT
-
24895028A01 VALVE, SchraderVALVE, Schrader
-
2525-895056 O-RINGO-RING
-
26895026 BRACKETBRACKET
-
2710-895051 SCREW, (M5 x 10)SCREW, (M5 x 10)
-
28895024 BRACKETBRACKET
-
2910-895051 SCREW, (M5 x 10)SCREW, (M5 x 10)
-
30895025 DAMPERDAMPER
-
3125-851889 O-RINGO-RING
-
3232-895029A01 TUBE KIT, Fuel InletTUBE KIT, Fuel Inlet
-
3312-895055 WASHERWASHER
-
3425-895057 O-RINGO-RING
-
35895027 BRACKETBRACKET
-
3610-895051 SCREW, (M5 x 10)SCREW, (M5 x 10)
-
378M0041571 INJECTOR, FuelINJECTOR, Fuel
-
3825-851889 O-RINGO-RING
-
398M0142578 GASKETGASKET
