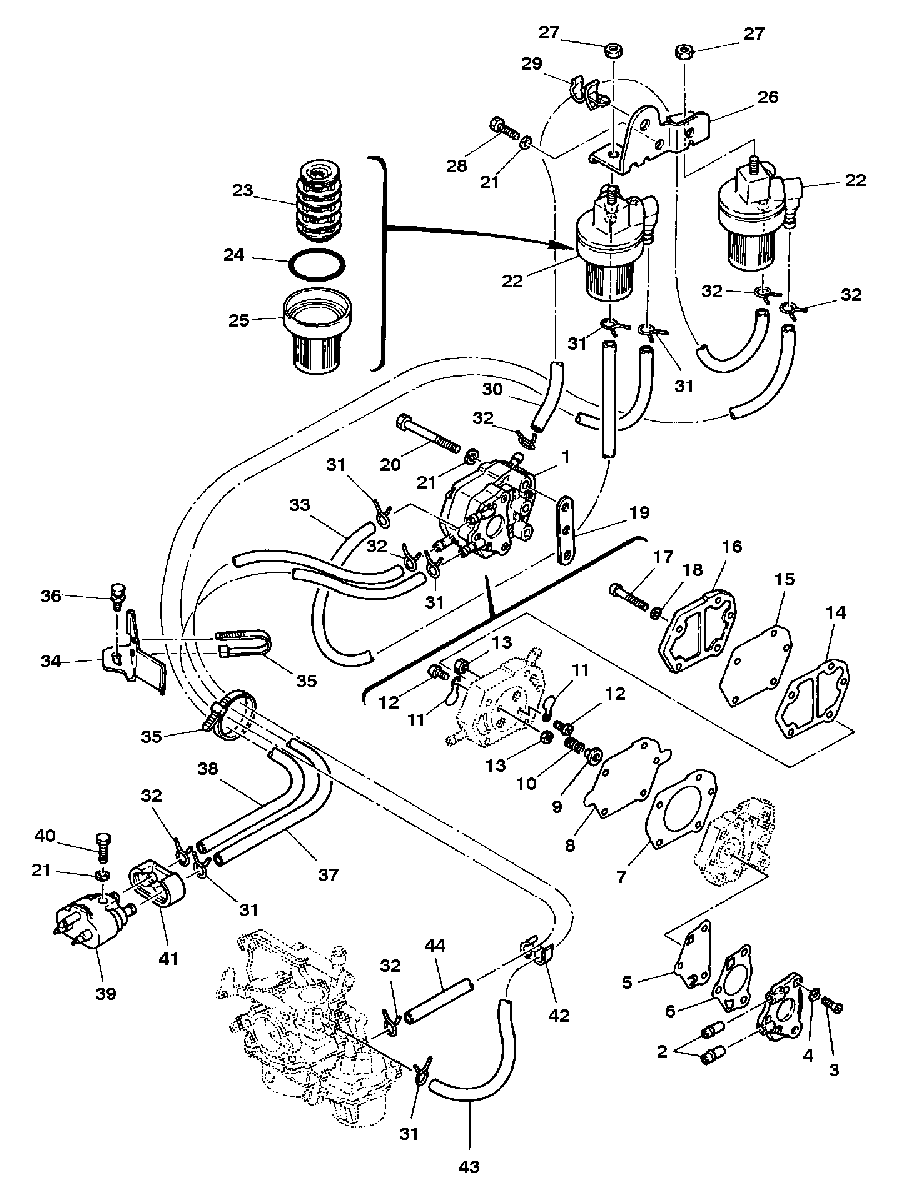

FUEL PUMP/FUEL LINES для Mariner - 15K 6M7-100101 AND UP
-
№АртикулНазвание
-
1804358T1 FUEL PUMP ASSEMBLYFUEL PUMP ASSEMBLY
-
222-94716M CONNECTORCONNECTOR
-
310-94724M SCREWSCREW
-
413-94725M LOCKWASHERLOCKWASHER
-
594717M DIAPHRAGMDIAPHRAGM
-
627-94718M GASKETGASKET
-
727-80613 GASKETGASKET
-
880606M DIAPHRAGMDIAPHRAGM
-
980611M PLATEPLATE
-
1024-80610M SPRINGSPRING
-
1121-41888M CHECK VALVECHECK VALVE
-
1210-41889M SCREWSCREW
-
1311-82537M NUTNUT
-
1484141M DIAPHRAGMDIAPHRAGM
-
1527-80614 GASKETGASKET
-
1680607M COVERCOVER
-
1710-82522M SCREWSCREW
-
1813-82186M LOCKWASHERLOCKWASHER
-
1927-811263M GASKETGASKET
-
2010-84931M BOLTBOLT
-
2112-82214M WASHERWASHER
-
2235-8M0121336 FUEL FILTER
M-100131 ML-402041 AND UP REF. #22 HAS EXTERNAL THREAD REF. #25 HAS INTERNAL THREADFUEL FILTER
M-100131 ML-402041 AND UP REF. #22 HAS EXTERNAL THREAD REF. #25 HAS INTERNAL THREAD -
2335-826965T FILTER
M-100131 ML-402041 AND UP REF. #22 HAS EXTERNAL THREAD REF. #25 HAS INTERNAL THREADFILTER
M-100131 ML-402041 AND UP REF. #22 HAS EXTERNAL THREAD REF. #25 HAS INTERNAL THREAD -
2425-826966T O-RING
M-100131 ML-402041 AND UP REF. #22 HAS EXTERNAL THREAD REF. #25 HAS INTERNAL THREADO-RING
M-100131 ML-402041 AND UP REF. #22 HAS EXTERNAL THREAD REF. #25 HAS INTERNAL THREAD -
25826967M CUP
M-100131 ML-402041 AND UP REF. #22 HAS EXTERNAL THREAD REF. #25 HAS INTERNAL THREADCUP
M-100131 ML-402041 AND UP REF. #22 HAS EXTERNAL THREAD REF. #25 HAS INTERNAL THREAD -
2235-8M0121336 FUEL FILTER
M-100130 ML-402040 AND BELOW REF. #22 HAS INTERNAL THREAD REF. #25 HAS EXTERNAL THREADFUEL FILTER
M-100130 ML-402040 AND BELOW REF. #22 HAS INTERNAL THREAD REF. #25 HAS EXTERNAL THREAD -
2335-826965T FILTER
M-100130 ML-402040 AND BELOW REF. #22 HAS INTERNAL THREAD REF. #25 HAS EXTERNAL THREADFILTER
M-100130 ML-402040 AND BELOW REF. #22 HAS INTERNAL THREAD REF. #25 HAS EXTERNAL THREAD -
2425-84957M O-RING
M-100130 ML-402040 AND BELOW REF. #22 HAS INTERNAL THREAD REF. #25 HAS EXTERNAL THREADO-RING
M-100130 ML-402040 AND BELOW REF. #22 HAS INTERNAL THREAD REF. #25 HAS EXTERNAL THREAD -
2511935M CUP
M-100130 ML-402040 AND BELOW REF. #22 HAS INTERNAL THREAD REF. #25 HAS EXTERNAL THREADCUP
M-100130 ML-402040 AND BELOW REF. #22 HAS INTERNAL THREAD REF. #25 HAS EXTERNAL THREAD -
26811260M BRACKETBRACKET
-
2711-82382M NUTNUT
-
2810-826957M BOLTBOLT
-
2954-811261M CLAMPCLAMP
-
3032-98976M HOSEHOSE
-
3154-82047M CLIPCLIP
-
3254-98974M CLIPCLIP
-
3332-82012M HOSEHOSE
-
34811258M BRACKETBRACKET
-
3556762 STA-STRAPSTA-STRAP
-
3610-811259M BOLTBOLT
-
3732-811256M HOSEHOSE
-
3832-82012M HOSEHOSE
-
3995604M CONNECTORCONNECTOR
-
4010-84058M BOLTBOLT
-
4125-97607M SEALSEAL
-
4254-811264M CLAMPCLAMP
-
4332-82012M HOSEHOSE
-
4432-82012M HOSEHOSE
-
-27-811233M POWERHEAD GASKET SETPOWERHEAD GASKET SET
