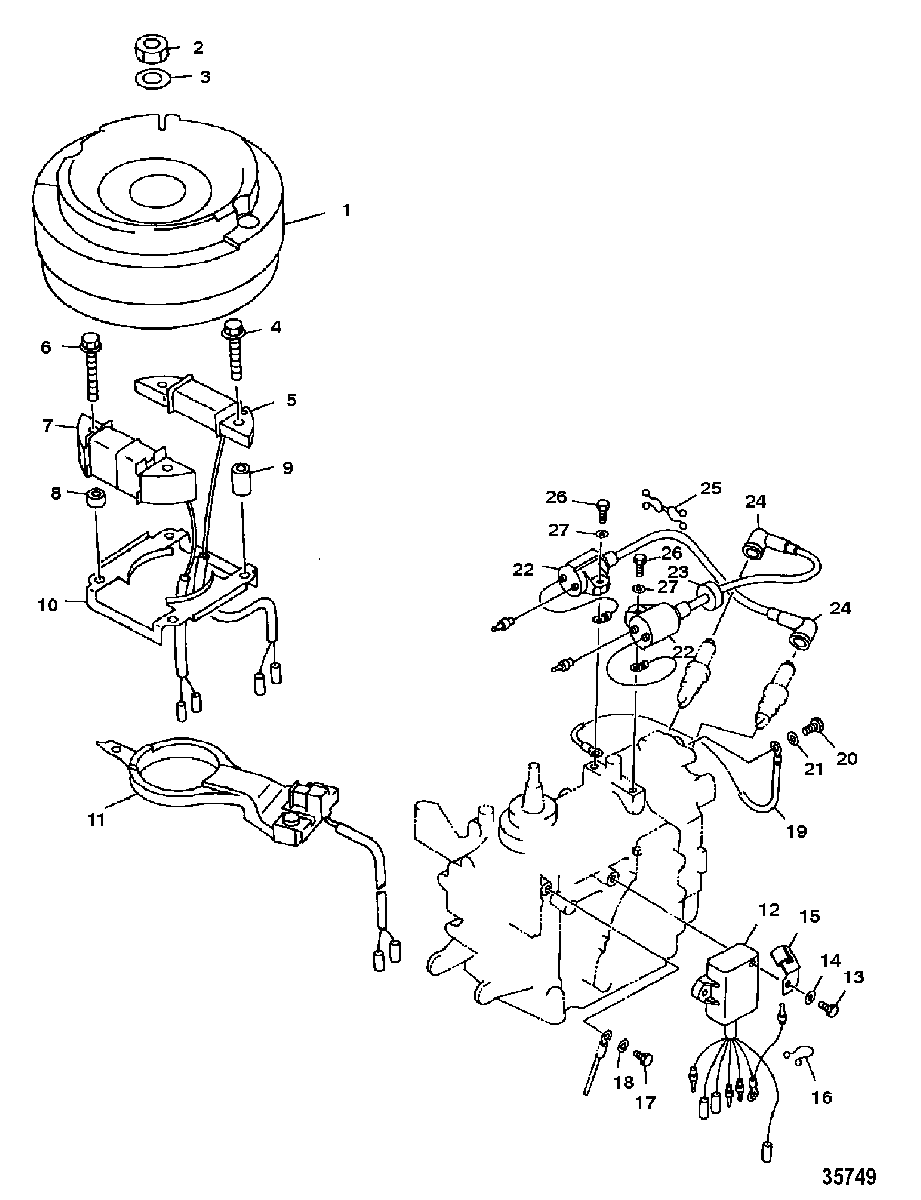

Electrical для Mariner - 15K 65G-200197 & Up
![](/wa-data/public/shop/sheme/mercury/jlkslfrf.png)
-
№АртикулНазвание
-
1253-852863 FLYWHEEL ASSEMBLYFLYWHEEL ASSEMBLY
-
211-81770M NUTNUT
-
312-81814M WASHERWASHER
-
410-852478 BOLTBOLT
-
5852865 COIL, ChargeCOIL, Charge
-
610-804506 BOLTBOLT
-
7804505 COIL, LightingCOIL, Lighting
-
823-852477 COLLARCOLLAR
-
923-8528149 COLLARCOLLAR
-
10852866 RETAINERRETAINER
-
11852864001 COIL, PulserCOIL, Pulser
-
128045011 CDI UNITCDI UNIT
-
1310-84058M BOLT, (M6 x 20)BOLT, (M6 x 20)
-
1412-82214M WASHERWASHER
-
15852765 BRACKETBRACKET
-
1654-15397M CLAMPCLAMP
-
1710-91772M BOLTBOLT
-
1812-82214M WASHERWASHER
-
1984-852774 CABLECABLE
-
2010-91772M BOLTBOLT
-
2112-82214M WASHERWASHER
-
22951881 COIL, IgnitionCOIL, Ignition
-
2325-82069M GROMMETGROMMET
-
2485-63709A1 BOOT/TERMINAL KITBOOT/TERMINAL KIT
-
2554-97079M CLAMPCLAMP
-
2610-852776 BOLTBOLT
-
2712-82214M WASHERWASHER
