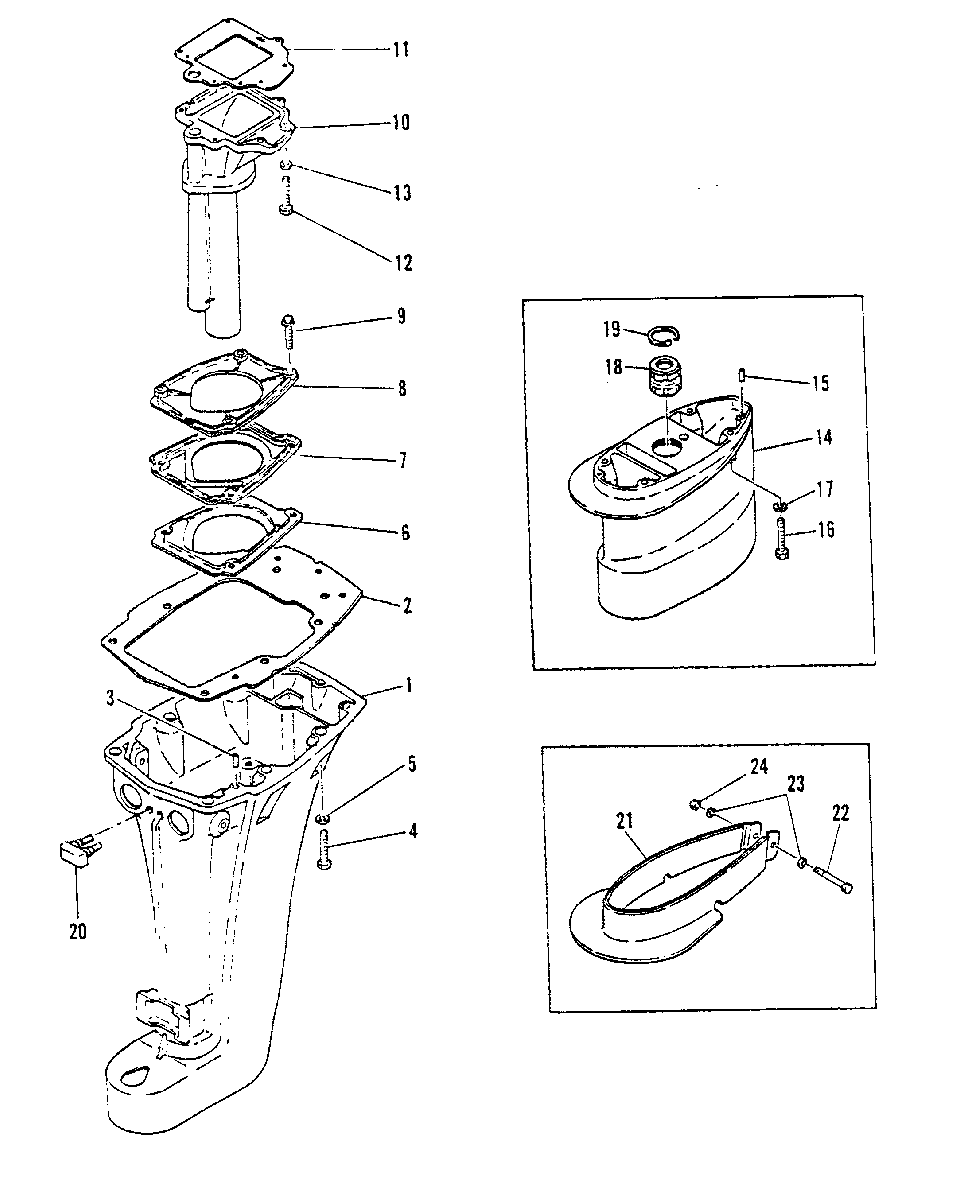

DRIVESHAFT HOUSING для Mariner - 15C ML-684-300101 AND UP

  • №
    Артикул
    Название
  • 1
    1587-811276M DRIVE SHAFT HOUSING (SHORT)
    (M-013276 ML-312686 E-250806 EL-551256 & Up)
    DRIVE SHAFT HOUSING (SHORT)
    (M-013276 ML-312686 E-250806 EL-551256 & Up)
  • 1
    1587-811277M DRIVE SHAFT HOUSING (LONG)
    (M-013276 ML-312686 E-250806 EL-551256 & Up)
    DRIVE SHAFT HOUSING (LONG)
    (M-013276 ML-312686 E-250806 EL-551256 & Up)
  • 1
    1587-8027M DRIVE SHAFT HOUSING (SHORT)
    (M-003606-013275 ML-304891-312685 E-250461-250805 EL-550801-551255)
    DRIVE SHAFT HOUSING (SHORT)
    (M-003606-013275 ML-304891-312685 E-250461-250805 EL-550801-551255)
  • 1
    1587-7144M DRIVE DRIVE SHAFT HOUSING (SHORT)
    (M-003605 ML-304890 E-250406 EL-55080 & Below)
    DRIVE DRIVE SHAFT HOUSING (SHORT)
    (M-003605 ML-304890 E-250406 EL-55080 & Below)
  • 1
    1587-8028M DRIVE SHAFT HOUSING (LONG)
    (M-013275 ML-312685 E-250805 EL-551255 & Below)
    DRIVE SHAFT HOUSING (LONG)
    (M-013275 ML-312685 E-250805 EL-551255 & Below)
  • 2
    27-96618 GASKET
    GASKET
  • 3
    17-82364M DOWEL PIN
    DOWEL PIN
  • 4
    10-97749M BOLT
    BOLT
  • 5
    12-82217M WASHER
    WASHER
  • 6
    810453M PLATE
    PLATE
  • 7
    84041M SEAL
    SEAL
  • 8
    83953M SEAL PROTECTOR
    SEAL PROTECTOR
  • 9
    10-82476M BOLT
    BOLT
  • 10
    810454M EXHAUST MANIFOLD
    (M-020026 ML-316416 E-251061 EL-551616 & Up)
    EXHAUST MANIFOLD
    (M-020026 ML-316416 E-251061 EL-551616 & Up)
  • 10
    83954M EXHAUST MANIFOLD
    (M-020025 ML-316415 E-251060 EL-551615 & Below)
    EXHAUST MANIFOLD
    (M-020025 ML-316415 E-251060 EL-551615 & Below)
  • 11
    27-83955M GASKET
    GASKET
  • 12
    10-84058M BOLT
    BOLT
  • 13
    12-82214M WASHER
    WASHER
  • 14
    84042M EXTENSION - SUPER LONG SHAFT
    EXTENSION - SUPER LONG SHAFT
  • 15
    17-82364M DOWEL PIN - SUPER LONG SHAFT
    DOWEL PIN - SUPER LONG SHAFT
  • 16
    10-82442M BOLT - SUPER LONG SHAFT
    BOLT - SUPER LONG SHAFT
  • 17
    12-82217M WASHER - SUPER LONG SHAFT
    WASHER - SUPER LONG SHAFT
  • 18
    23-815011M BUSHING - SUPER LONG SHAFT
    BUSHING - SUPER LONG SHAFT
  • 19
    53-83758M SNAP RING - SUPER LONG SHAFT
    SNAP RING - SUPER LONG SHAFT
  • 20
    94621M STOPPER
    STOPPER
  • 21
    84269M SPLASH PLATE - LONG SHAFT
    SPLASH PLATE - LONG SHAFT
  • 22
    10-827043M BOLT - LONG SHAFT
    BOLT - LONG SHAFT
  • 23
    12-82214M WASHER - LONG SHAFT
    WASHER - LONG SHAFT
  • 24
    11-82390M NUT - LONG SHAFT
    NUT - LONG SHAFT
  • -
    27-96604M ENGINE GASKET SET
    (M-062458, ML-336233, E-252703, EL-553588, & BELOW)
    ENGINE GASKET SET
    (M-062458, ML-336233, E-252703, EL-553588, & BELOW)
  • -
    27-18938M ENGINE GASKET SET
    (M-062459, ML-336234, E-252704, EL-553589 & UP)
    ENGINE GASKET SET
    (M-062459, ML-336234, E-252704, EL-553589 & UP)
  • -
    27-84123M LOWER UNIT GASKET SET
    LOWER UNIT GASKET SET
