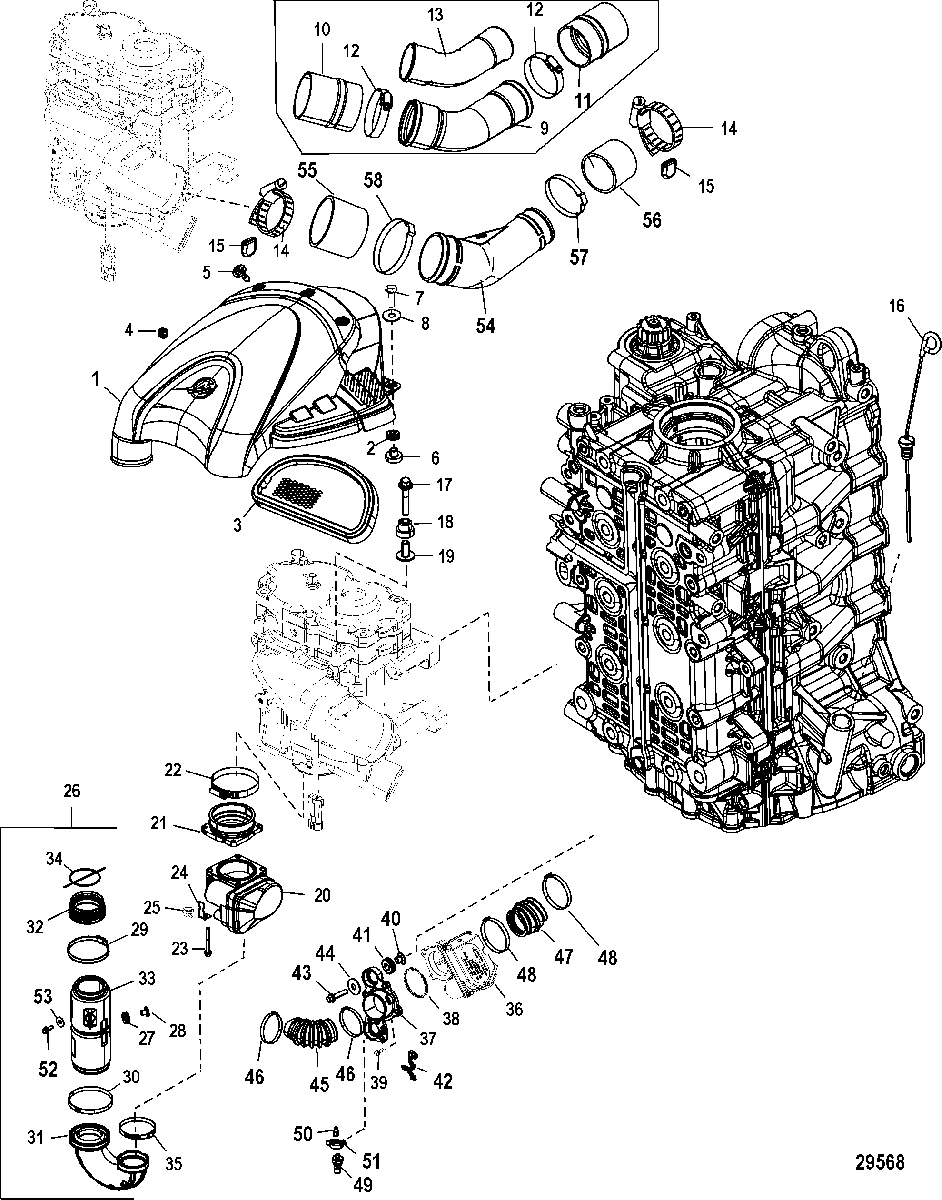

Induction Components для Mariner - 150 VERADO (4-STROKE)(4 CYL.) 0P464488 THRU 0P514868

  • №
    Артикул
    Название
  • 1
    896246A04 INTAKE ASSEMBLY, Upper
    INTAKE ASSEMBLY, Upper
  • 2
    25-8349851 GROMMET
    GROMMET
  • 3
    35-896247 FILTER
    FILTER
  • 4
    25-20116 GROMMET, Fuel Vent Hose
    GROMMET, Fuel Vent Hose
  • 5
    10-897703 SCREW
    SCREW
  • 6
    23-826618 BUSHING
    BUSHING
  • 7
    10-40011129 SCREW, (M6 x 25) Stainless Steel
    SCREW, (M6 x 25) Stainless Steel
  • 8
    12-65567 WASHER, (.265 x .750 x .048) Stainless Steel
    WASHER, (.265 x .750 x .048) Stainless Steel
  • 9
    8M0035481 TUBE OUTLET ASSEMBLY
    (Design I Metal Tube)
    TUBE OUTLET ASSEMBLY
    (Design I Metal Tube)
  • 10
    8M0035481 HOSE, (65 Inside Diameter)
    (Design I - Use with Metal Tube)
    HOSE, (65 Inside Diameter)
    (Design I - Use with Metal Tube)
  • 11
    8M0035481 HOSE, (60 Inside Diameter)
    (Design I - Use with Metal Tube)
    HOSE, (60 Inside Diameter)
    (Design I - Use with Metal Tube)
  • 12
    54-893342 CLAMP
    (Design I - Use with Metal Tube)
    CLAMP
    (Design I - Use with Metal Tube)
  • 13
    8M0035481 HOSE SLEEVE
    (Design I - Use with Metal Tube)
    HOSE SLEEVE
    (Design I - Use with Metal Tube)
  • 14
    54-893342 CLAMP
    CLAMP
  • 15
    19-8M0074364 COVER, Hose Clamp End
    COVER, Hose Clamp End
  • 16
    898022 DIPSTICK, Oil
    DIPSTICK, Oil
  • 17
    10-8M0103808 SCREW, (M6 x 30 MM) Stainless Steel
    SCREW, (M6 x 30 MM) Stainless Steel
  • 18
    25-813644002 GROMMET
    GROMMET
  • 19
    23-898445 BUSHING
    BUSHING
  • 20
    892949T02 CONTROL ASSEMBLY, Throttle - Electronic
    CONTROL ASSEMBLY, Throttle - Electronic
  • 21
    892950T02 ISOLATOR
    ISOLATOR
  • 22
    54-815504244 CLAMP, Worm Gear
    CLAMP, Worm Gear
  • 23
    10-88552550 SCREW, (M6 x 50 MM) Stainless Steel
    SCREW, (M6 x 50 MM) Stainless Steel
  • 24
    884353 BRACKET
    BRACKET
  • 25
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 26
    892383T51 INTAKE ASSEMBLY, Lower
    INTAKE ASSEMBLY, Lower
  • 27
    25-8349851 GROMMET
    GROMMET
  • 28
    23-856954 BUSHING
    BUSHING
  • 29
    54-888988026 CLAMP
    CLAMP
  • 30
    54-888988027 CLAMP
    CLAMP
  • 31
    892383T51 DUCT, Inlet
    DUCT, Inlet
  • 32
    896244 COUPLER
    COUPLER
  • 33
    NSS NOT SOLD SEPARATE, Resonator
    NOT SOLD SEPARATE, Resonator
  • 34
    24-896532 SPRING
    SPRING
  • 35
    54-889691 CLAMP, Oetiker
    CLAMP, Oetiker
  • 36
    884408A08 VALVE KIT, Control - Electric Boost
    VALVE KIT, Control - Electric Boost
  • 37
    887939007 PLATE, Boost Valve Mounting
    PLATE, Boost Valve Mounting
  • 38
    25-892079 O-RING
    O-RING
  • 39
    10-8M0103806 SCREW, (M6 x 20 MM) Stainless Steel
    SCREW, (M6 x 20 MM) Stainless Steel
  • 40
    23-8502341 BUSHING
    BUSHING
  • 41
    25-833155 GROMMET
    GROMMET
  • 42
    54-859376 CLIP
    CLIP
  • 43
    10-8M0103814 SCREW, (M8 x 35 MM)
    SCREW, (M8 x 35 MM)
  • 44
    12-817274 WASHER, (.344 x 1.00 x .063) Stainless Steel
    WASHER, (.344 x 1.00 x .063) Stainless Steel
  • 45
    32-892947001 HOSE
    HOSE
  • 46
    54-888988002 CLAMP, (57.5 mm), Front Electronic Boost Control
    CLAMP, (57.5 mm), Front Electronic Boost Control
  • 47
    32-887938003 TUBE, Rear
    TUBE, Rear
  • 48
    54-888988004 CLAMP, (62.0 mm), Rear Electronic Boost Control
    CLAMP, (62.0 mm), Rear Electronic Boost Control
  • 49
    881879T25 SENSOR ASSEMBLY, Pitot
    SENSOR ASSEMBLY, Pitot
  • 50
    22-892403 FITTING
    FITTING
  • 51
    54-883066 CLIP, (.865)
    CLIP, (.865)
  • 52
    10-8M0103807 SCREW, (M6 x 25 MM) Stainless Steel
    SCREW, (M6 x 25 MM) Stainless Steel
  • 53
    12-65567 WASHER, (.265 x .750 x .048) Stainless Steel
    WASHER, (.265 x .750 x .048) Stainless Steel
  • 54
    8M0035481 TUBE ASSEMBLY, Hot Air Duct
    (Design II Plastic Tube)
    TUBE ASSEMBLY, Hot Air Duct
    (Design II Plastic Tube)
  • 55
    32-896271 HOSE
    (Design II - Use with Plastic Tube)
    HOSE
    (Design II - Use with Plastic Tube)
  • 56
    32-896259 HOSE
    (Design II - Use with Plastic Tube)
    HOSE
    (Design II - Use with Plastic Tube)
  • 57
    54-888988021 CLAMP, Oetiker
    (Design II - Use with Plastic Tube)
    CLAMP, Oetiker
    (Design II - Use with Plastic Tube)
  • 58
    54-888988020 CLAMP, Oetiker
    (Design II - Use with Plastic Tube)
    CLAMP, Oetiker
    (Design II - Use with Plastic Tube)
