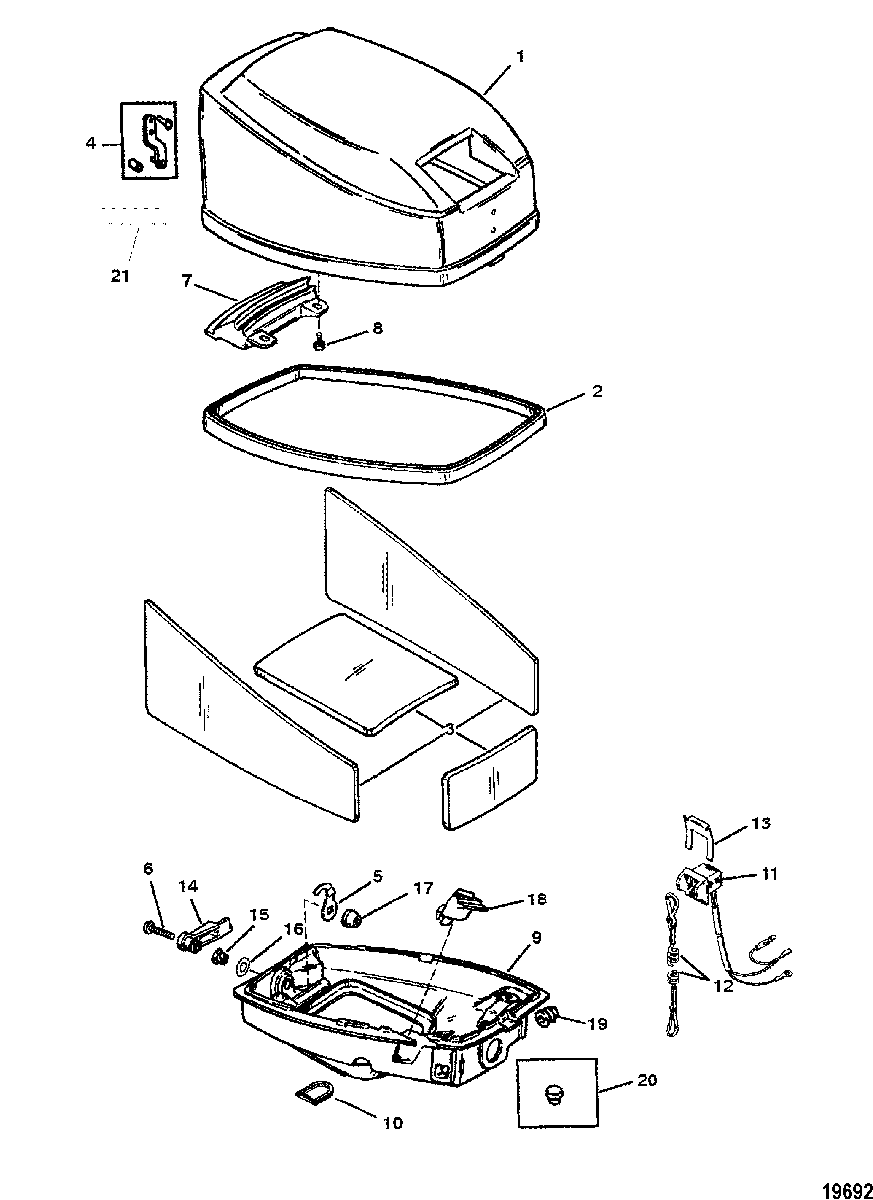

Cowls для Mariner - 15 9792200 THRU 0P016999

  • №
    Артикул
    Название
  • 1
    2191-9420T10 TOP COWL ASSEMBLY
    (BLACK)
    TOP COWL ASSEMBLY
    (BLACK)
  • 1
    2191-8M0094069 TOP COWL ASSEMBLY
    (SILVER)
    TOP COWL ASSEMBLY
    (SILVER)
  • 1
    2191-8M0094069 TOP COWL ASSEMBLY
    (GRAPHITE GRAY)
    TOP COWL ASSEMBLY
    (GRAPHITE GRAY)
  • 2
    8M0043151 SEAL
    SEAL
  • 3
    13691A02 SOUND BLANKET KIT
    SOUND BLANKET KIT
  • 4
    817104A3 LATCH ASSEMBLY, Cowl
    LATCH ASSEMBLY, Cowl
  • 5
    180402 LATCH HOOK
    LATCH HOOK
  • 6
    10-852530 SCREW, (.250-20 x 1.50)
    SCREW, (.250-20 x 1.50)
  • 7
    12873T SHIELD
    SHIELD
  • 8
    10-400018 SCREW, (M5 x 12)
    SCREW, (M5 x 12)
  • 9
    2192-9204A1 BOTTOM COWL
    (BLACK)
    BOTTOM COWL
    (BLACK)
  • 9
    2192-9204A2 BOTTOM COWL
    (GRAY)
    BOTTOM COWL
    (GRAY)
  • 9
    2192-9204A7 BOTTOM COWL
    (TRACKER GRAPHITE GRAY)
    BOTTOM COWL
    (TRACKER GRAPHITE GRAY)
  • 10
    15061001 PLUG
    PLUG
  • 11
    87-11083A6 SWITCH ASSEMBLY, Stop
    SWITCH ASSEMBLY, Stop
  • 12
    8M0092850 LANYARD ASSEMBLY
    LANYARD ASSEMBLY
  • 13
    8M0032846 RETAINER, Brass
    RETAINER, Brass
  • 14
    44461A1 LEVER, Cowl Latch
    LEVER, Cowl Latch
  • 15
    23-76470 BUSHING
    BUSHING
  • 16
    13-69708 WAVE WASHER
    WAVE WASHER
  • 17
    11394 SPACER
    SPACER
  • 18
    12154 PLUG
    (TILLER)
    PLUG
    (TILLER)
  • 18
    121532 GROMMET, Bottom Cowl
    (REMOTE CONTROL)
    GROMMET, Bottom Cowl
    (REMOTE CONTROL)
  • 19
    25-12602002 GROMMET
    (TILLER) (OLD DESIGN)
    GROMMET
    (TILLER) (OLD DESIGN)
  • 20
    25-19564001 GROMMET
    (REMOTE CONTROL)
    GROMMET
    (REMOTE CONTROL)
  • 21
    37-855577A3 DECAL, EPA Label Information (INSIDE REAR TOP COWL)
    (6/8)(1998)
    DECAL, EPA Label Information (INSIDE REAR TOP COWL)
    (6/8)(1998)
  • 21
    37-855577A4 DECAL, EPA Label Information (INSIDE REAR TOP COWL)
    (9.9/15)(1998)
    DECAL, EPA Label Information (INSIDE REAR TOP COWL)
    (9.9/15)(1998)
