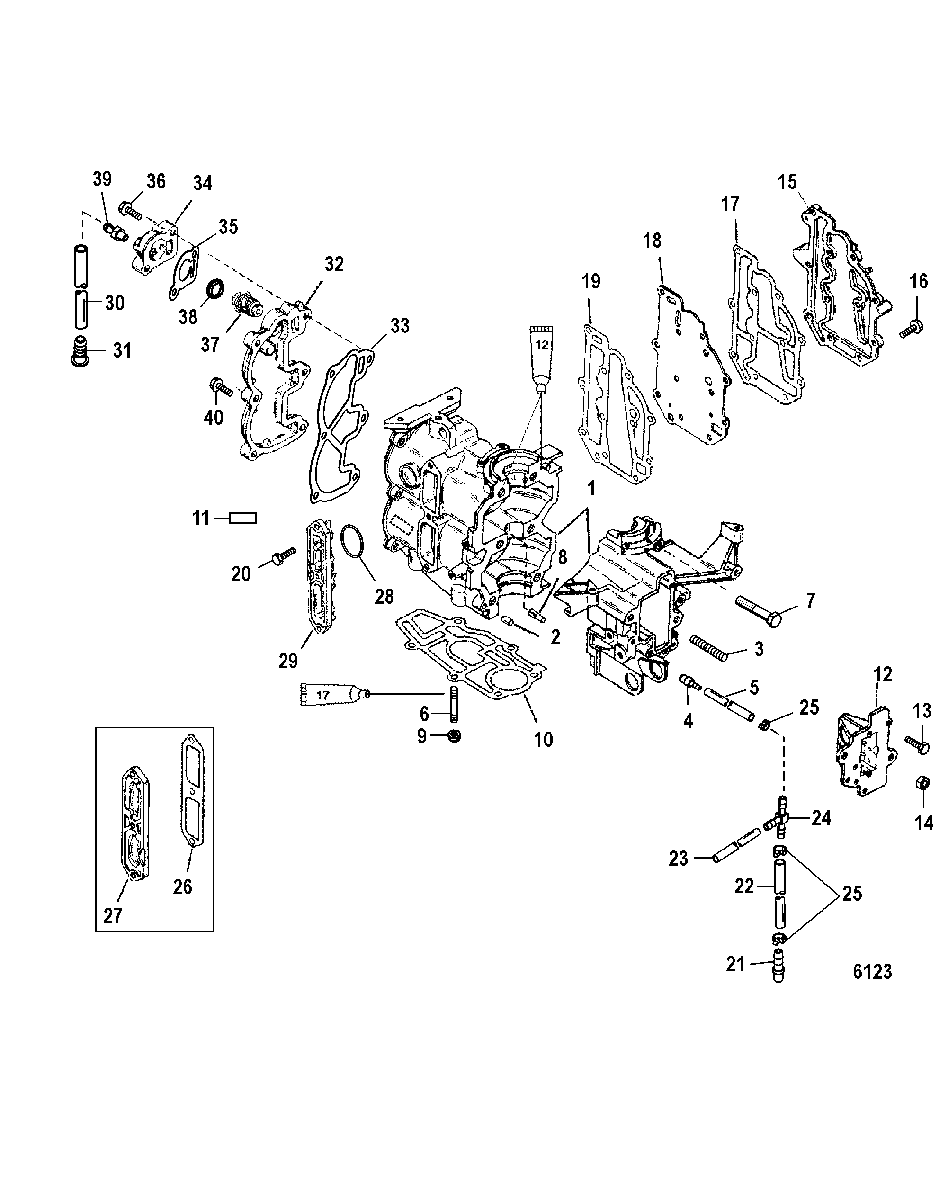

Cylinder Block and Covers для Mariner - 15 1B000001 & Up

№

Артикул

Название
1

875-8473T21 CYLINDER BLOCK
(8)

CYLINDER BLOCK
(8)

61 170 ₽
1

881-9727T12 CYLINDER BLOCK
(9.9/15)

CYLINDER BLOCK
(9.9/15)

64 000 ₽
2

17-85171 PIN, Dowel

PIN, Dowel

280 ₽
3

16-424632 STUD, (M8 x 37.1)

STUD, (M8 x 37.1)

880 ₽
4

21-426982 CHECK VALVE

CHECK VALVE

1 340 ₽
5

32-892024122 TUBING, (240.00 Inches Bulk) (Cut to 2.50 Inch Length)

TUBING, (240.00 Inches Bulk) (Cut to 2.50 Inch Length)

4 230 ₽
6

16-8161949 STUD

STUD

810 ₽
7

10-421251 SCREW, (M8 x 55)

SCREW, (M8 x 55)

340 ₽
8

17-17866 PIN, Groove
(9.9/15)

PIN, Groove
(9.9/15)

270 ₽
9

11-401386 NUT, (M6) Stainless Steel

NUT, (M6) Stainless Steel

330 ₽
10

27-191861 GASKET, Powerhead

GASKET, Powerhead

1 590 ₽
11

NSS NOT SOLD SEPARATE, Decal-Serialization

NOT SOLD SEPARATE, Decal-Serialization

0 ₽
12

828435A3 REED BLOCK

REED BLOCK

13 570 ₽
13

10-4000171 SCREW, (M6 x 16)

SCREW, (M6 x 16)

100 ₽
14

11-400213 NUT, (M8) Stainless Steel

NUT, (M8) Stainless Steel

180 ₽
15

8M0048005 COVER, Exhaust

COVER, Exhaust

6 030 ₽
16

10-40062129 SCREW, (M6 x 25)

SCREW, (M6 x 25)

70 ₽
17

27-19185 GASKET

GASKET

590 ₽
18

42365 PLATE, Baffle

PLATE, Baffle

3 410 ₽
19

27-19184 GASKET

GASKET

590 ₽
20

10-40062129 SCREW, (M6 x 25)

SCREW, (M6 x 25)

70 ₽
21

22-56759 FITTING, Barbed

FITTING, Barbed

710 ₽
22

32-892024122 TUBING, (240.00 Inches Bulk) (Cut to 7.00 Inch Length)

TUBING, (240.00 Inches Bulk) (Cut to 7.00 Inch Length)

4 230 ₽
23

32-892024122 TUBING, (240.00 Inches Bulk) (Cut to 5.25 Inch Length)

TUBING, (240.00 Inches Bulk) (Cut to 5.25 Inch Length)

4 230 ₽
24

22-59169003 FITTING, Tee

FITTING, Tee

870 ₽
25

54-816311T TIE STRAP, (8.00 Inches)

TIE STRAP, (8.00 Inches)

40 ₽
26

27-192031 GASKET
(8)

GASKET
(8)

430 ₽
27

19107F1 COVER, Intake
(8)

COVER, Intake
(8)

5 120 ₽
28

25-891935 O-RING
(9.9/15)

O-RING
(9.9/15)

190 ₽
29

8M0036812 COVER, Intake
(9.9/15)

COVER, Intake
(9.9/15)

1 330 ₽
30

32-8M0108355 HOSE, (57.00 Inches Bulk), Tell Tale (Cut to 6.00 Inch Length)

HOSE, (57.00 Inches Bulk), Tell Tale (Cut to 6.00 Inch Length)

5 260 ₽
31

22-94848 FITTING

FITTING

320 ₽
32

1033-8906A02 COVER ASSEMBLY

COVER ASSEMBLY

23 220 ₽
33

27-19207002 GASKET

GASKET

1 270 ₽
34

8M0039352 COVER, Thermostat

COVER, Thermostat

18 660 ₽
35

27-19205002 GASKET

GASKET

390 ₽
36

10-40062129 SCREW, (M6 x 25)

SCREW, (M6 x 25)

70 ₽
37

14586 THERMOSTAT (120 Degrees)

THERMOSTAT (120 Degrees)

6 280 ₽
38

27-62386001 GASKET

GASKET

350 ₽
39

22-291112 FITTING

FITTING

630 ₽
40

10-40062129 SCREW, (M6 x 25)

SCREW, (M6 x 25)

70 ₽
-

27-42364A92 GASKET SET, Engine

GASKET SET, Engine

6 510 ₽
-

811686T97 POWERHEAD ASSEMBLY
(8)

POWERHEAD ASSEMBLY
(8)

145 480 ₽
-

19072T97 POWERHEAD ASSEMBLY
(9.9/15)

POWERHEAD ASSEMBLY
(9.9/15)

404 050 ₽
-

10-4000328 SCREW, (M6 x 16)
(Electric)

SCREW, (M6 x 16)
(Electric)

270 ₽
