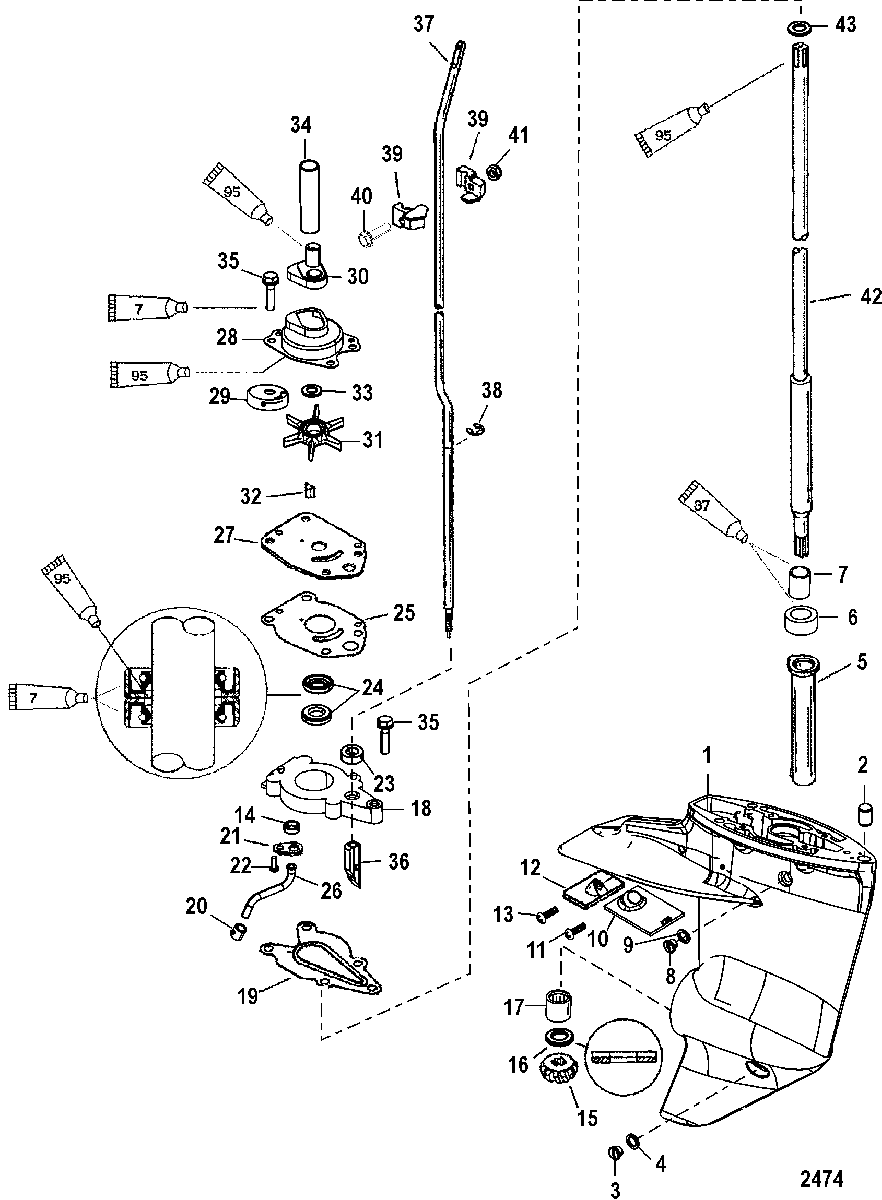

Gear Housing(Driveshaft)(2.00:1 Gear Ratio) для Mariner - 15 0T980000 THRU 0T999999
-
№АртикулНазвание
-
-1666-8833T13 GEAR HOUSING ASSEMBLY
(Black-Short)GEAR HOUSING ASSEMBLY
(Black-Short) -
-1666-8833T15 GEAR HOUSING ASSEMBLY
(Black-Long)GEAR HOUSING ASSEMBLY
(Black-Long) -
11600-8M0083312 GEAR HOUSING ASSEMBLY, Basic-Black
(Black-Basic)GEAR HOUSING ASSEMBLY, Basic-Black
(Black-Basic) -
223-12009 BUSHING, (.31 x .45 x .50)BUSHING, (.31 x .45 x .50)
-
310-79953Q04 SCREW KIT, (.375-16 x .250) DrainSCREW KIT, (.375-16 x .250) Drain
-
322-8M0058389 PLUG KIT, Drain (Magnetic)PLUG KIT, Drain (Magnetic)
-
412-191833 SEALSEAL
-
5822244A1 SLEEVE ASSEMBLYSLEEVE ASSEMBLY
-
623-823944 SLEEVESLEEVE
-
723-823943 BUSHINGBUSHING
-
810-79953Q04 SCREW KIT, (.375-16 x .250) DrainSCREW KIT, (.375-16 x .250) Drain
-
912-191833 SEALSEAL
-
1035-421991 SCREENSCREEN
-
1110-13954 SCREW, (.250-14 x .88)SCREW, (.250-14 x .88)
-
1297-42121Q02 ANODE ASSEMBLYANODE ASSEMBLY
-
1310-13954 SCREW, (.250-14 x .88)SCREW, (.250-14 x .88)
-
1426-42133 SEALSEAL
-
1543-8219251 GEAR, Pinion - 13-26GEAR, Pinion - 13-26
-
1612-41369 WASHERWASHER
-
1731-22756 BEARING, RollerBEARING, Roller
-
1846-42040T5 BASE ASSEMBLY, Water PumpBASE ASSEMBLY, Water Pump
-
1927-192043 GASKETGASKET
-
2026-33613 SEALSEAL
-
2142375 RETAINERRETAINER
-
2210-48408 SCREW, (#10-16 x .500)SCREW, (#10-16 x .500)
-
2325-822236 QUAD RINGQUAD RING
-
2426-413651 SEAL, OilSEAL, Oil
-
2527-19202001 GASKETGASKET
-
2632-42185A1 TUBE ASSEMBLY, WaterTUBE ASSEMBLY, Water
-
2742200 FACE PLATEFACE PLATE
-
2846-42089A2 COVER ASSEMBLYCOVER ASSEMBLY
-
29NSS NOT SOLD SEPARATE, InsertNOT SOLD SEPARATE, Insert
-
3026-421021 SEALSEAL
-
3147-42038Q02 IMPELLERIMPELLER
-
3228-42376A2 KEY ASSEMBLYKEY ASSEMBLY
-
3312-16448 WASHERWASHER
-
34444671 GUIDEGUIDE
-
3510-82684430 SCREW, (M6 x 30)SCREW, (M6 x 30)
-
3642039 CAMCAM
-
378M0026064 SHIFT SHAFT
(Short)SHIFT SHAFT
(Short) -
378M0026065 SHIFT SHAFT
(Long)SHIFT SHAFT
(Long) -
3853-42389 E RINGE RING
-
398M0036770 GUIDEGUIDE
-
4010-40011109 SCREW, (M5 x 25) Stainless SteelSCREW, (M5 x 25) Stainless Steel
-
4111-401385 NUT, (M5) Stainless SteelNUT, (M5) Stainless Steel
-
4245-823389 DRIVESHAFT
(Short)DRIVESHAFT
(Short) -
4245-823390 DRIVESHAFT
(Long)DRIVESHAFT
(Long) -
4312-822248 THRUST WASHERTHRUST WASHER
-
-26-41365A3 SEAL KITSEAL KIT
-
-46-42089A5 PUMP KIT, WaterPUMP KIT, Water
-
-27-42364A92 GASKET SET, EngineGASKET SET, Engine
